Components And Components Location: Component

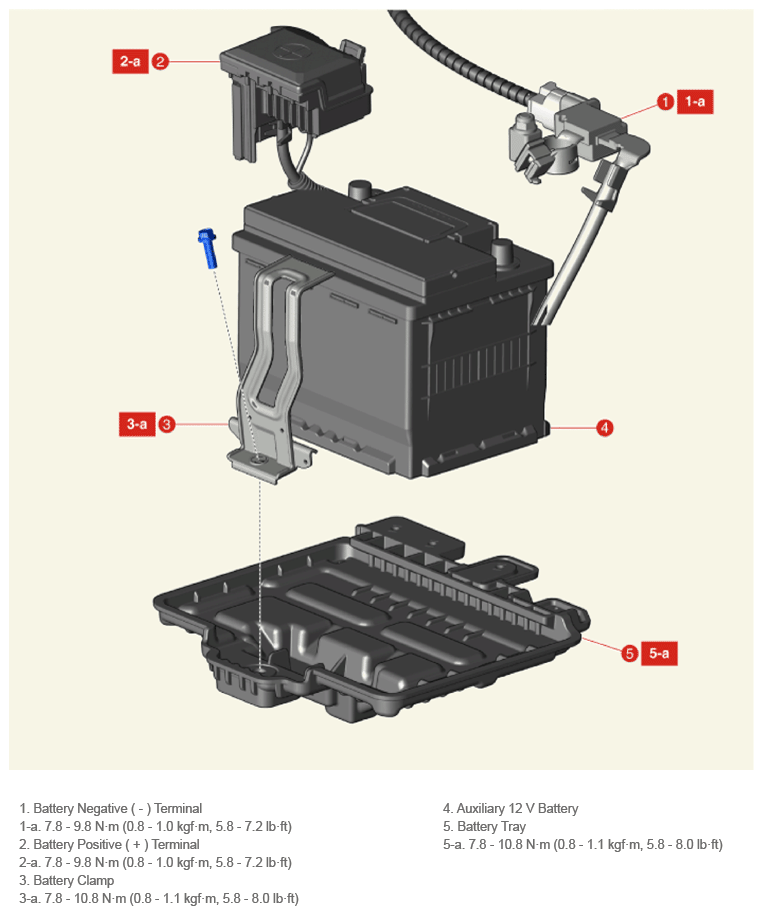

Fig 1: Auxiliary 12 V Battery Components Location With Torque Specification
G15902628Courtesy of KIA MOTORS AMERICA, INC.
