Components And Components Location: Component

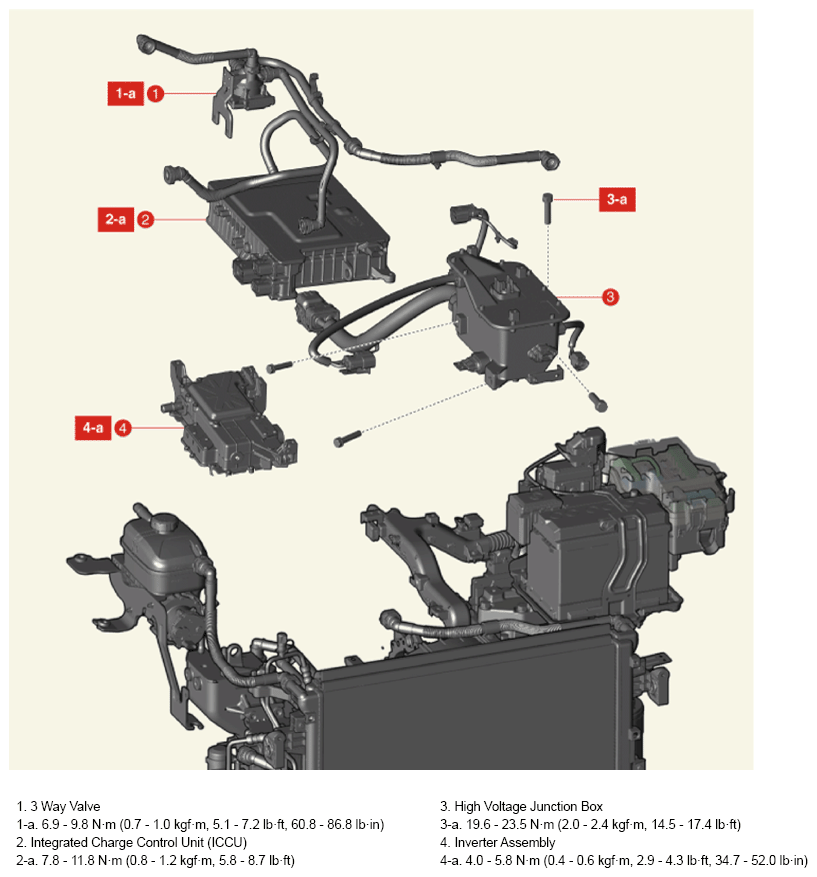

Fig 1: Inverter Components Location With Torque Specification
G15902614Courtesy of KIA MOTORS AMERICA, INC.
