Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
  3. Select "SCU Parking Application Test", "SCU Parking Canceling Test" in "Vehicle S/W management".
  4. After operation, perform the "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 8
G15894454Courtesy of KIA MOTORS AMERICA, INC.

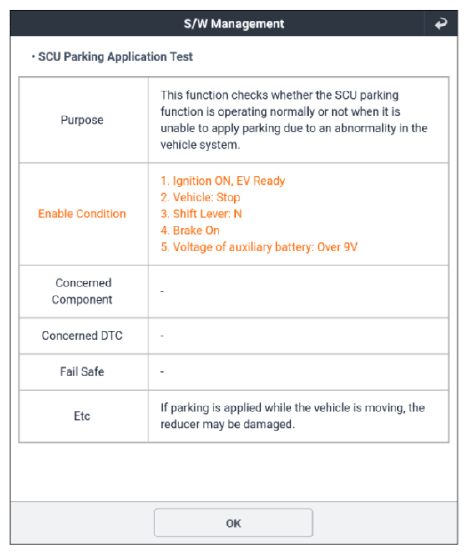

G15894455Courtesy of KIA MOTORS AMERICA, INC.

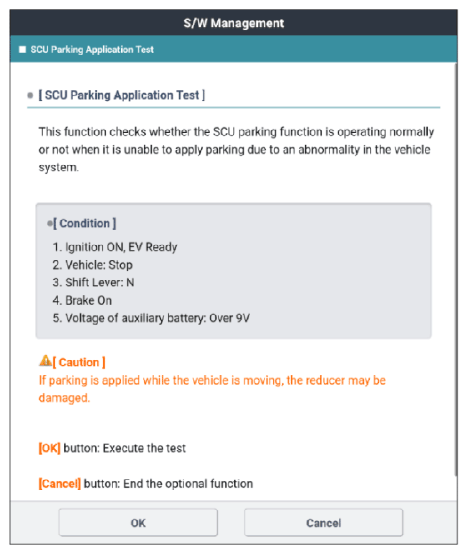

G15894456Courtesy of KIA MOTORS AMERICA, INC.
G15894457Courtesy of KIA MOTORS AMERICA, INC.

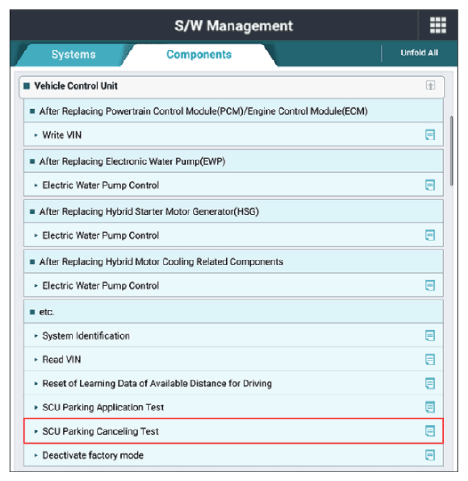

G15894458Courtesy of KIA MOTORS AMERICA, INC.

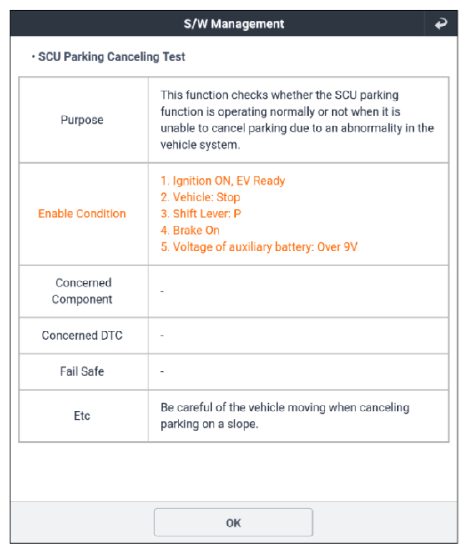

G15894459Courtesy of KIA MOTORS AMERICA, INC.

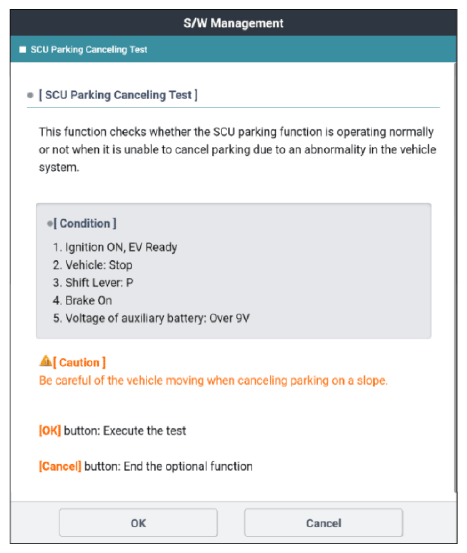

G15894460Courtesy of KIA MOTORS AMERICA, INC.

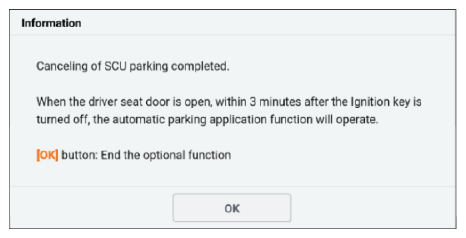

G15894461Courtesy of KIA MOTORS AMERICA, INC.
