Removal And Installation: Removal

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ". If not, it may cause serious accidents due to electric shock or short circuit.
When working on high voltage system, make sure to check the PERSONAL PROTECTIVE EQUIPMENT (PPE) and HIGH VOLTAGE SHUT-OFF PROCEDURES .

NOTE: Cover the connection with a clean cloth since the residual fuel may be released after "Release Residual Pressure in Fuel Line" procedures.

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

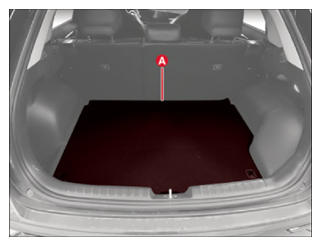

Remove the luggage covering board (A).

Courtesy of KIA MOTORS AMERICA, INC.

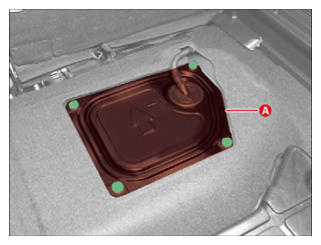

Remove the service cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

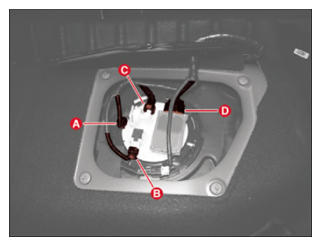

Disconnect the connectors
1. Fuel Pressure Sensor (FPS) connector
2. Fuel Tank Pressure Sensor (FTPS) connector
3. Fuel feed tube
4. Fuel Pump Control Module (FPCM) connector
Courtesy of KIA MOTORS AMERICA, INC.

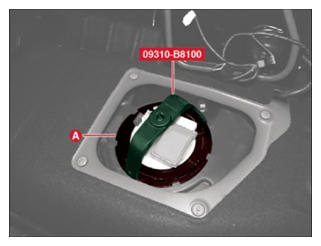

Remove the plate cover (A) by using SST (09310 - B8100).

Courtesy of KIA MOTORS AMERICA, INC.
