Component Inspection
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | |||
| Oscilloscope (MAFS) |
|

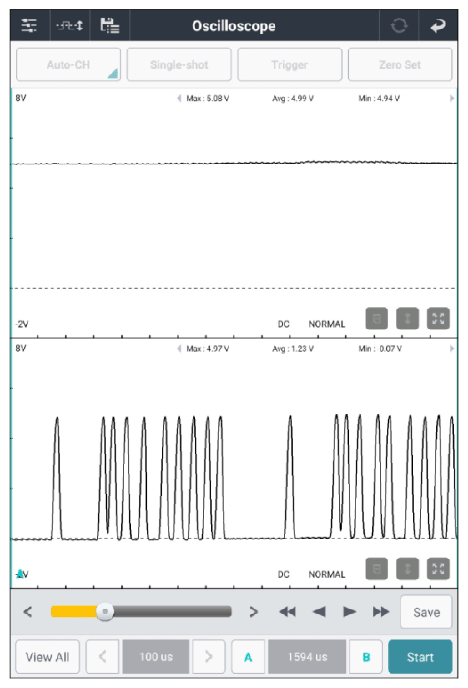

MAFS connector | 1 (power) | Chassis ground | - | Fig.1 below |
| MAFS connector | 3 (signal) | Chassis ground | - | |||
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do troubleshooting steps.
- If no problems were found with the circuits or connectors, replace the MAFS and Go to "VERIFICATION OF REPAIR " procedure.
