Component Inspection

Inspection Condition	Inspection Procedure	Reference

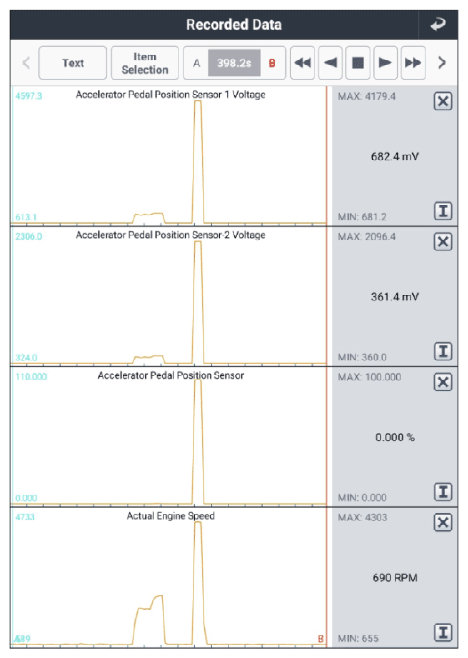

Engine "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in "Current Data" with KDS.	Fig.1 below

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do troubleshooting steps.
If no problems were found with the circuits or connectors, replace the APS and Go to "VERIFICATION OF REPAIR " procedure.
