Components And Components Location: Component

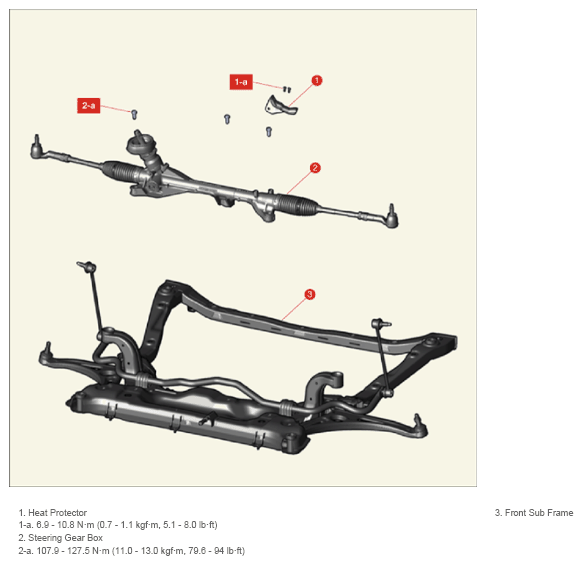

Fig 1: Steering Gear Box Components Location With Torque Specifications
G15788887Courtesy of KIA MOTORS AMERICA, INC.
