SAS Calibration

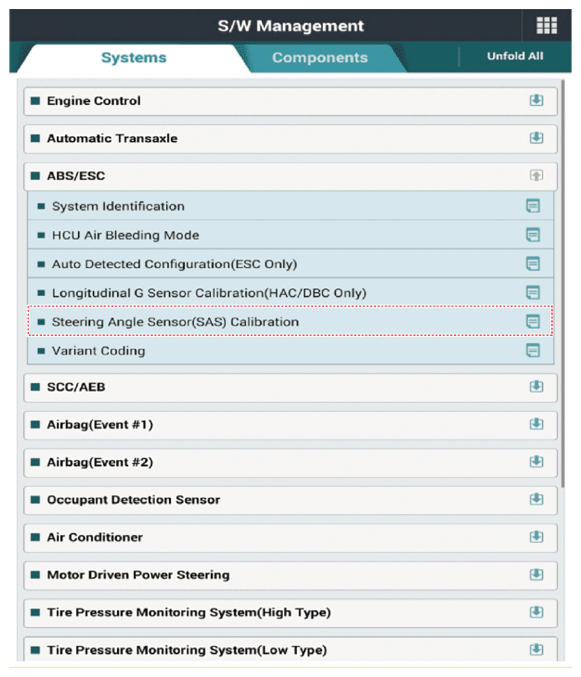

G14997168

Courtesy of KIA MOTORS AMERICA, INC.

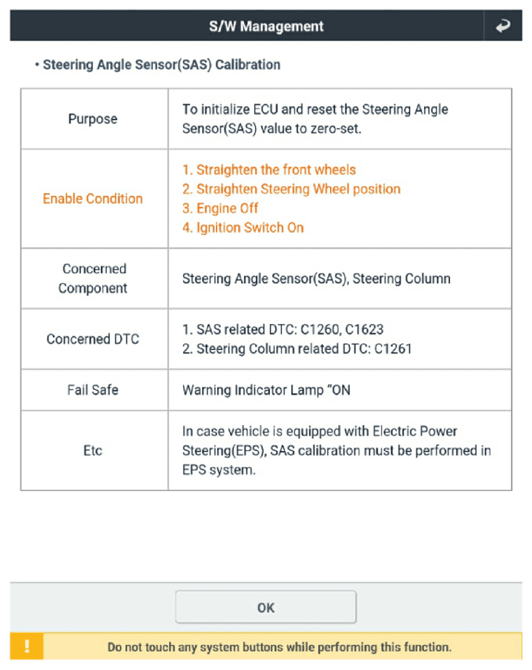

G14997169

Courtesy of KIA MOTORS AMERICA, INC.

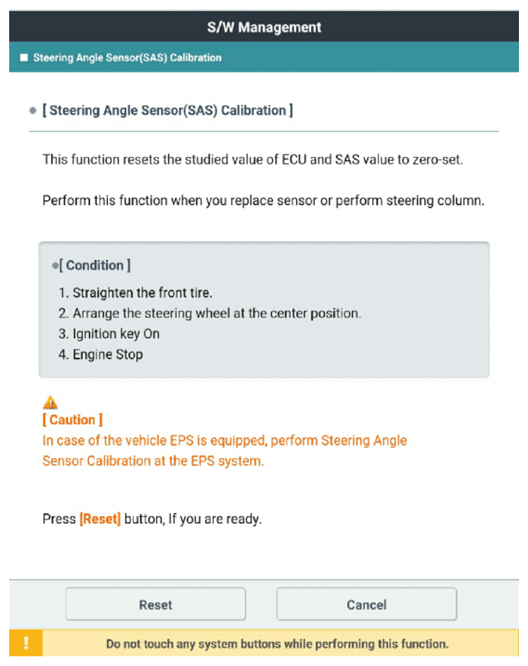

G14997170

Courtesy of KIA MOTORS AMERICA, INC.
