Repair Procedures: Removal

Front Heated Oxygen Sensor

1. Disconnect the battery negative (-) terminal.
2. Remove the engine cover.

   (Refer to Engine Mechanical System - "ENGINE COVER ")

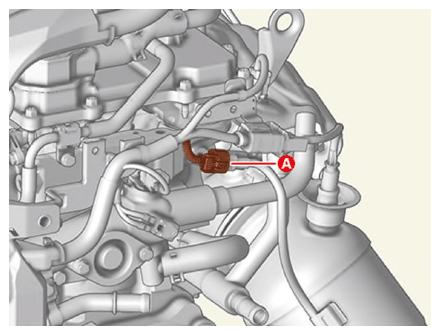

3. Disconnect the Heated Oxygen Sensor (HO2S) connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

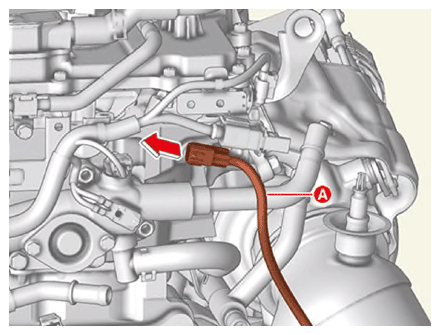

4. Remove the connector (A) from the bracket by pushing it in the direction of arrow.

   Courtesy of KIA MOTORS AMERICA, INC.

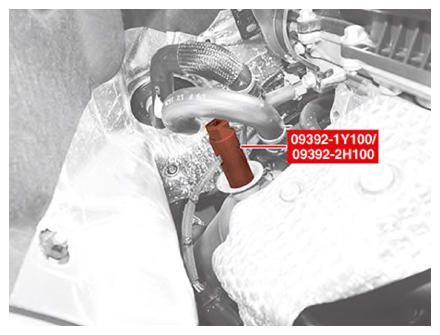

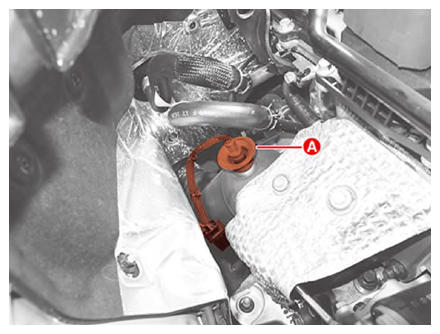

5. Remove the front HO2S (A) by using the SST (09392 - 1Y100 or 09392 - 2H100).

   Tightening torque:

   39.2 - 49.1 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Rear Heated Oxygen Sensor

1. Disconnect the battery negative (-) terminal.
2. Remove the engine cover.

   (Refer to Engine Mechanical System - "ENGINE COVER ")

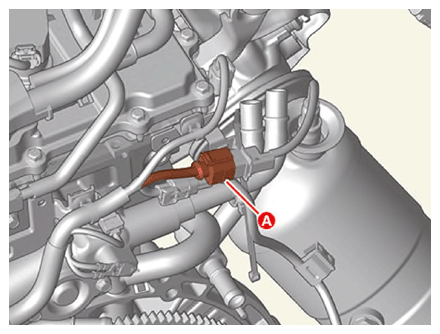

3. Disconnect the HO2S connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

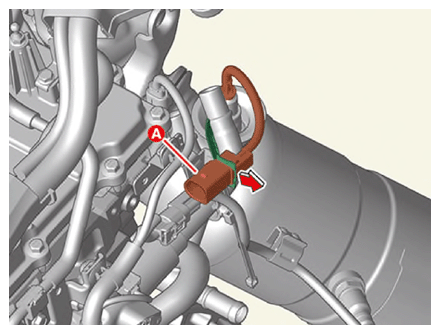

4. Remove the connector (A) from the bracket by pushing it in the direction of arrow.

   Courtesy of KIA MOTORS AMERICA, INC.

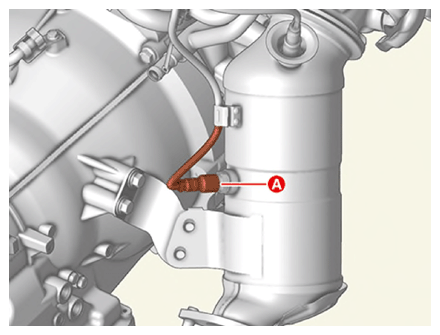

5. Remove the rear HO2S (A) by using the SST (09392 - 1Y100 or 09392 - 2H100).

   Tightening torque:

   39.2 - 49.1 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
