Removal & Installation: Removal

Disconnect the battery negative terminal.
Turn the steering wheel so that the front wheels are facing straight ahead.
Remove the driver airbag module.
(Refer to Restraint (Airbag (Event #1)) - "DRIVER AIRBAG (DAB) MODULE ")

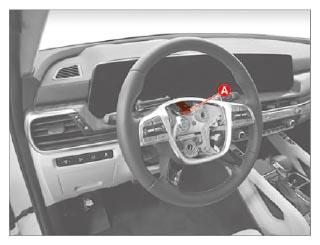

Disconnect the steering wheel connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

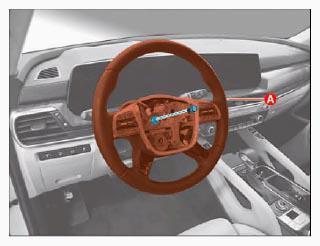

Remove the steering wheel (A) after removing the bolt.
Tightening torque:

44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb.ft)

G15709146

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

When removing the steering wheel, do not impact it by hammering as it may damage the steering column.
Do not reuse the steering lock bolt.

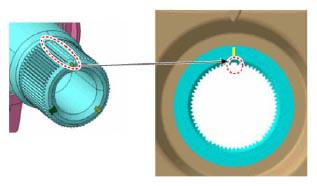

When assembling, match the gear teeth as the below illustration.

G15709147

Courtesy of KIA MOTORS AMERICA, INC.
