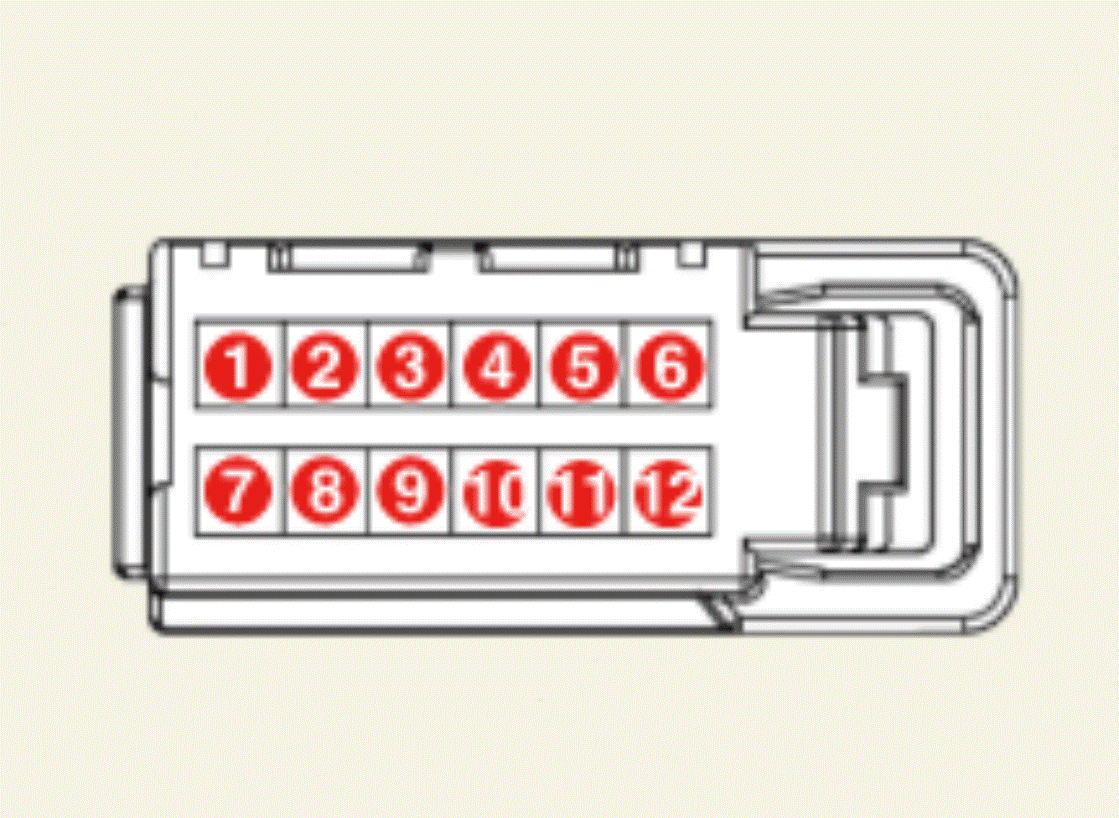

Connector And Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.
Pin	Function
1	Wireless charger indicator (Ground)
2	Wireless charging indicator (Green)
3	-
4	Ground
5	Illumination (+)
6	PCB Block (Fuse - ACC 4)
7	-
8	Wireless charging indicator (Amber)
9	-
10	Ground
11	Illumination (+)
12	PCB Block (Fuse - ACC 4)
