Removal And Installation: Removal

Remove the center pillar upper trim.
(Refer to Body - " CENTER PILLAR TRIM ")

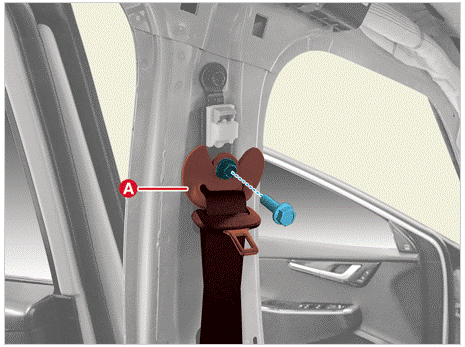

Remove the front seat belt (A) after removing the upper anchor bolt.
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

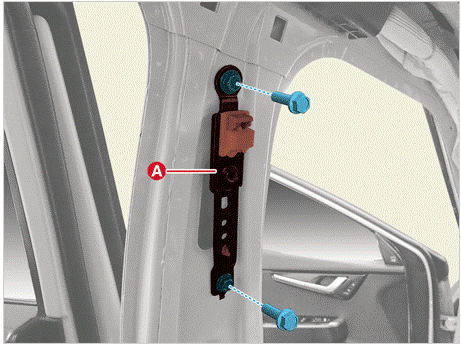

Remove the height adjust (A) after removing the bolts.
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
