Deployment Outside Of The Vehicle

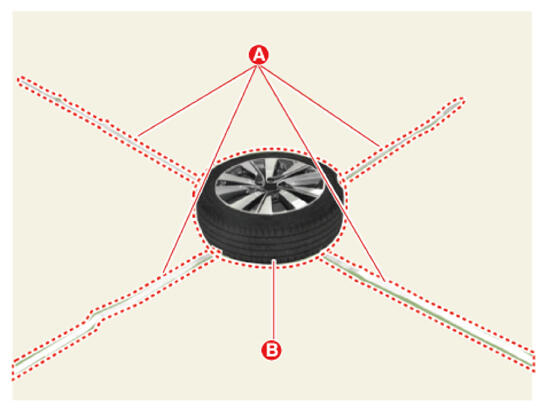

After spreading the rope (A) on the floor in a cross shape, put the tire (B) equipped with the wheel on the floor.

Courtesy of KIA MOTORS AMERICA, INC.

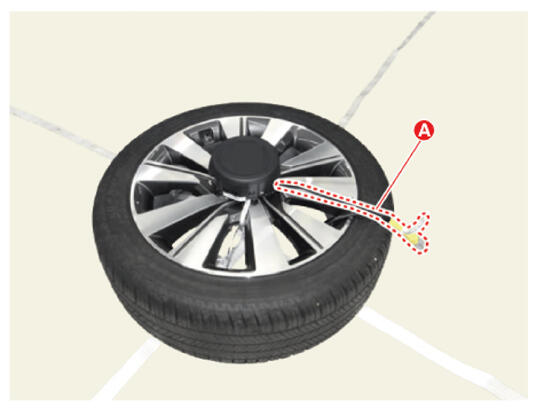

Connect the deployment adapter (A) (0K57A - 3U100A) to the airbag or pretensioner.

Courtesy of KIA MOTORS AMERICA, INC.

Information
- When using the deployment adapter, use it appropriately according to the deployment airbag.
  - DAB, PAB, CAB, BPT (0K57A - 3U100A)
  - SAB (0957A - 2W100)
  - KAB (0957A - 3F100)

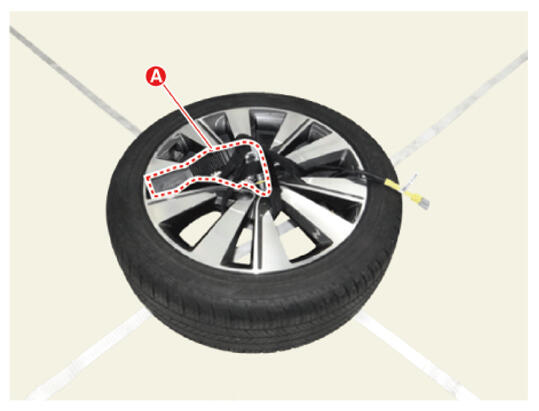

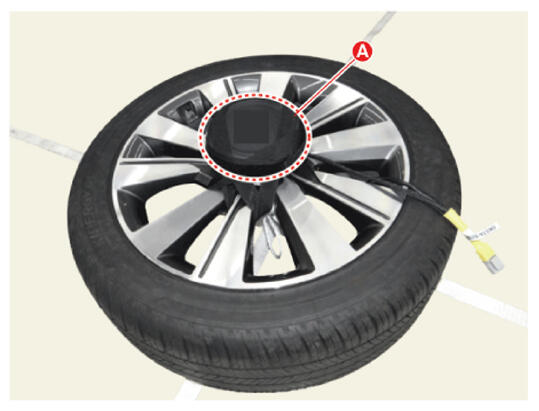

Fix the airbag or pretensioner (A) to the wheel.
[Airbag]

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: If the airbag deployment surface faces downward instead of upward, the airbag may spring up and cause serious injury to the worker.

[Pretensioner]

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Install the end of the piston tube of the anchor pretensioner, facing the floor.

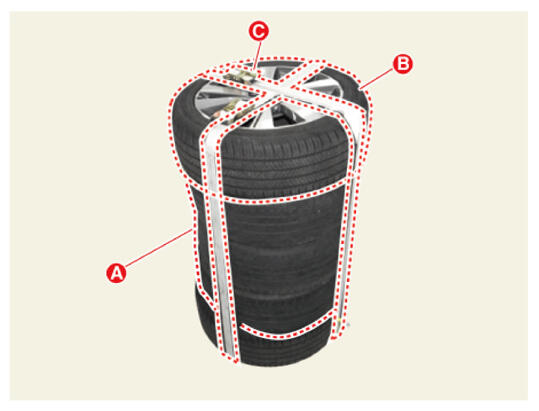

After putting the three waste tires (A), put the tire (B) with the wheel on it.
Fix the tire by using the ratchet strap (C).

Courtesy of KIA MOTORS AMERICA, INC.

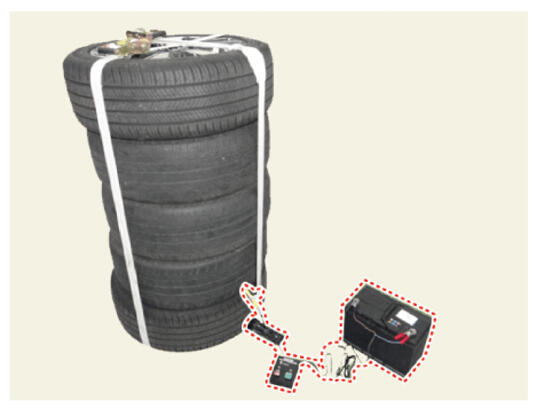

After connecting the battery, connect the airbag deployment tool (0957A - 34100A) to the deployment adapter.

Courtesy of KIA MOTORS AMERICA, INC.

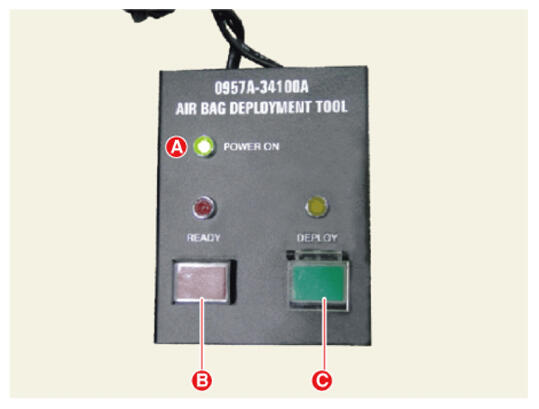

Activate the switch of the airbag deployment tool to deploy the airbag.

If the READY (2) button illuminates while pressing the READY (2) button, press DEPLOY (3) button to deploy the airbag.

Courtesy of KIA MOTORS AMERICA, INC.

Information

When the airbag is deployed, loud noise is generated, visually confirmed, and after rapid inflation, it contracts slowly.

Place the deployed airbag in a sturdy plastic bag and sealed securely, then dispose it.
