Set back

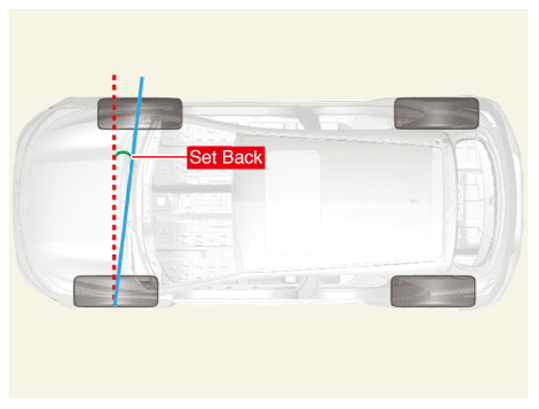

Setback cannot be adjusted, but the value is useful for diagnosing central steering problems, such as tilting. After repairing a vehicle with a damaged frame, the set-back must be checked. The ideal setback value should be zero.

G16895223Courtesy of KIA MOTORS AMERICA, INC.
