Replacement - 2WD: Replacement

  1. Remove the front hub assembly.

    (Refer to Driveshaft and Axle - " FRONT HUB ASSEMBLY  ")

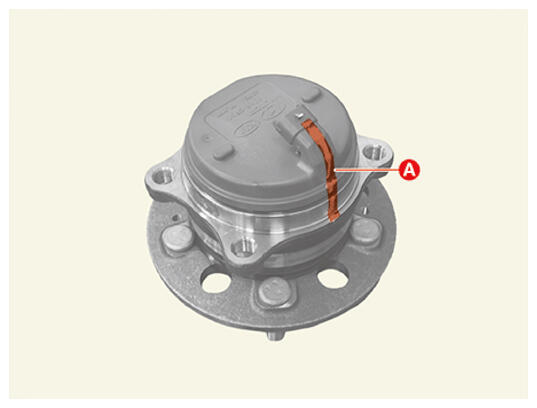

  2. Mark the sensor cap connector mounting part and hub bearing mounting position (A).
    G16896297Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: If the mounting direction of the sensor cap is different from the initial installation, the connector may not be able to be connected at the time of installation, so be sure to record the direction of the connection before removal.
  3. Remove the wheel sensor cap using SST.

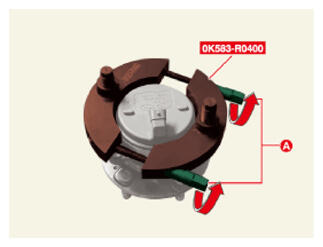

    1. Install SST (0K583 - R0400) on the wheel sensor cap, and then rotate the bolts (A) to fix.
      G16896298Courtesy of KIA MOTORS AMERICA, INC.
      NOTE: Ensure that the bolts (A) and hub bearing mounting surfaces (B) are in contact when installing SST.

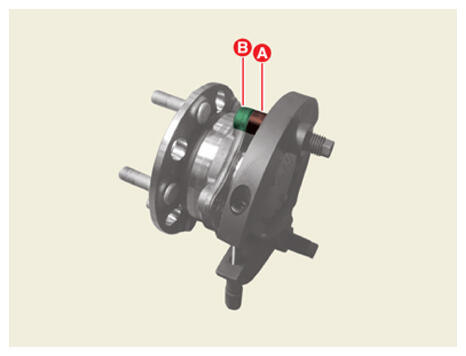

      G16896299Courtesy of KIA MOTORS AMERICA, INC.

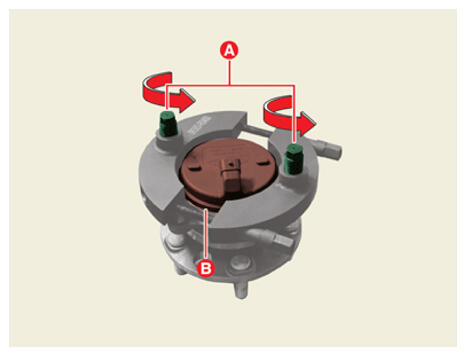

    2. Remove the wheel sensor cap (B) by rotating upper bolts (A) of SST (0K583 - R0400).
    G16896300Courtesy of KIA MOTORS AMERICA, INC.

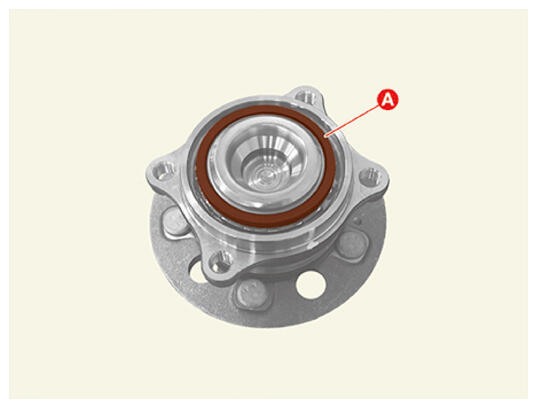

  4. Check the encoder (A) for deformation or damage.
    G16896301Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • After removing the sensor cap, check for damage to the encoder, and replace the hub bearing if the deformation is confirmed.
    • If the encoder is deformed, the warning lamp may illuminates due to a sensor error.

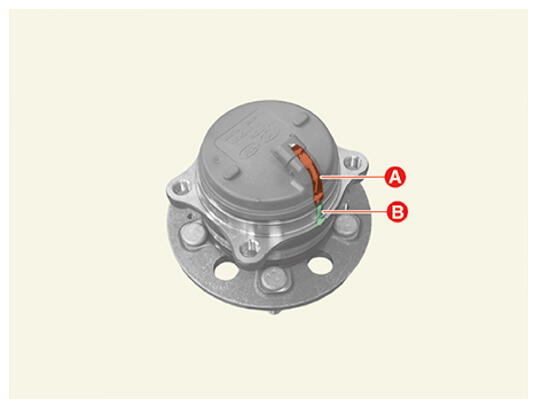

  5. Install the new sensor cap so that the connector position (A) matches the hub bearing mounting position (B).
    G16896302Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • If the mounting direction of the sensor cap is different from the initial installation, the connector may not be able to be connected at the time of installation, so be sure to record the direction of the connection before removal.
    • Wipe off foreign substances and other contaminants inside the hub assembly before installing the sensor cap.

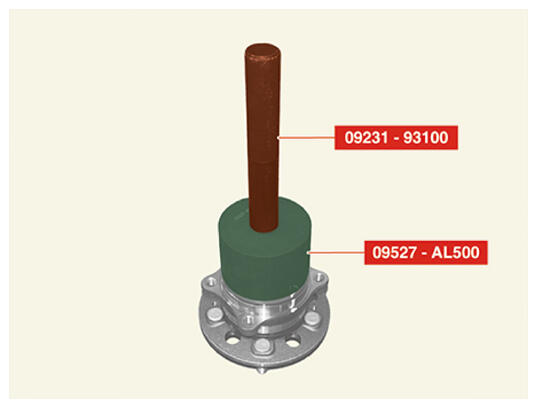

  6. Mount the SST (09231-93100, 09527 - AL500) and hit the top with a hammer to install the sensor cap.
    G16896303Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

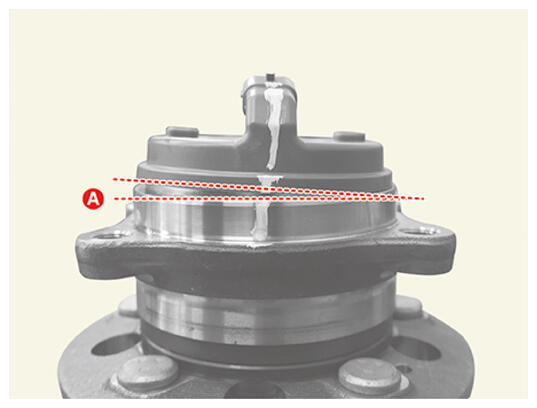

    • If the sensor cap is mounted in an inclined state (A), the encoder may be damaged, so be careful.
      G16896304Courtesy of KIA MOTORS AMERICA, INC.

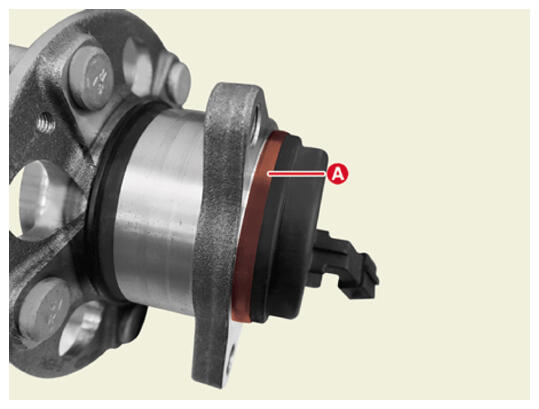

    • Make sure that there is no gap (A) between the sensor cap and front hub assembly.
    G16896305Courtesy of KIA MOTORS AMERICA, INC.
  7. Install the front hub assembly.

    (Refer to Driveshaft and Axle - " FRONT HUB ASSEMBLY  ")
