Deployed Inside The Vehicle

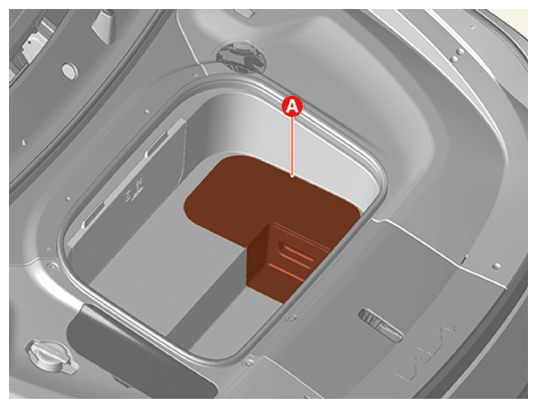

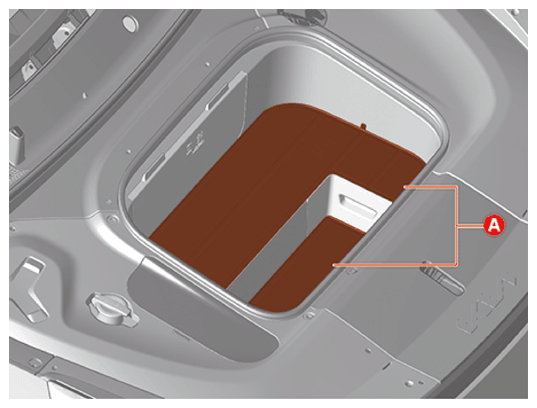

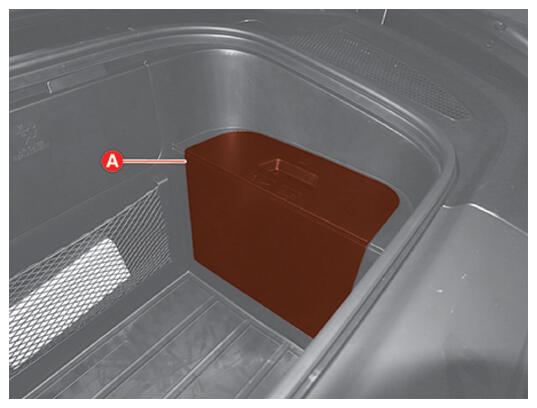

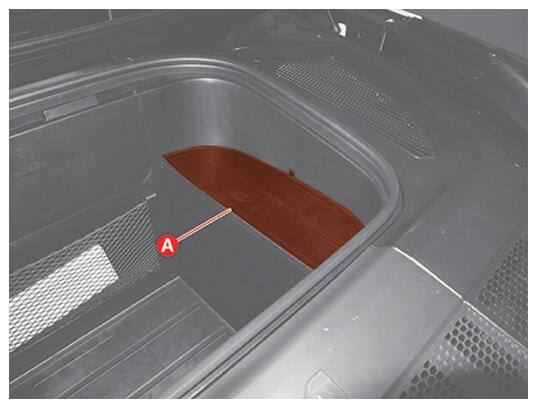

1. Remove the front trunk pad (A).

   [2WD]

   Courtesy of KIA MOTORS AMERICA, INC.

   [4WD]

   Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the auxiliary battery (12 V) service cover (A).

   [2WD]

   Courtesy of KIA MOTORS AMERICA, INC.

   [4WD]

   Courtesy of KIA MOTORS AMERICA, INC.

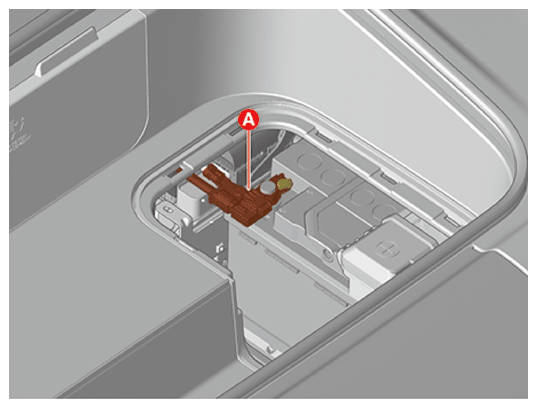

3. Separate the auxiliary battery (12 V) negative terminal (A) by separating the nut.

   Tightening torque  :

   7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

   [2WD]

   Courtesy of KIA MOTORS AMERICA, INC.

   [4WD]

   Courtesy of KIA MOTORS AMERICA, INC.

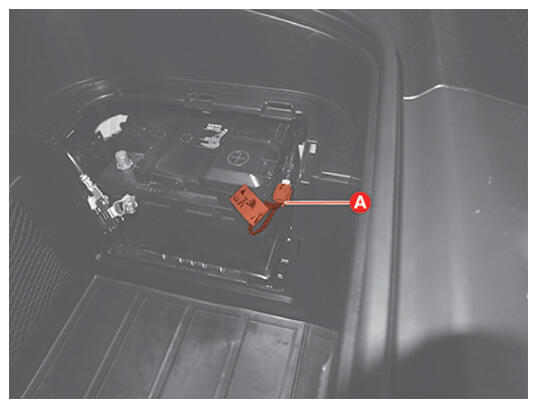

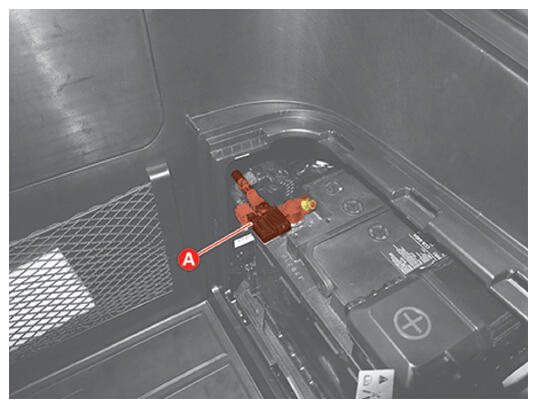

4. Remove the high voltage service interlock connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

   WARNING: Wait more than 5 minutes for capacitor of the high voltage battery system to be discharged completely.

1. Disconnect the airbag or seat belt pretensioner connector to be deployed.
2. Connect the deployment adapter to the airbag or seat belt pretensioner.

   Information

   • For the Driver Airbag (DAB), disconnect the connector, connect the deployment adapter, and then reinstall it on the steering wheel.
   • When using the deployment adapter, use it appropriately according to the deployment airbag.
     • DAB, PAB, CAB, BPT (0K57A - 3U100A)
     • SAB (0957A - 2W100)
     • KAB (0957A - 3F100)

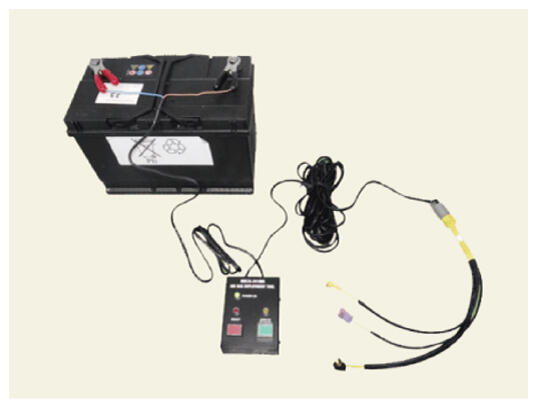

1. Battery (12 V)
2. Airbag deployment tool (0957A - 34100A)
3. Deployment adapter

Courtesy of KIA MOTORS AMERICA, INC.

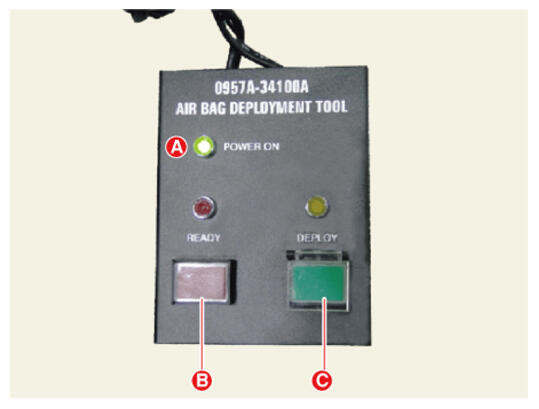

1. When connecting to an external battery normally, POWER ON (1) is turned on.
2. If the READY (2) button illuminates while pressing the READY (2) button, press DEPLOY (3) button to deploy the airbag.

Courtesy of KIA MOTORS AMERICA, INC.

Information

When the airbag is deployed, loud noise is generated, visually confirmed, and after rapid inflation, it contracts slowly.
