Front Suspension: Alignment: Adjustment: Rear: Notes

Remove the service cover (A) after removing the fasteners.

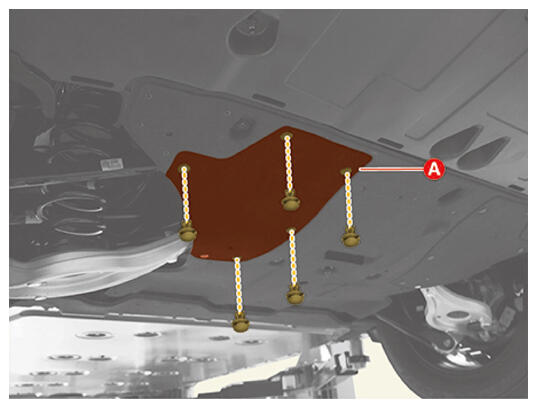

[LH]

G16895209Courtesy of KIA MOTORS AMERICA, INC.

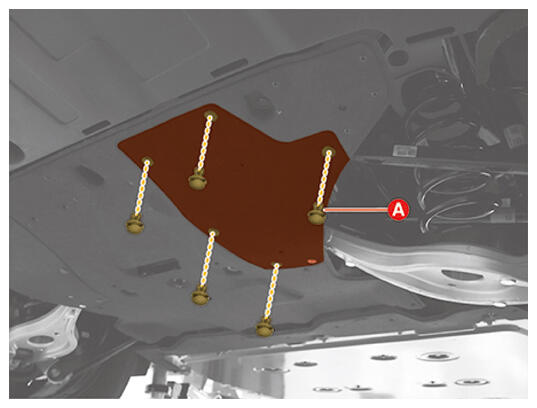

[RH]

G16895210Courtesy of KIA MOTORS AMERICA, INC.
