Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

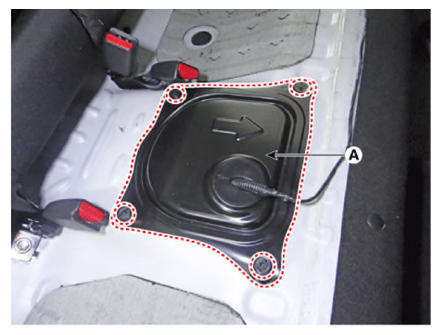

Remove the fuel pump service cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

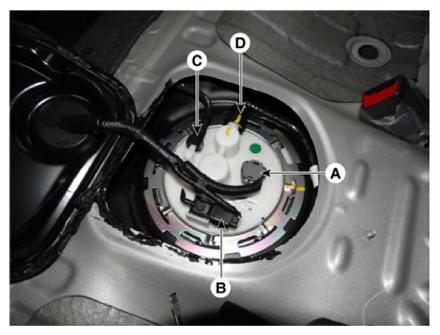

Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
Disconnect the fuel feed tube quick-connector (C).
Disconnect the vapor tube quick-connector (D).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear - LH wheel & tire.
Lift the vehicle and support the fuel tank with a jack.

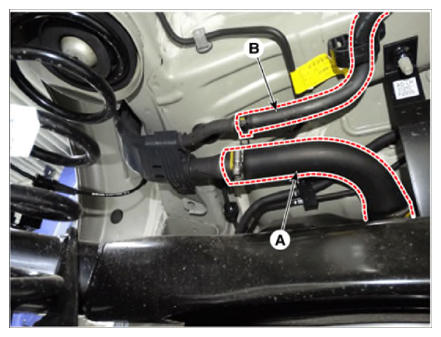

Disconnect the fuel filler hose (A).
Disconnect the ventilation hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

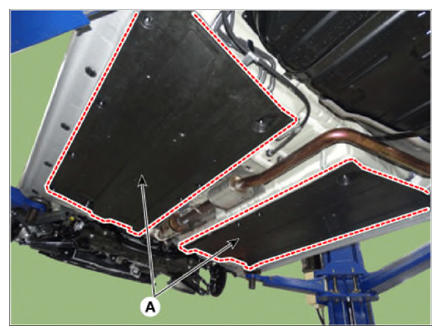

Remove the under cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

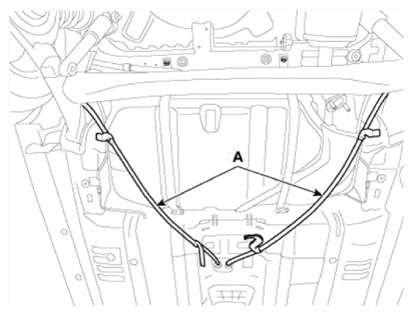

Remove the brake line (A) bracket mounting bolts.

Courtesy of KIA MOTORS AMERICA, INC.

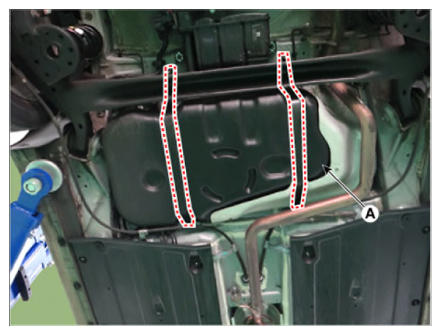

Remove the fuel tank (A) from the vehicle after removing the fuel tank band.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

When removing the fuel tank, the fuel tank must be tilted because of interfering with coupling.
