Components & Components Location: Component

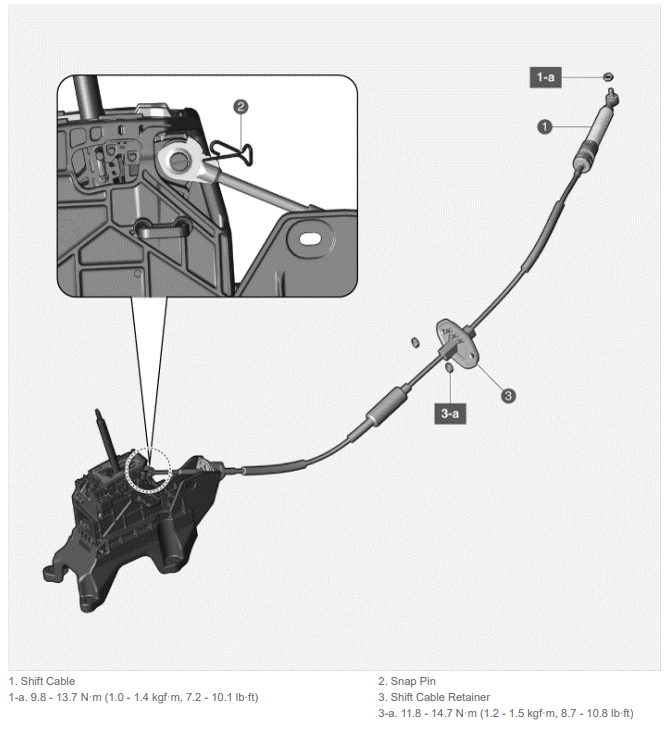

Fig 1: Shift Cable Components Location With Torque Specification
G15767614Courtesy of KIA MOTORS AMERICA, INC.
