Engine Coolant Temperature Sensor (ECTS)
>>
Components And Components Location
>>
Component Location
>>
Integrated Thermal Management Module (ITM) side
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Integrated Thermal Management Module (ITM) side

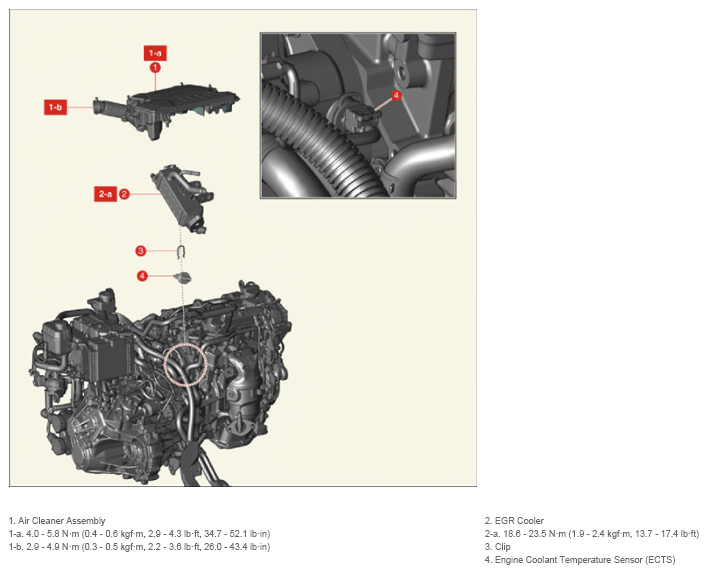

Fig 1: Engine Coolant Temperature Sensor Components Location With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
