Connector Connection Condition Test

Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

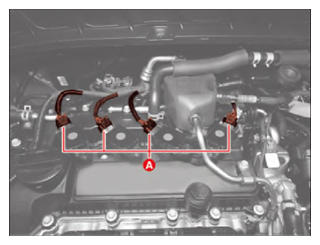

Re-connect the ignition coil connectors (A) after disconnecting the ignition coil connectors.

Courtesy of KIA MOTORS AMERICA, INC.
Install the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

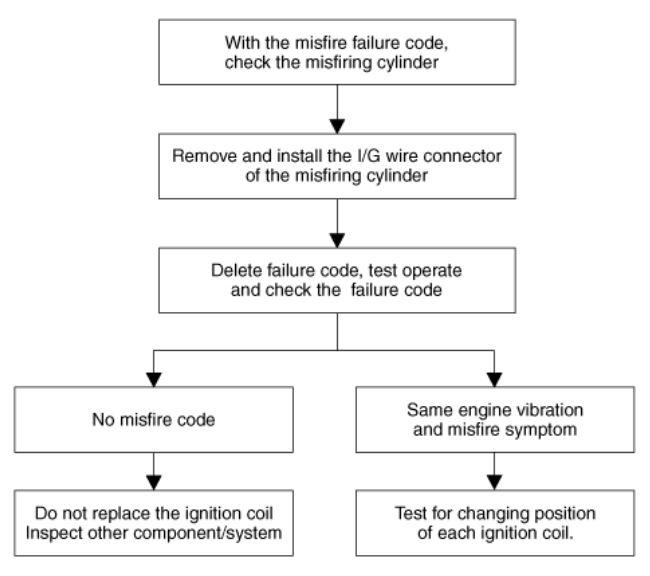

Perform the driving test after deleting the DTC code.

Courtesy of KIA MOTORS AMERICA, INC.
