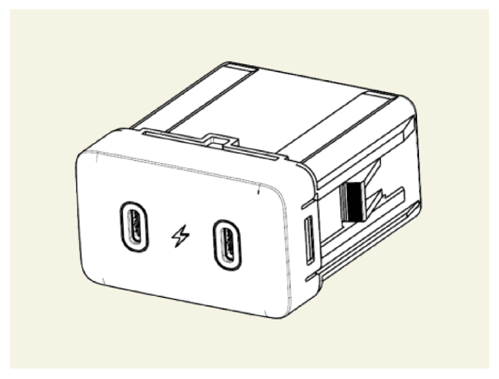

Rear Console Cover

G16425861Courtesy of KIA MOTORS AMERICA, INC.
Connector Terminal Function
G16425862Courtesy of KIA MOTORS AMERICA, INC.
 1 Ground
2 Ground
3 Illumination (-)
4 Illumination (+)
5 ACC
6 ACC
