Component Inspection: Notes

Inspection Condition	Inspection Procedure	Reference

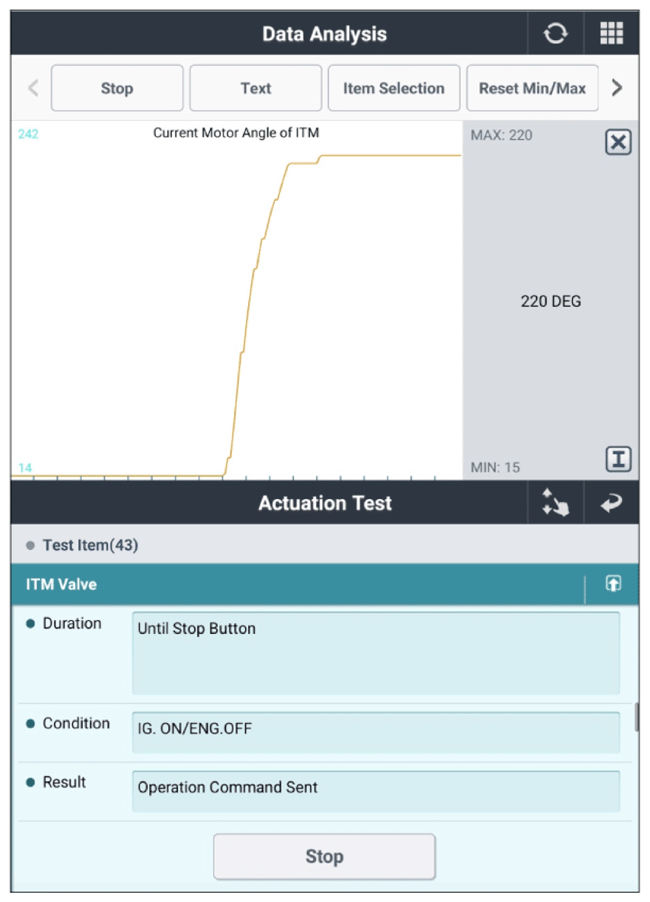

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Actuation Test" of concerned component with KDS.	Fig.1

G16435961

Courtesy of KIA MOTORS AMERICA, INC.

Good

Monitor "Diagnostic Trouble Codes (DTC)" with KDS. If the fault code status information occurs again as "Pending Fault" or "Active Fault" rather than "History Fault", replace the ITM and go to "VEHICLE S/W MANAGEMENT " procedure. If the fault code status information does not occurs, Go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the ITM and go to "VEHICLE S/W MANAGEMENT " procedure.
After "Component Inspection" procedure, Go to "VERIFICATION OF REPAIR " procedure.
