Steering Wheel Off Center Inspection

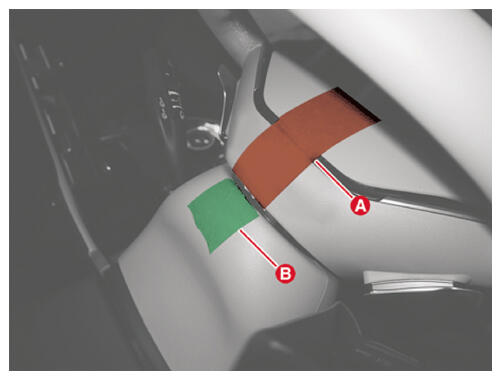

Mark the steering wheel upper (A) and upper cover (B) using the masking tape.

Courtesy of KIA MOTORS AMERICA, INC.

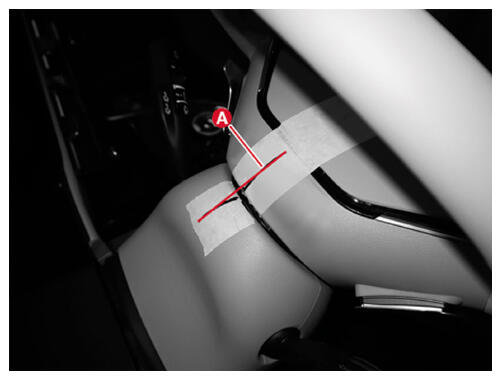

Align the steering wheel and mark the straight line (A) on the masking tape.

Courtesy of KIA MOTORS AMERICA, INC.

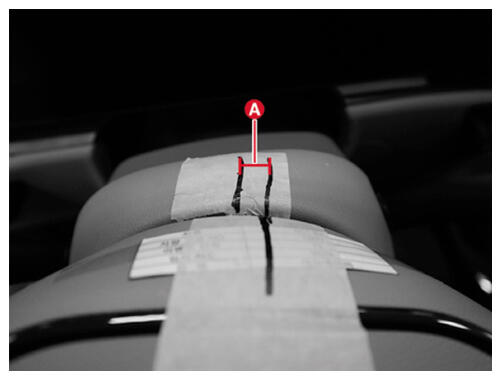

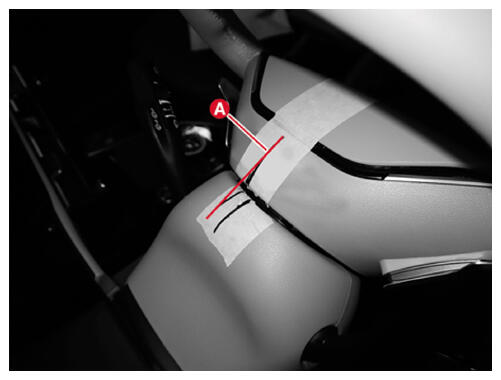

Keep the vehicle straight and drive about 100 m, and mark the new straight line (A) as the steering wheel is turned.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front wheel and tires.
(Refer to Suspension System - " WHEEL ")
Loosen the tie rod end nut (A) enough to adjust the steering wheel off center.
Tie rod tightening torque:

49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

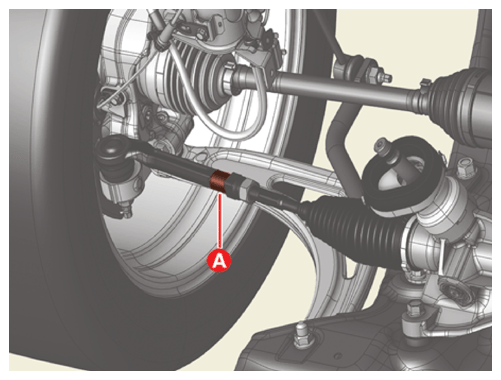

Fix the tie rod end (A) with a spanner to prevent turning during adjustment.

Courtesy of KIA MOTORS AMERICA, INC.

Turn the tie rod turnbuckle (A) clockwise or counterclockwise to adjust the steering wheel off center.

Courtesy of KIA MOTORS AMERICA, INC.

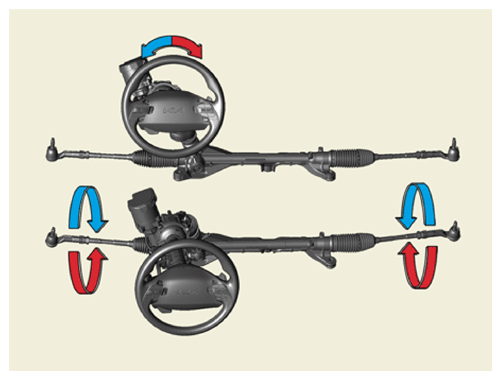

[Tie rod turnbuckle rotation according to steering wheel off center]

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

During adjustment, check the distance (A) from time to time, do not adjust the turnbuckle in the direction of increasing the distance (A).

Courtesy of KIA MOTORS AMERICA, INC.

Adjust the RH and LH tie rods as below.
(LH clockwise once → RH counterclockwise once)
