Connector And Terminal Function

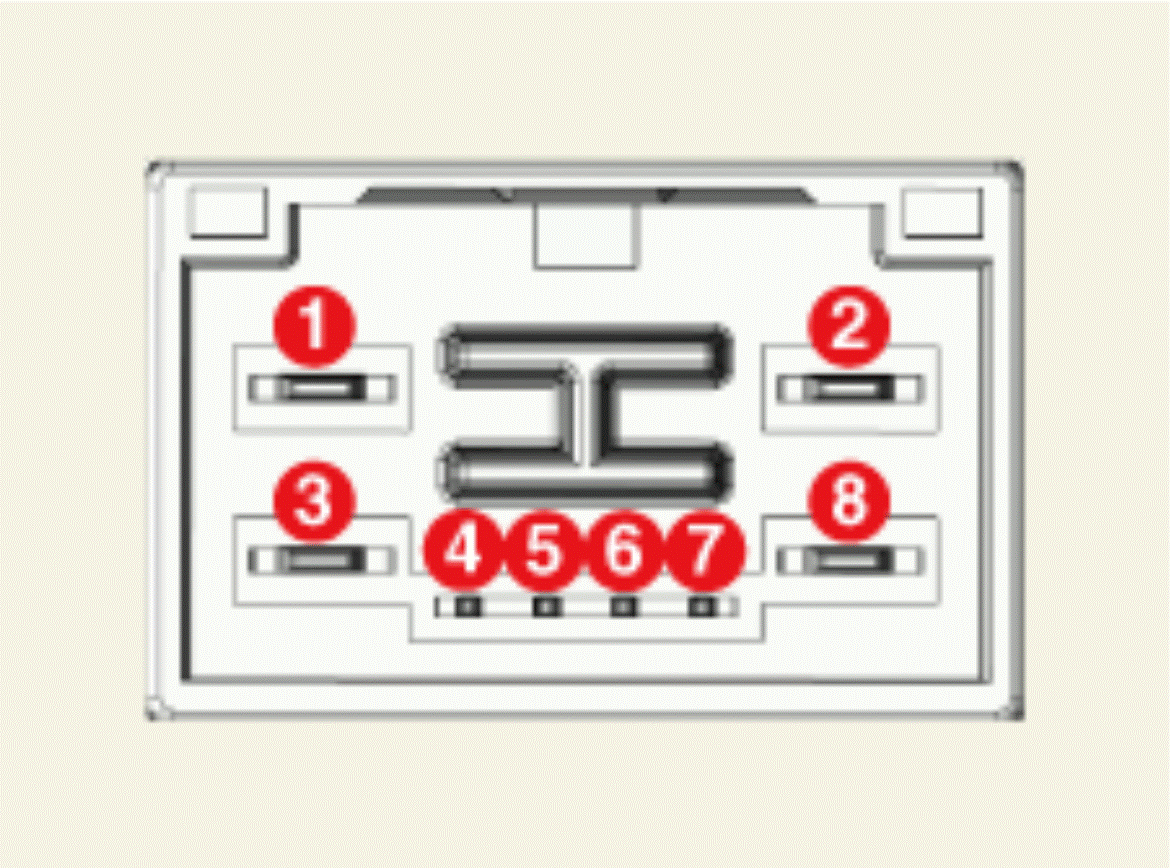

G15710031Courtesy of KIA MOTORS AMERICA, INC.
No Function
1 Battery +
2 AC Power 1
3 Ground
4 IGN 2
5 AC Indicator
6 AC Switch in rear console
7 AC Switch in luggage trim
8 AC Power 2
