Ignition Switch: Inspection

  1. Disconnect the negative (-) battery terminal.

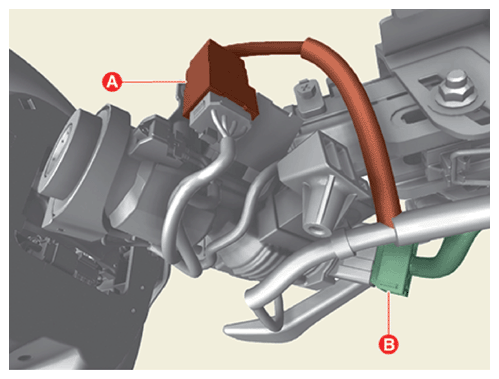

  2. Disconnect the key warning switch connector (A) and ignition switch connector (B).
    G16425927Courtesy of KIA MOTORS AMERICA, INC.

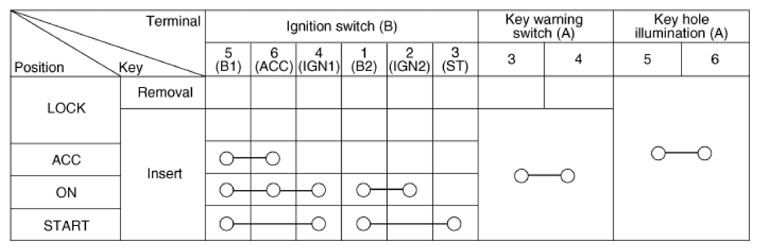

  3. Check for continuity between the terminals.
    G16425928Courtesy of KIA MOTORS AMERICA, INC.
