Components And Components Location: Component

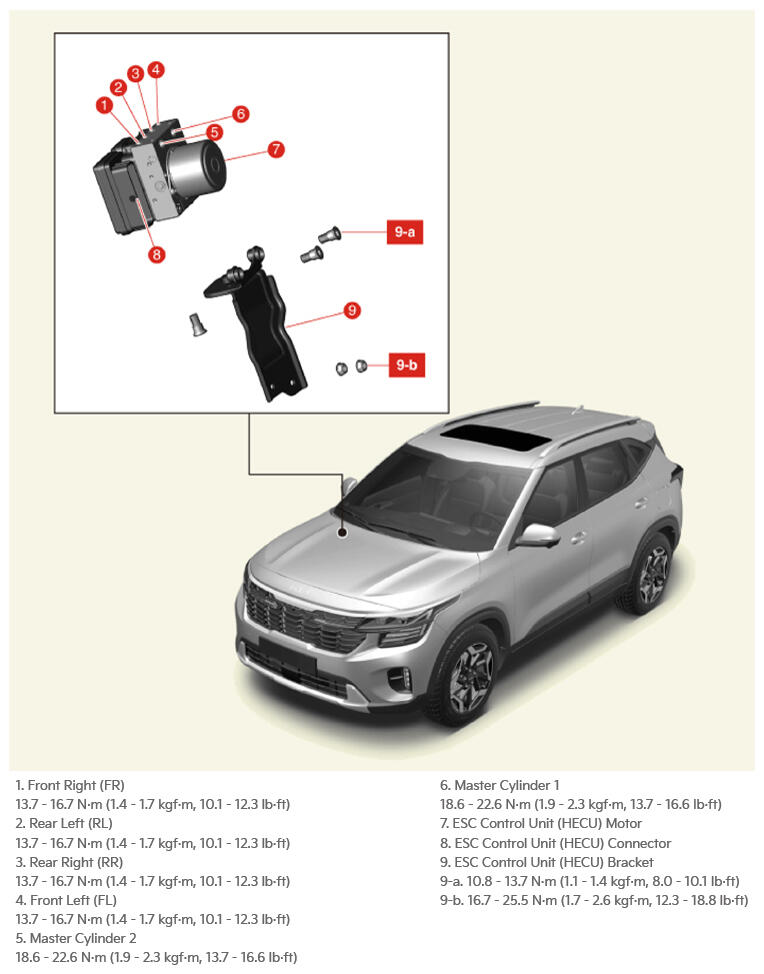

Fig 1: ESC Control Unit Components Location With Torque Specifications
G16425165Courtesy of KIA MOTORS AMERICA, INC.
