Engine Coolant Temperature Sensor (ECTS) #2 - Cylinder Block
- Check the coolant temperature with the KDS.

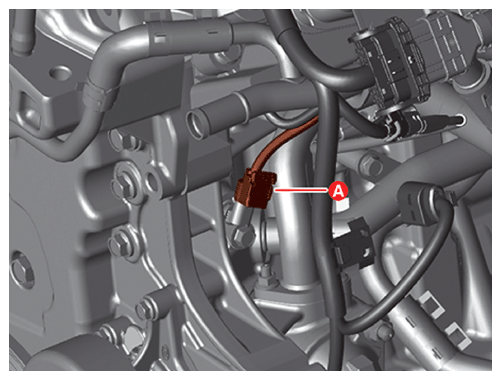

- Disconnect the Engine Coolant Temperature Sensor (ECTS) connector (A).
- Measure resistance after disconnecting the ECTS connector.
Temperature Resistance (KΩ) °C °F -40 -40 41.74 - 54.54 -30 -22 23.54 - 29.94 -20 -4 14.13 - 16.83 -10 14 8.39 - 10.22 0 32 5.28 - 6.29 10 50 3.42 - 4.00 20 68 2.31 - 2.59 30 86 1.55 - 1.76 40 104 1.08 - 1.21 50 122 0.77 - 0.85 60 140 0.56 - 0.61 70 158 0.41 - 0.44 80 176 0.31 - 0.33 90 194 0.23 - 0.25 100 212 0.18 - 0.19 110 230 0.145 - 0.149 120 248 0.113 - 0.118 130 266 0.090 - 0.095 140 284 0.073 - 0.077 150 302 0.059 - 0.063
