Position Switch: Removal

  1. Shift the shift lever to the N range.
    NOTE: Use wheel chocks to prevent vehicle moved accidentally.
  2. Disconnect the battery negative (-) terminal.
  3. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - " AIR CLEANER  ")

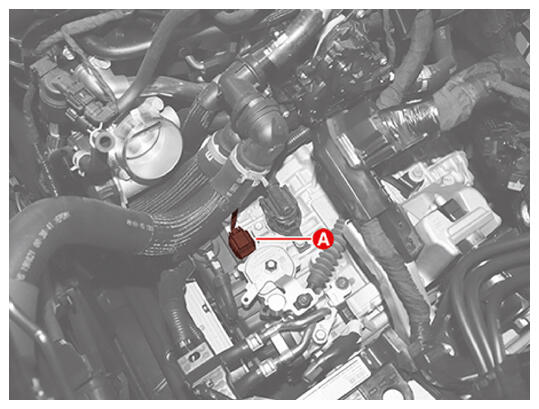

  4. Disconnect the position switch connector (A).
    G16477835Courtesy of KIA MOTORS AMERICA, INC.

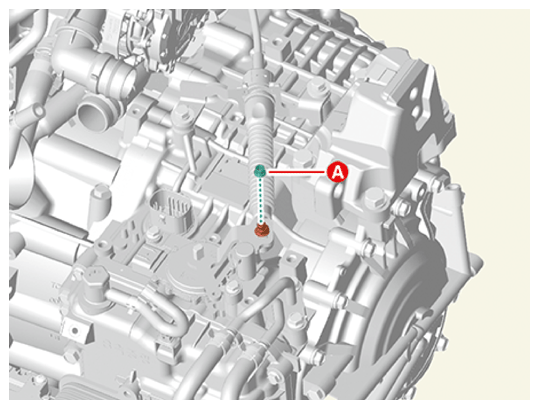

  5. Remove the shift cable after removing the nut (A).
    G16477836Courtesy of KIA MOTORS AMERICA, INC.

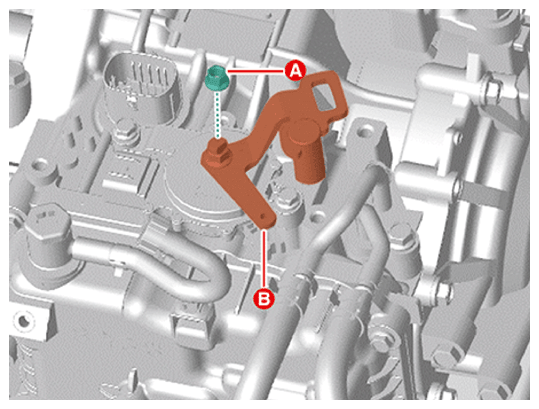

  6. Remove the manual control lever (B) and the washer after removing a nut (A).
    G16477837Courtesy of KIA MOTORS AMERICA, INC.

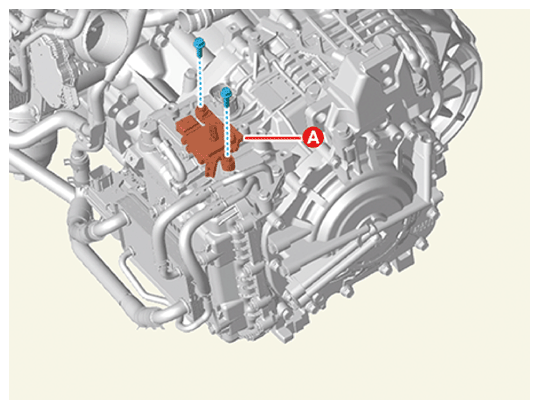

  7. Remove the position switch (A) after removing the bolts.
G16477838Courtesy of KIA MOTORS AMERICA, INC.
