Engine Mounting Bracket

Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Install the jack under the edge of lower oil pan to support the engine.
NOTE: Put the rubber block between the jack and oil pan to avoid damaging the oil pan.
Remove the engine mounting support bracket (A).
Tightening torque:

78.0 - 98.0 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

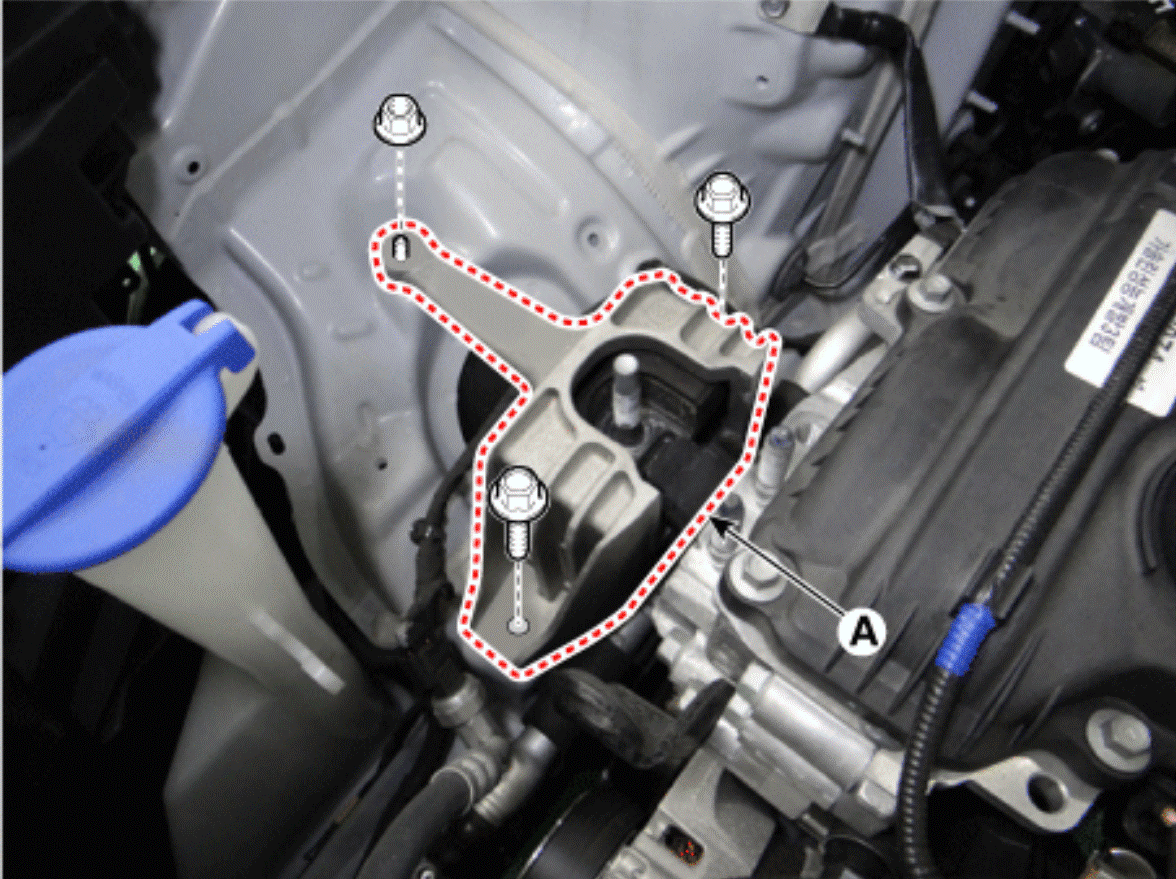

Remove the engine mounting bracket (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
