Home >> Kia >> 2025 >> Soul EX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System >> Line Pressure Control Solenoid Valve (LINE_VFS) >> Components And Components Location >> Component
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Components And Components Location: Component

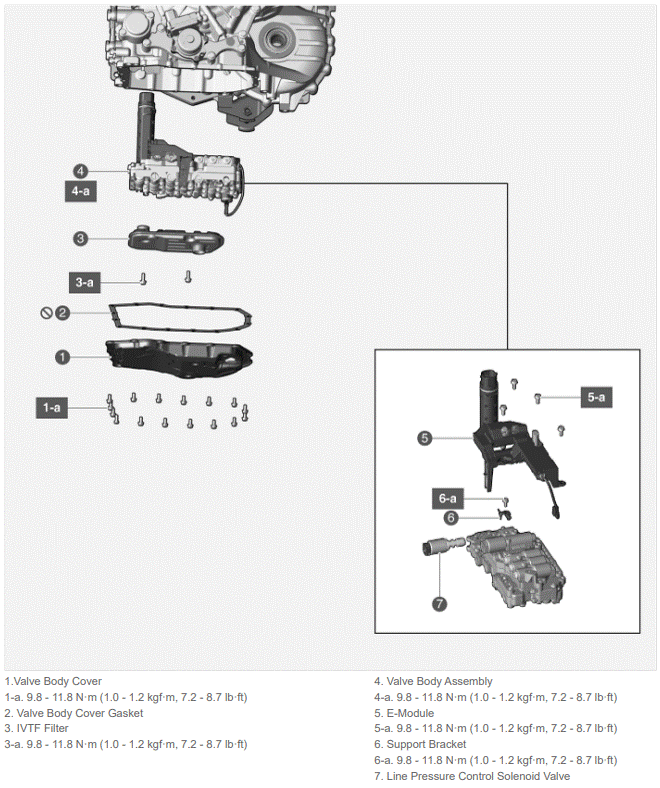

Fig 1: Line Pressure Control Solenoid Valve Components Location With Torque Specifications
G15694811Courtesy of KIA MOTORS AMERICA, INC.
