ABS Control

  1. Normal Braking without ABS
      Inlet valve (IV) Outlet valve (OV) Return pump
    Operation Open Close OFF

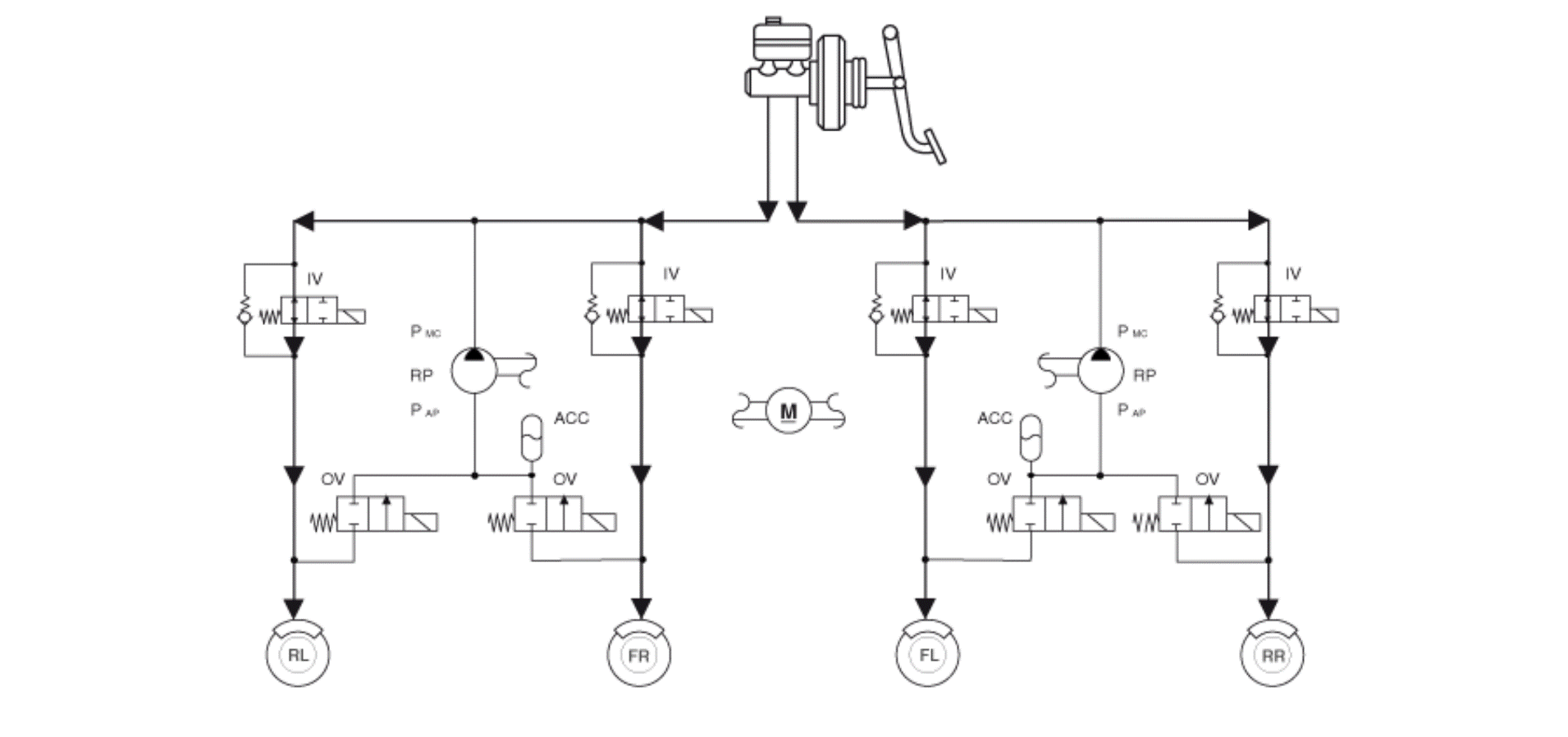

    G15715279Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: IV: Inlet Valve
    OV: Outlet Valve
    RL: Rear left wheel
    FR: Front right wheel
    FL: Front left wheel
    RR: Rear right wheel
    RP: Return pump
  2. Decrease Mode
      Inlet valve (IV) Outlet valve (OV) Return pump
    Operation Close Open ON (Motor speed control)

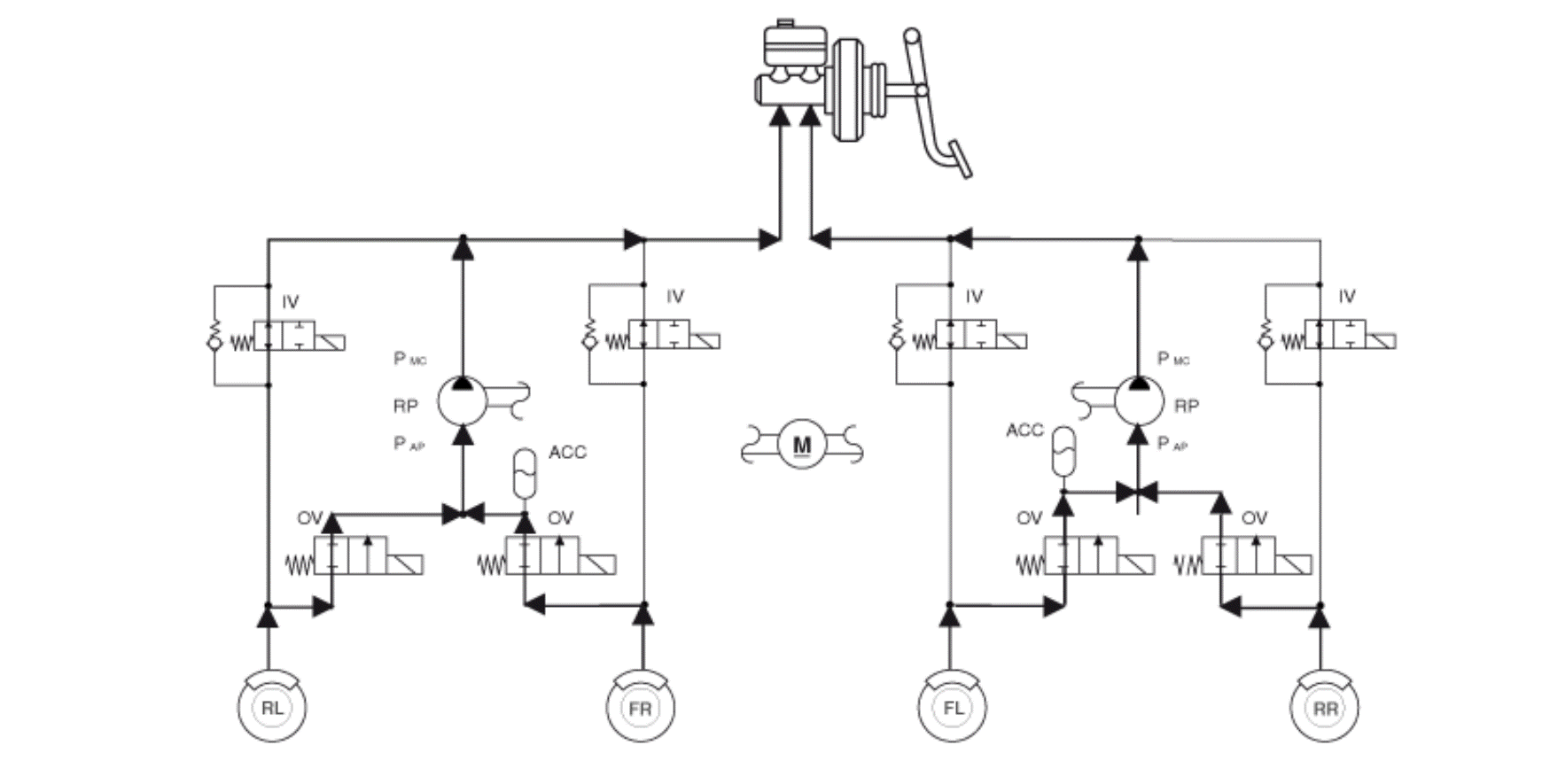

    G15715280Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: IV: Inlet Valve
    OV: Outlet Valve
    RL: Rear left wheel
    FR: Front right wheel
    FL: Front left wheel
    RR: Rear right wheel
    RP: Return pump
  3. Hold Mode
      Inlet valve (IV) Outlet valve (OV) Return pump
    Operation Close Close ON (Motor speed control)

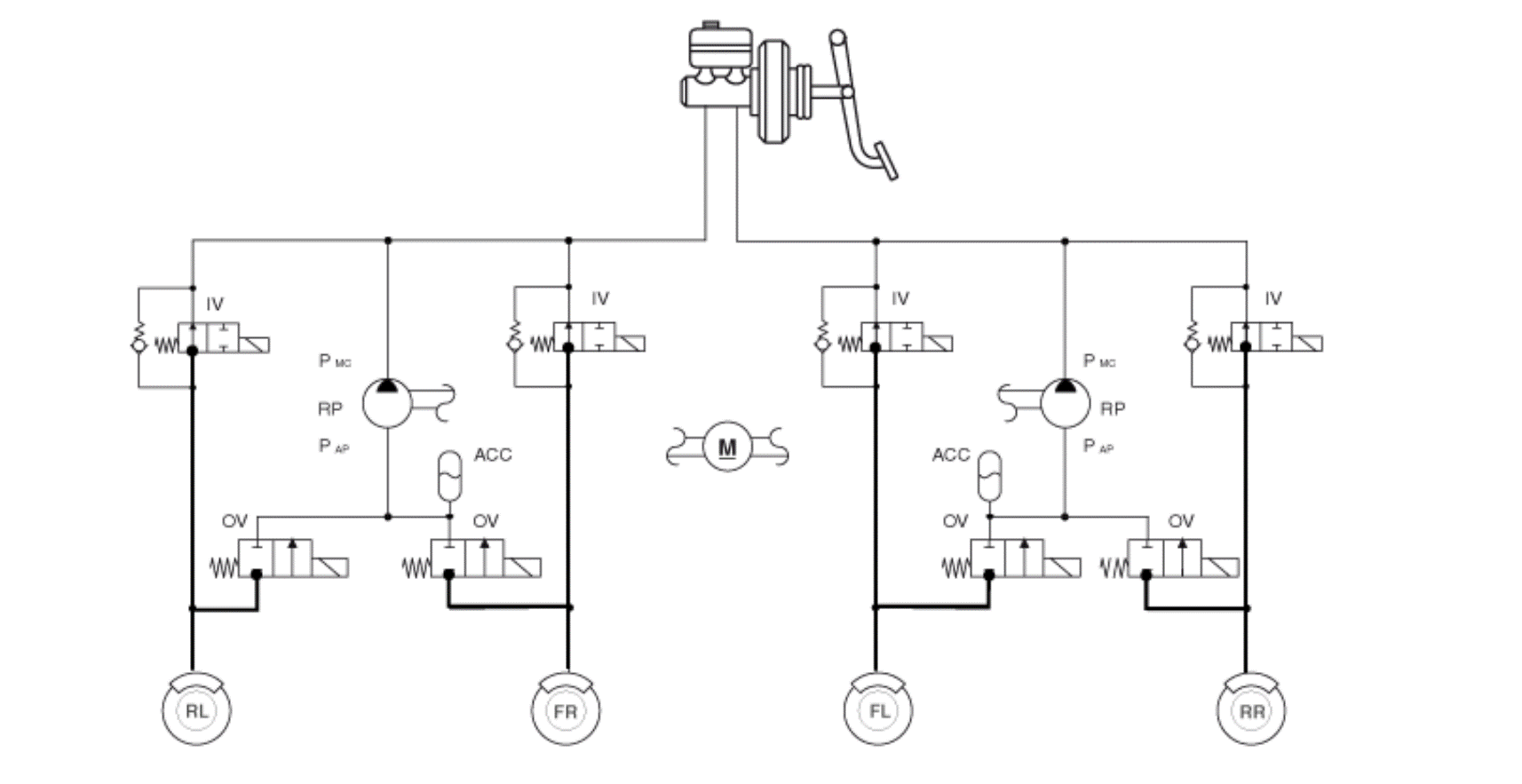

    G15715281Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: IV: Inlet Valve
    OV: Outlet Valve
    RL: Rear left wheel
    FR: Front right wheel
    FL: Front left wheel
    RR: Rear right wheel
    RP: Return pump
  4. Increase Mode
      Inlet valve (IV) Outlet valve (OV) Return pump
    Operation Open Close ON (Motor speed control)

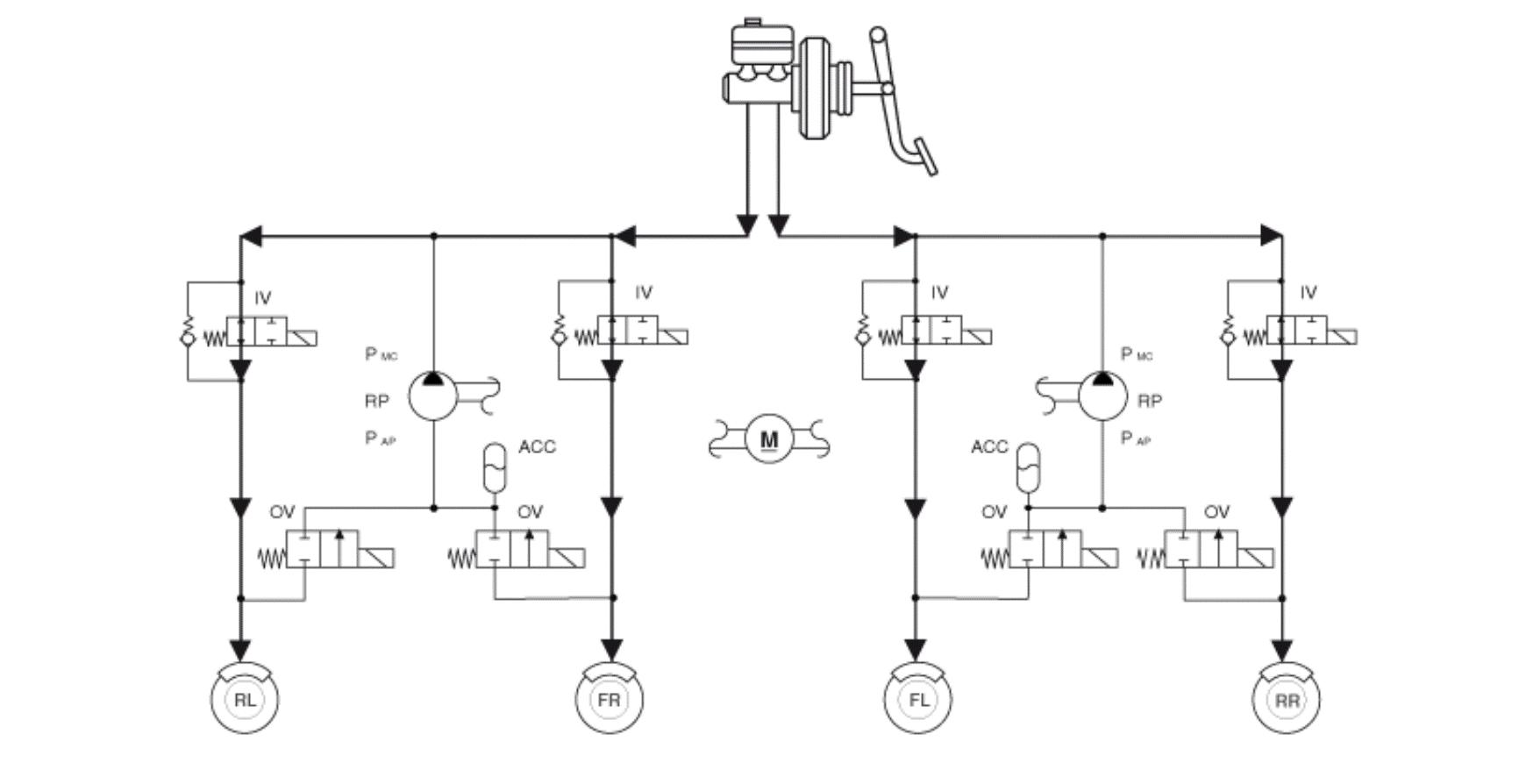

    G15715282Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: IV: Inlet Valve
    OV: Outlet Valve
    RL: Rear left wheel
    FR: Front right wheel
    FL: Front left wheel
    RR: Rear right wheel
    RP: Return pump
