Ignition System

Provides retarded ignition setting at lower speed range while allowing normal advance at higher engine speed. During high speed deceleration, throttle controlled vacuum switch provides for ignition retard.

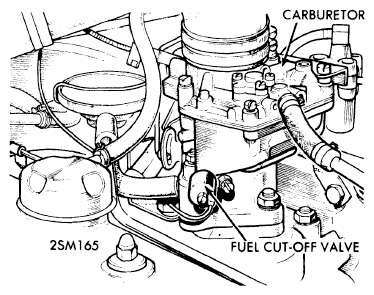

Fig 1: Fuel Cut-Off Valve

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
