Power Steering Box

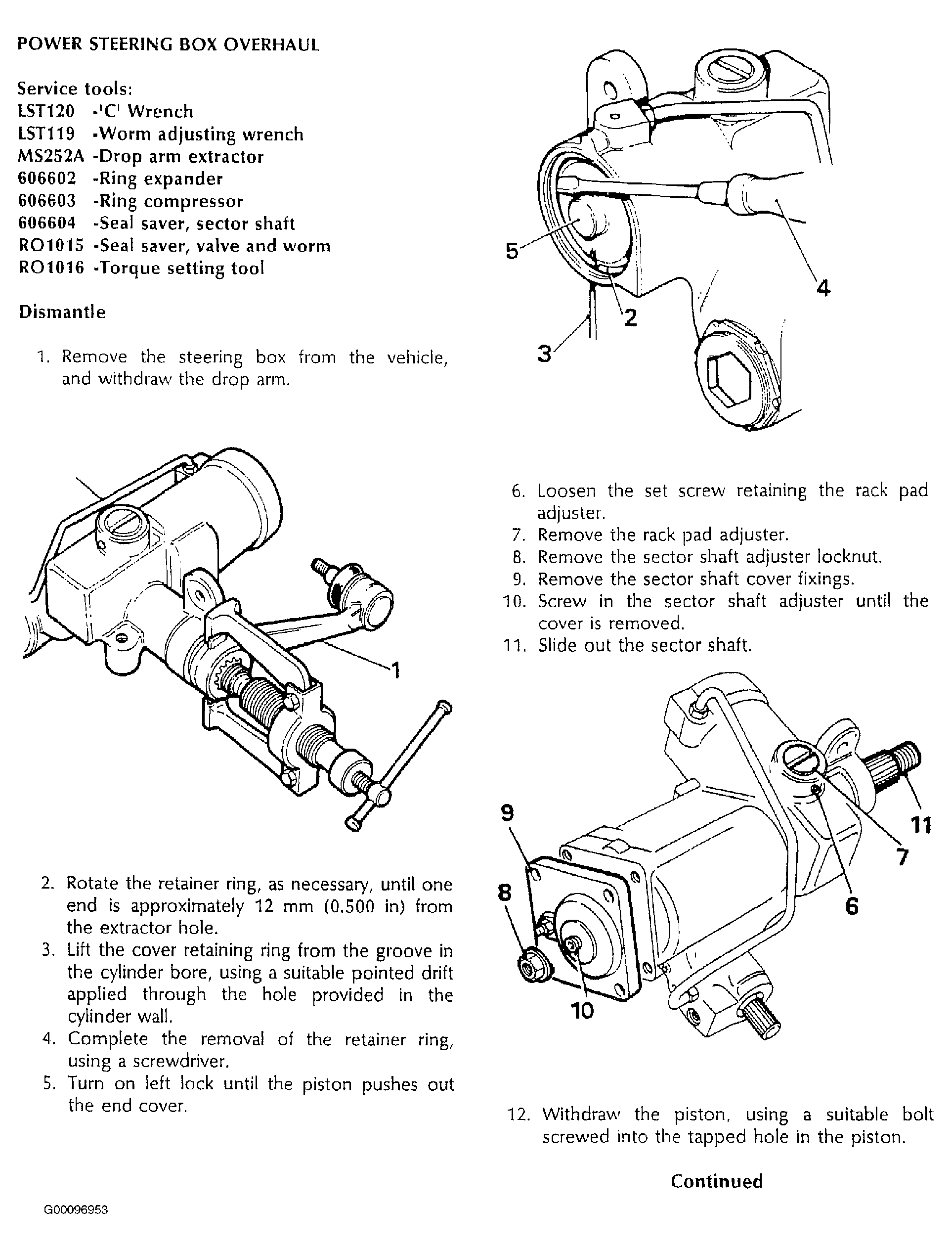

Fig 1: Overhaul Of Power Steering Box (1 of 7)

G00096953

Courtesy of LAND ROVER NORTH AMERICA, INC.

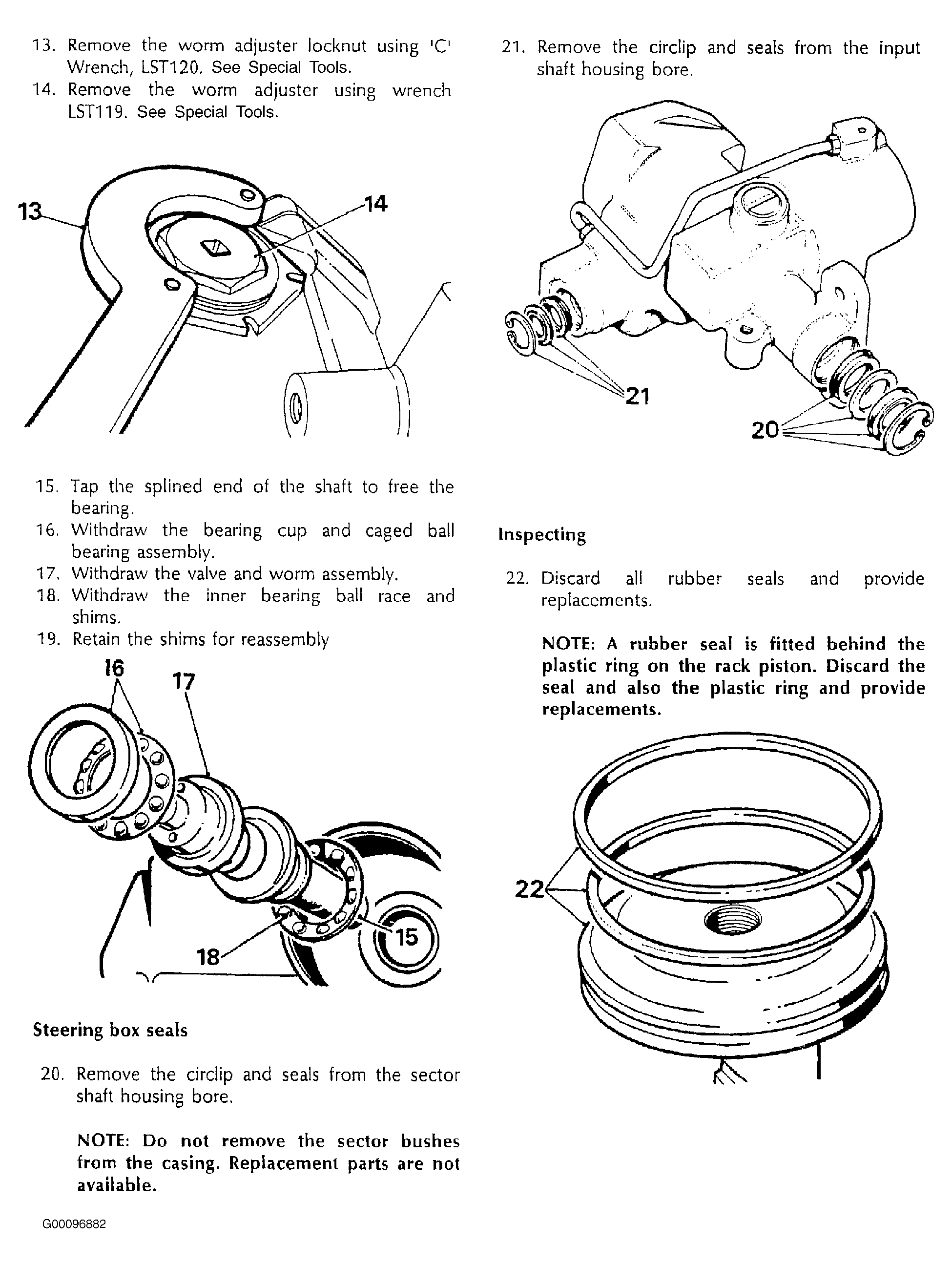

Fig 2: Overhaul Of Power Steering Box (2 of 7)

G00096882

Courtesy of LAND ROVER NORTH AMERICA, INC.

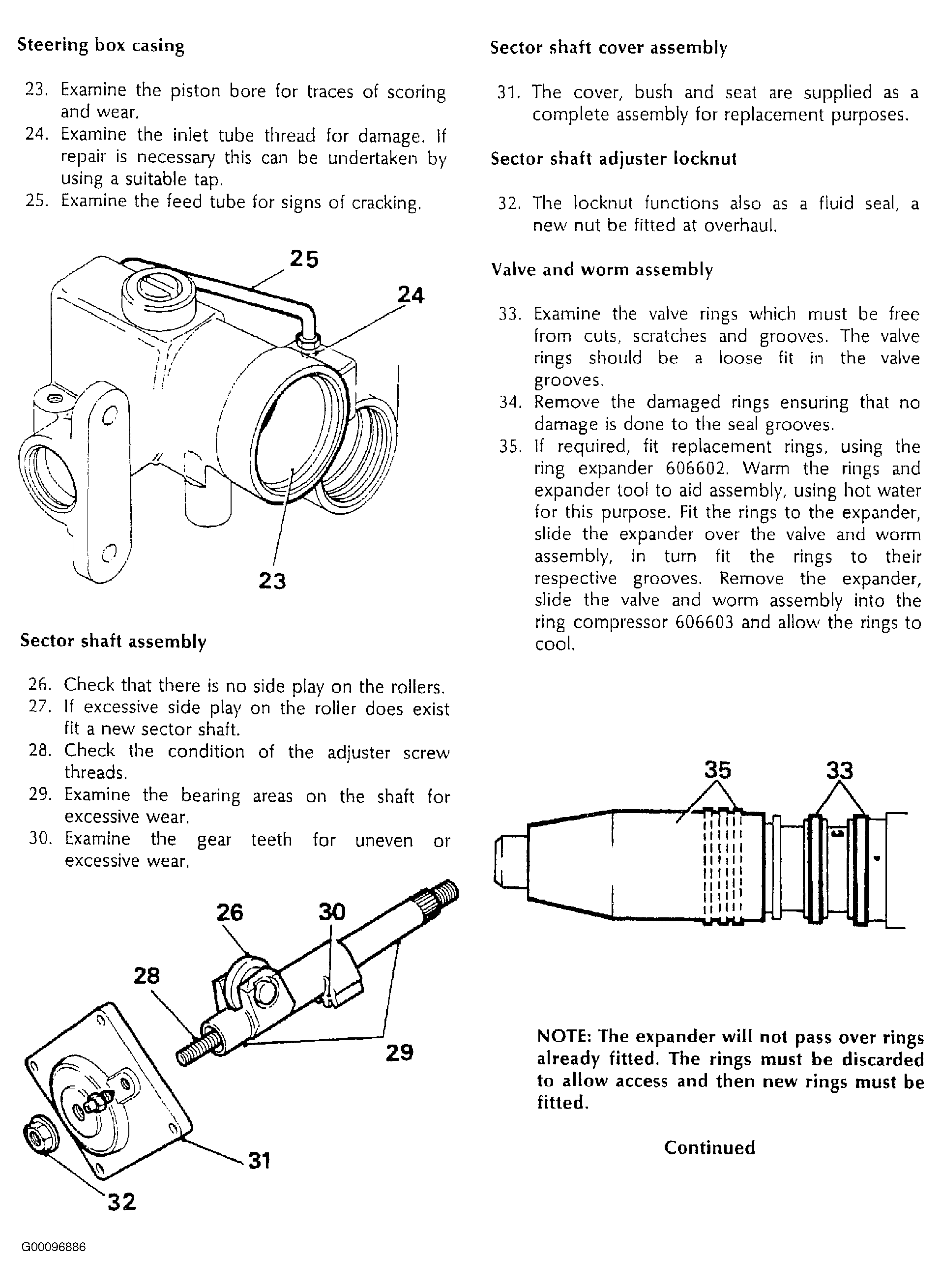

Fig 3: Overhaul Of Power Steering Box (3 of 7)

G00096886

Courtesy of LAND ROVER NORTH AMERICA, INC.

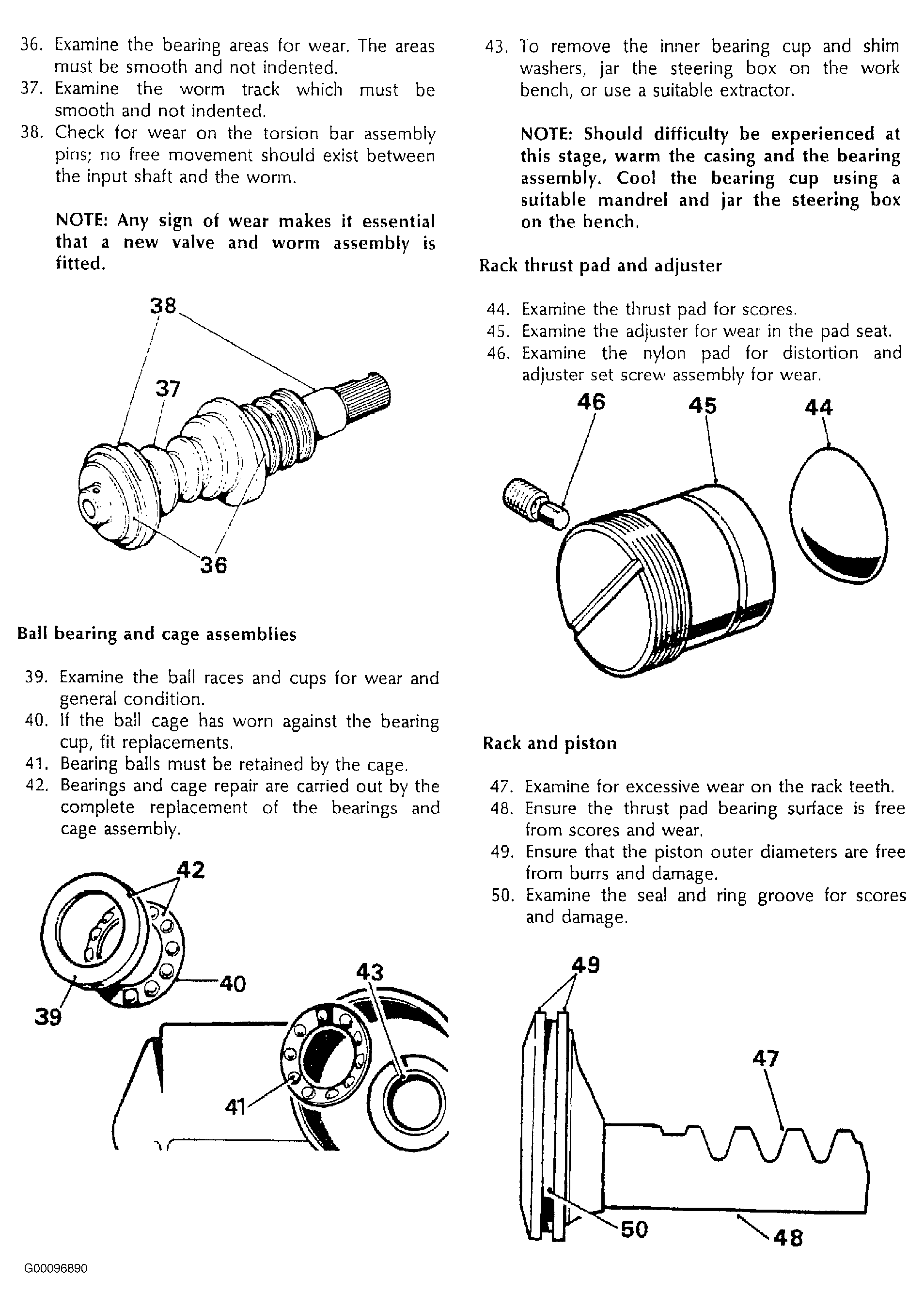

Fig 4: Overhaul Of Power Steering Box (4 of 7)

G00096890

Courtesy of LAND ROVER NORTH AMERICA, INC.

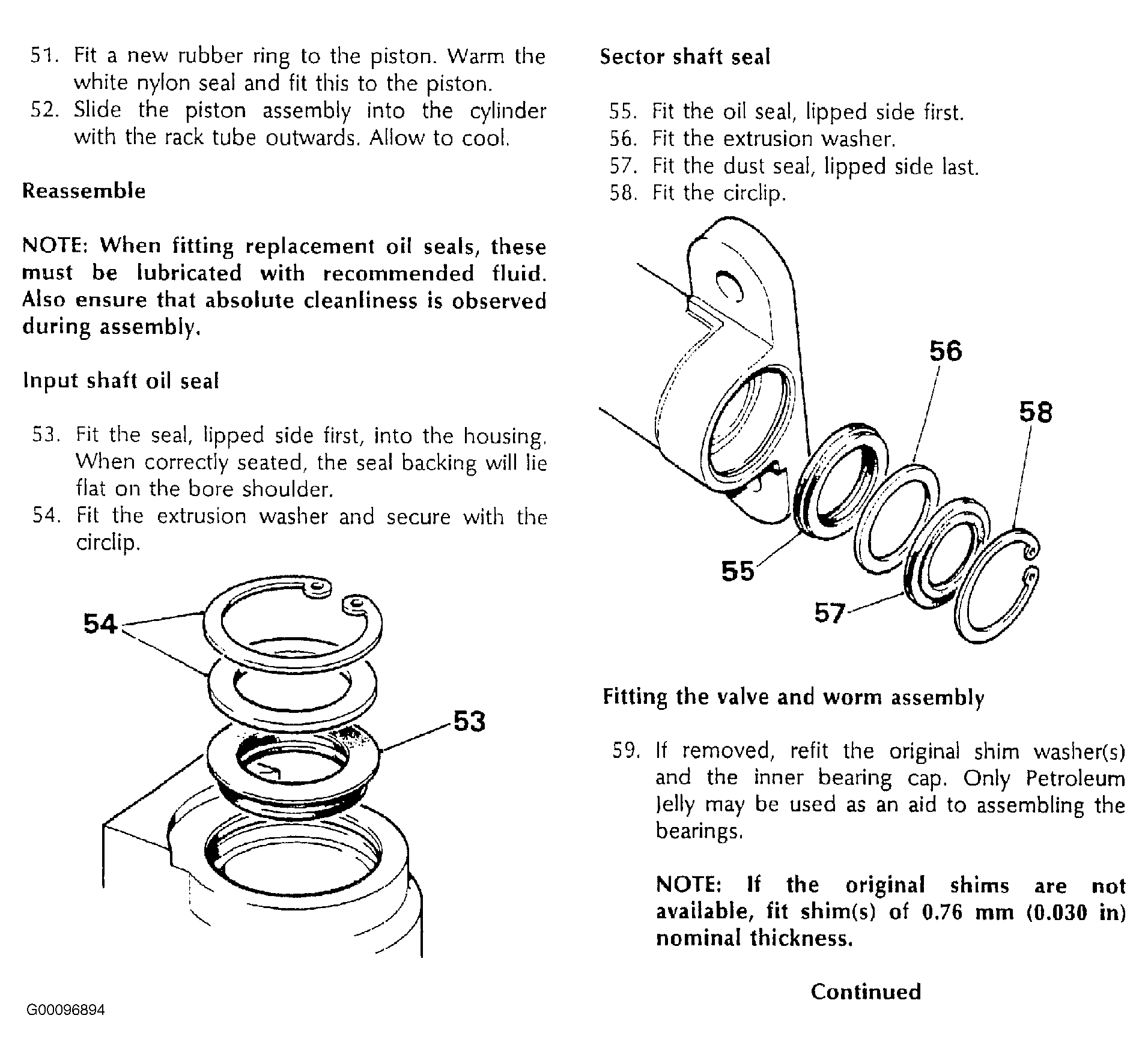

Fig 5: Overhaul Of Power Steering Box (5 of 7)

G00096894

Courtesy of LAND ROVER NORTH AMERICA, INC.

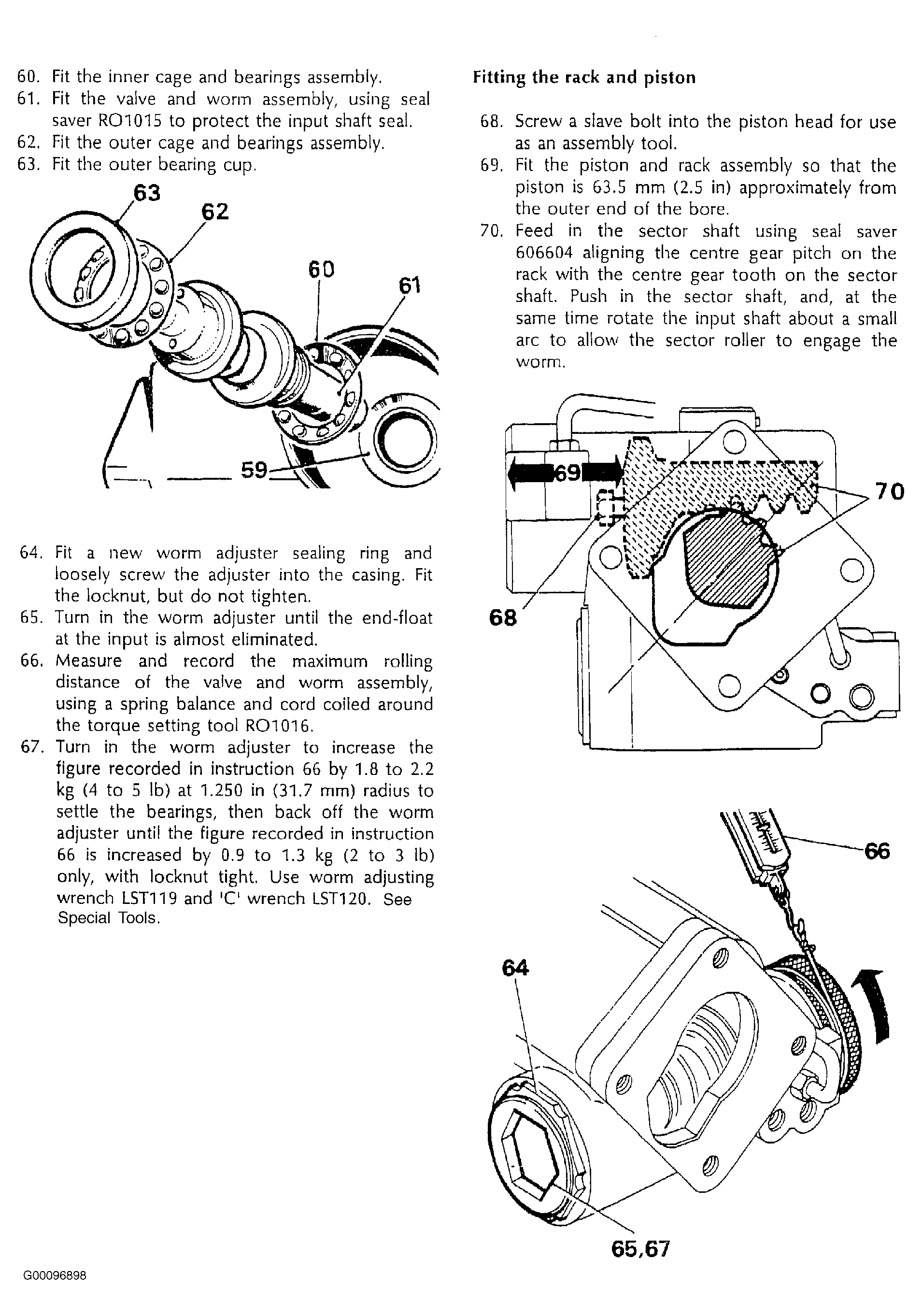

Fig 6: Overhaul Of Power Steering Box (6 of 7)

G00096898

Courtesy of LAND ROVER NORTH AMERICA, INC.

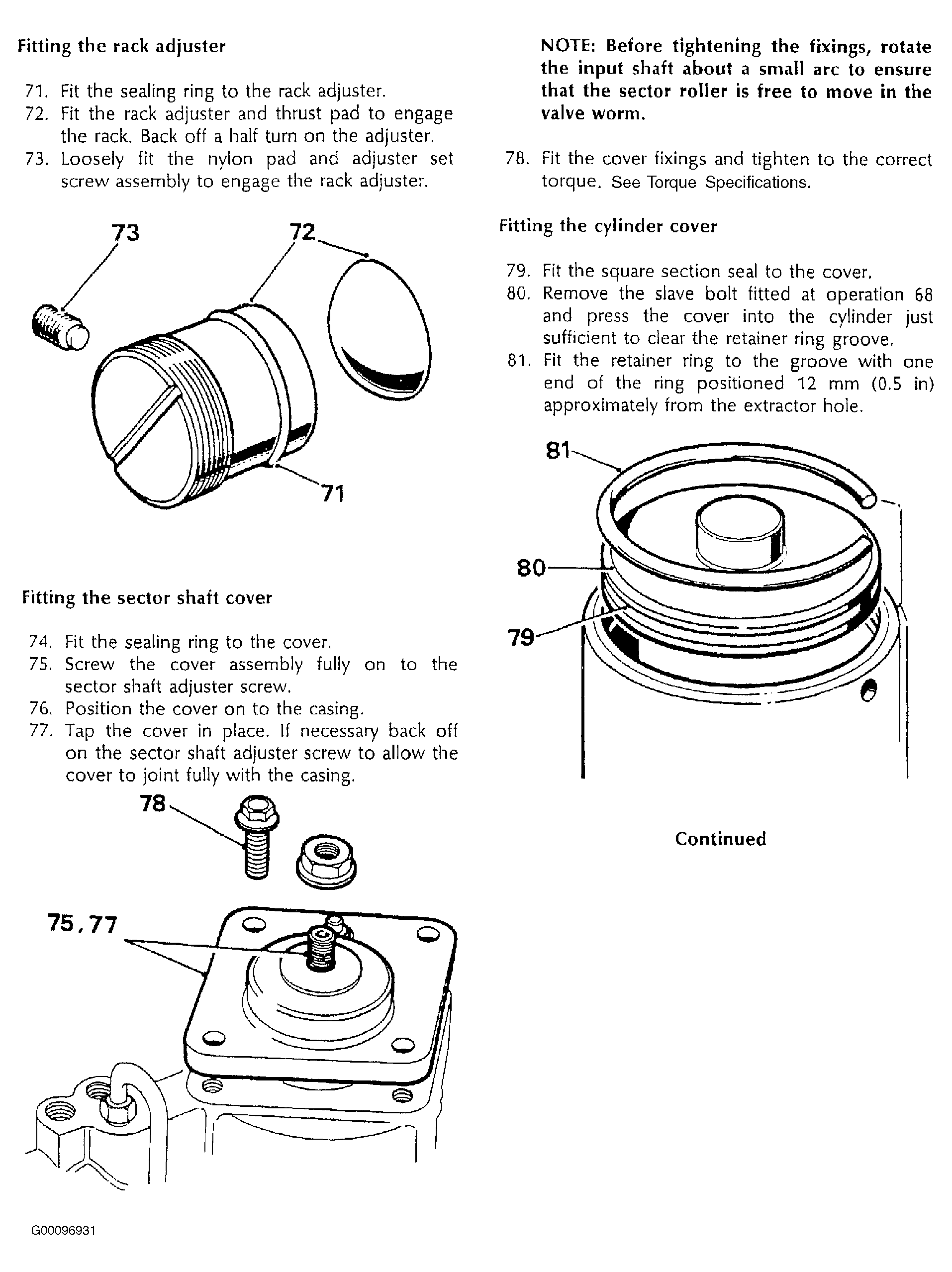

Fig 7: Overhaul Of Power Steering Box (7 of 7)

G00096931

Courtesy of LAND ROVER NORTH AMERICA, INC.
