Power Steering Box

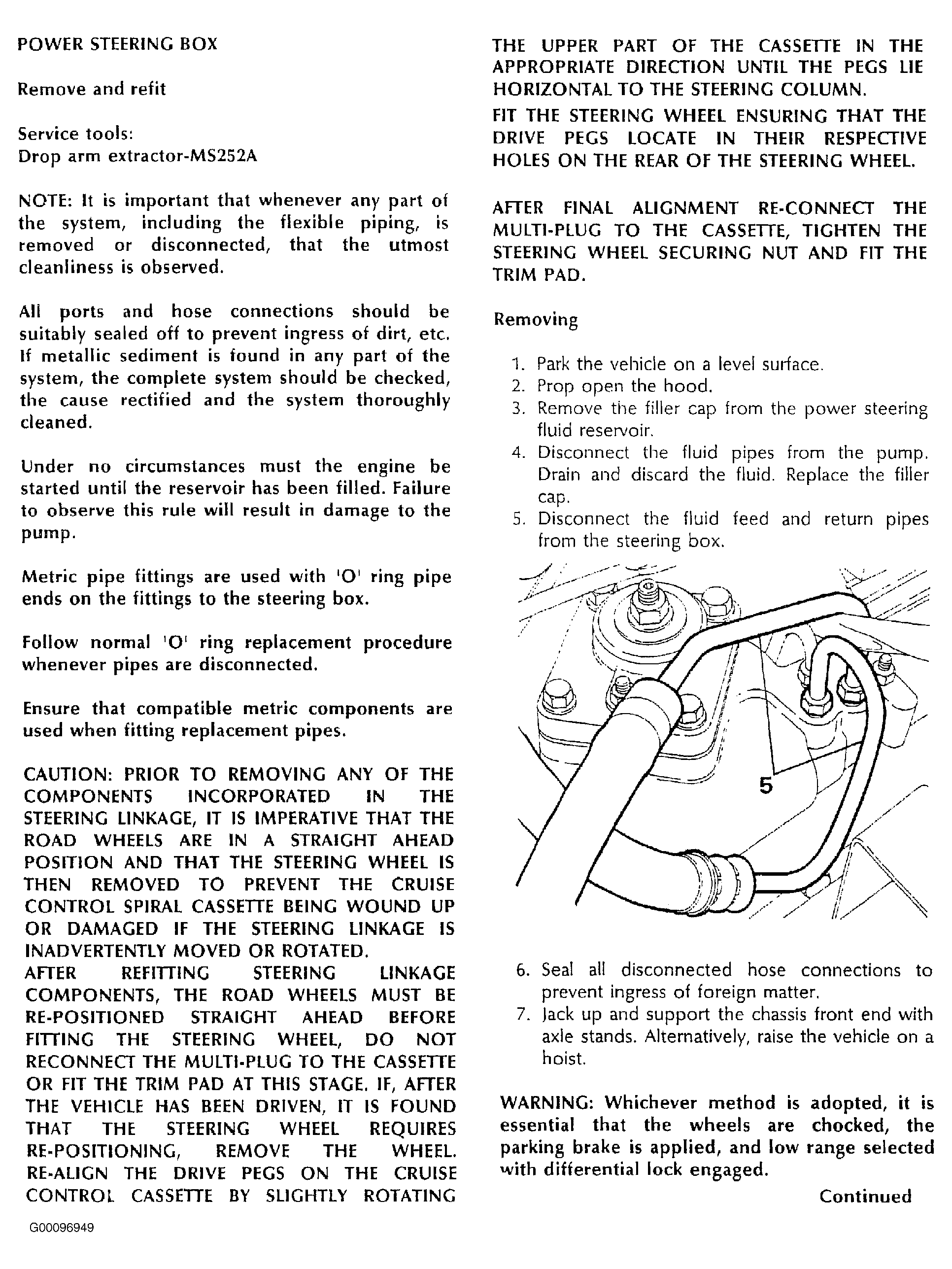

Fig 1: Removing & Installing Power Steering Box (1 of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.

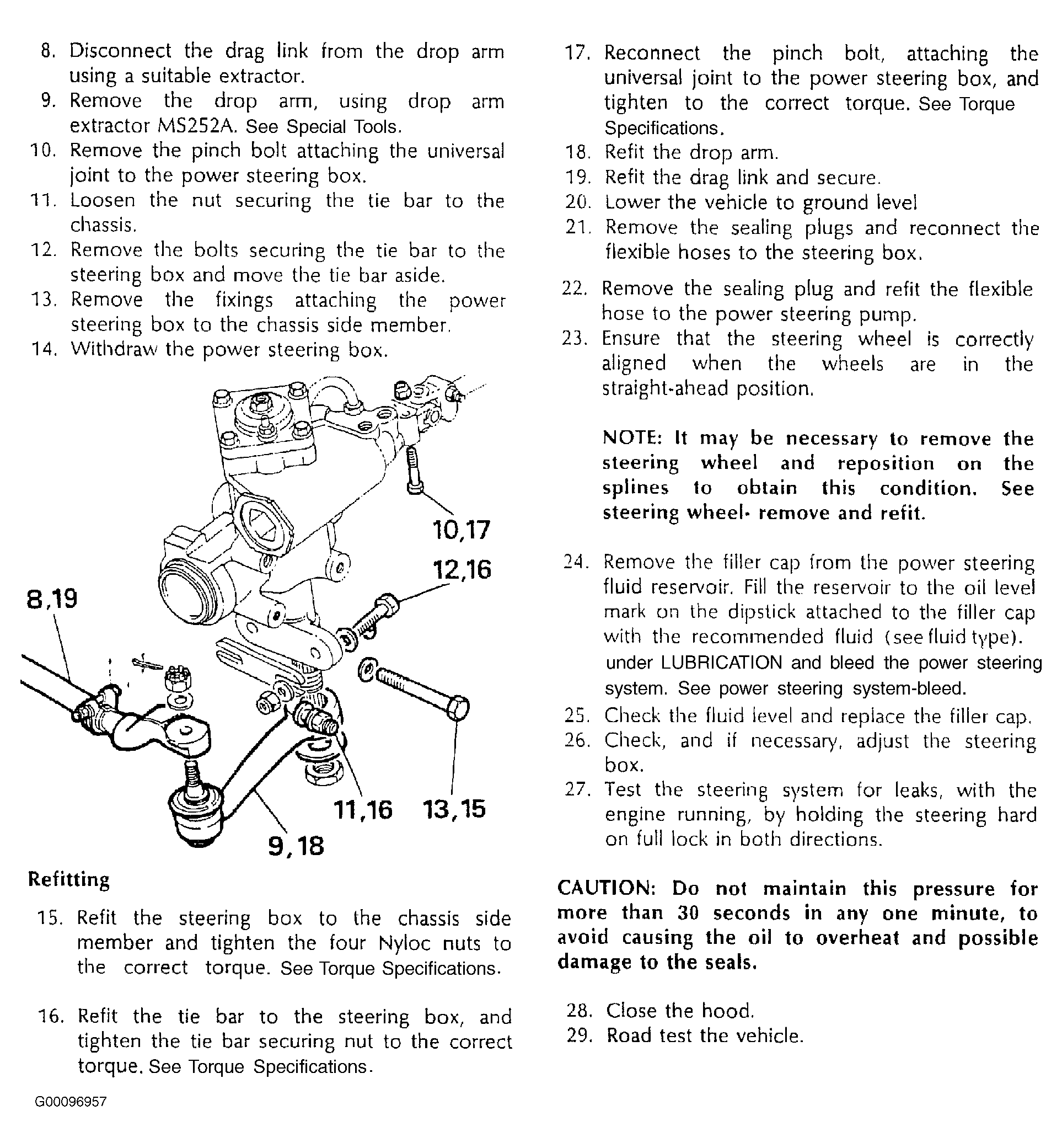

Fig 2: Removing & Installing Power Steering Box (2 of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
