Relays & Fuses

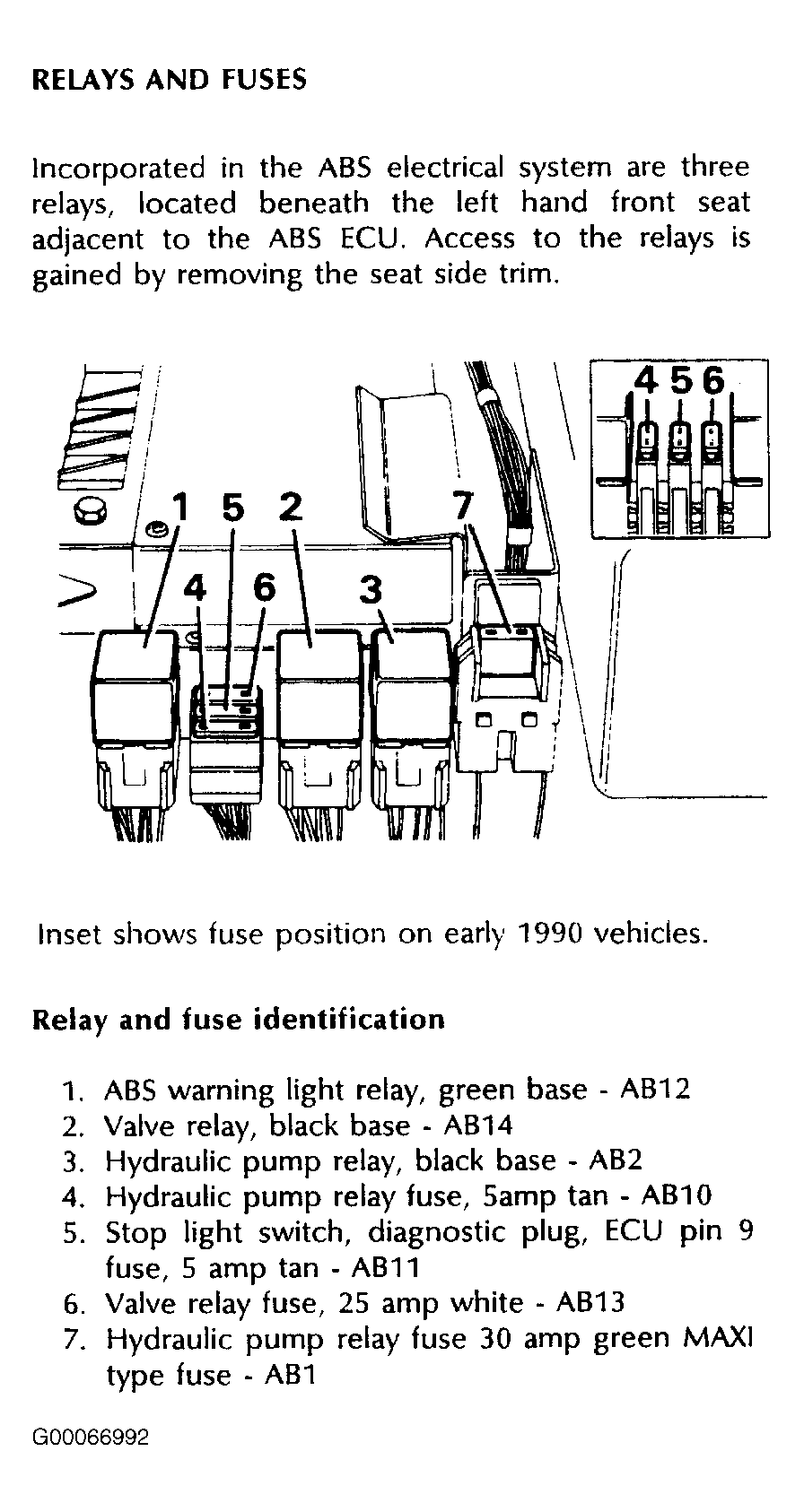

Fig 1: Relay & Fuse Locations
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
