Radio Frequency System

The RF system uses four frequencies according to market. If the coaxial aerial is not fitted system performance will be impaired. Both ECU and handset have a color coded label. See Fig 1 .

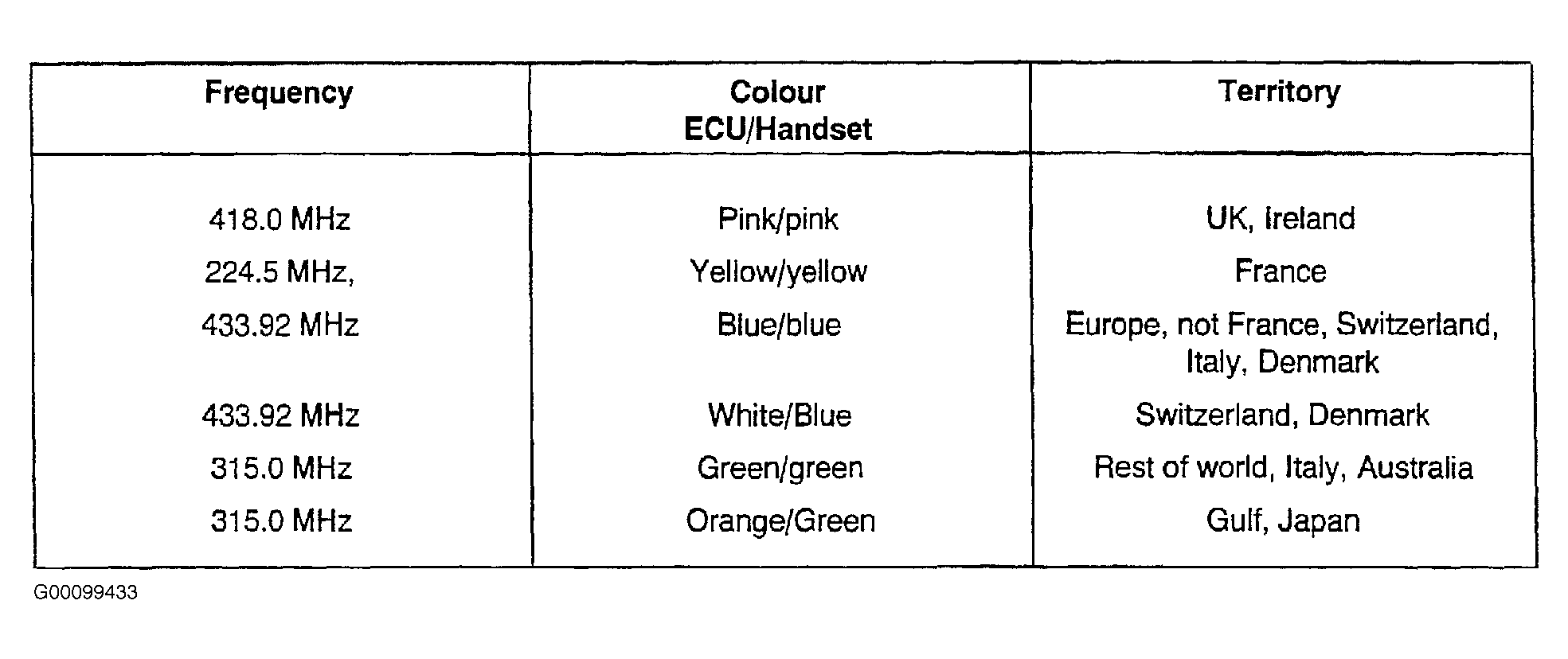

Fig 1: Identifying System Radio Frequency
G00099433Courtesy of LAND ROVER NORTH AMERICA, INC.
