Code 12: Mass Airflow Sensor

Test the mass airflow sensor, see Fig 1 -Fig 3 . After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas diagnostic equipment.

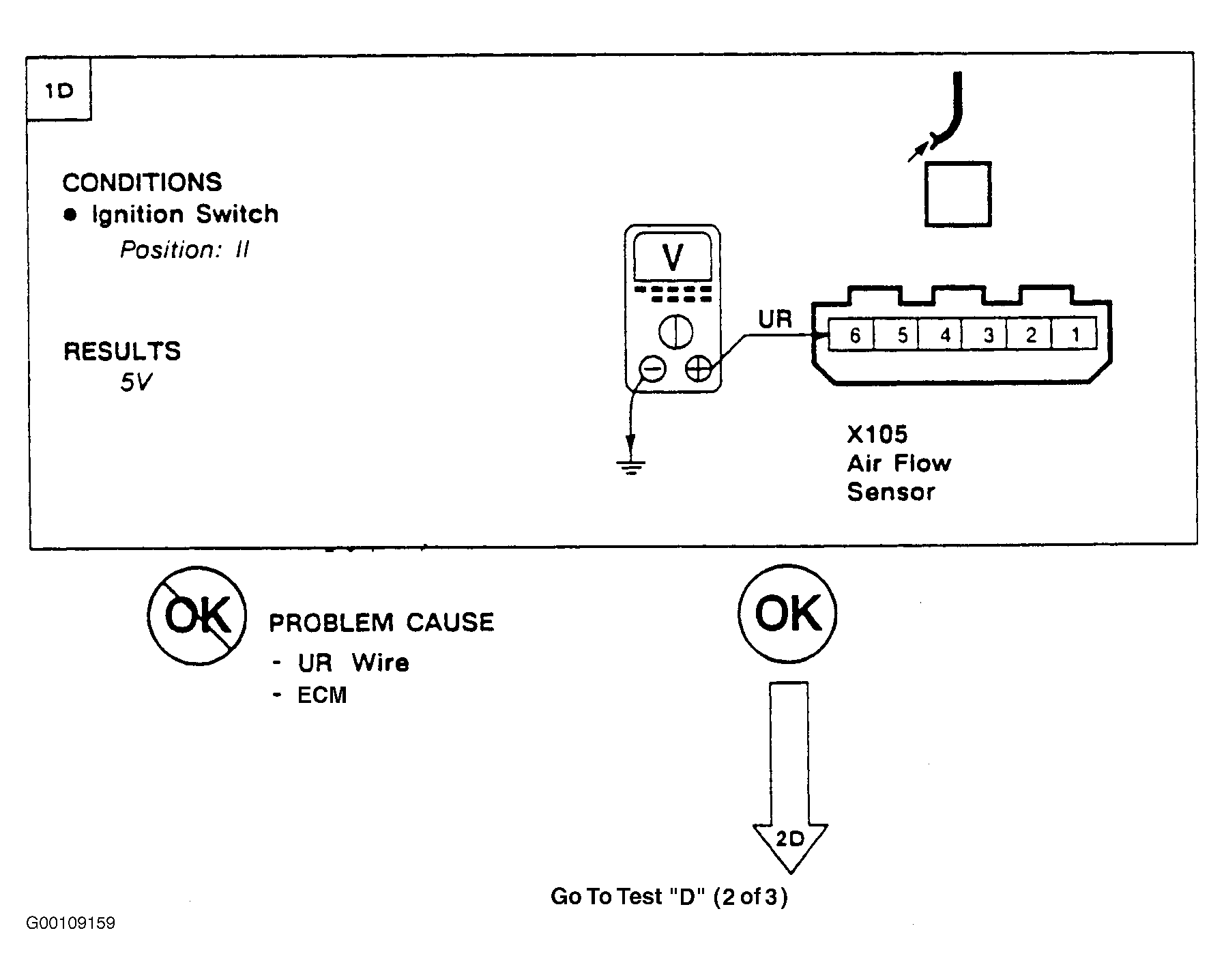

Fig 1: Test "D" (1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

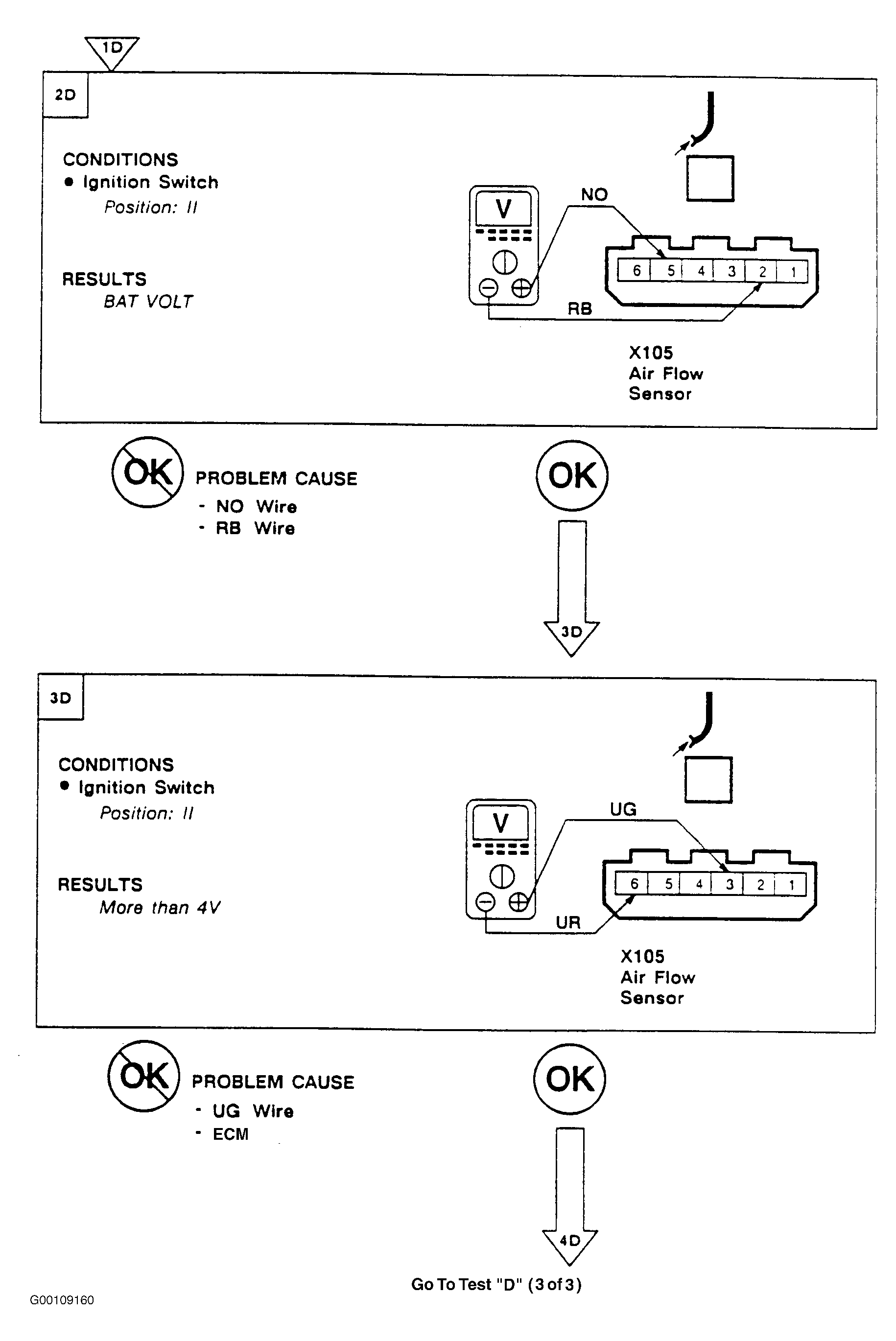

Fig 2: Test "D" (2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

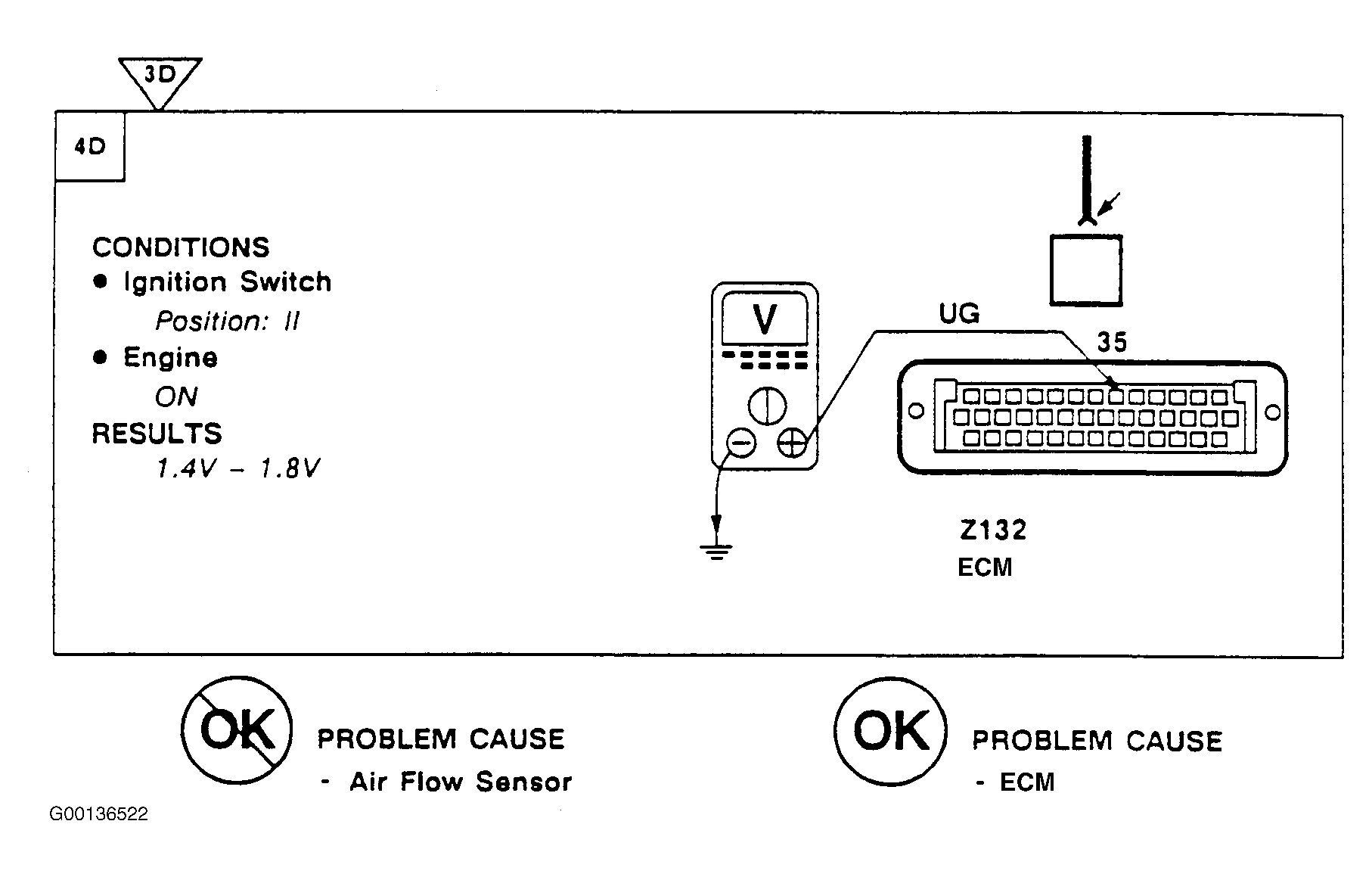

Fig 3: Test "D" (3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.
