Distributor, Ignition

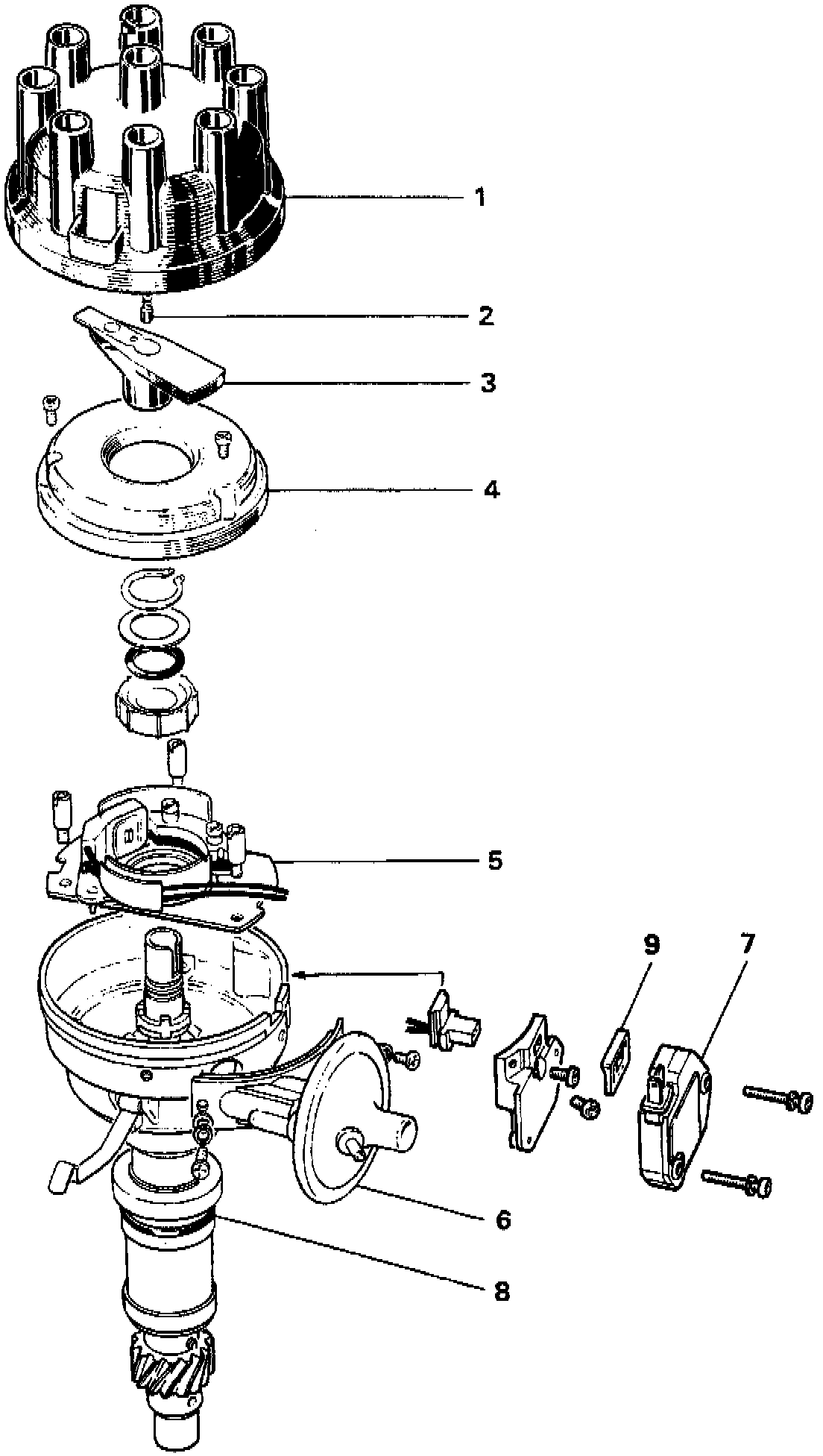

DISTRIBUTOR-LUCAS 35 DLM8

Service Parts





1. Cap
2. HT brush and spring
3. Rotor arm
4. Insulation cover
5. Pick-up module and base plate assembly
6. Vacuum unit
7. Amplifier module
8. O-ring oil seal
9. Gasket
