Symbols

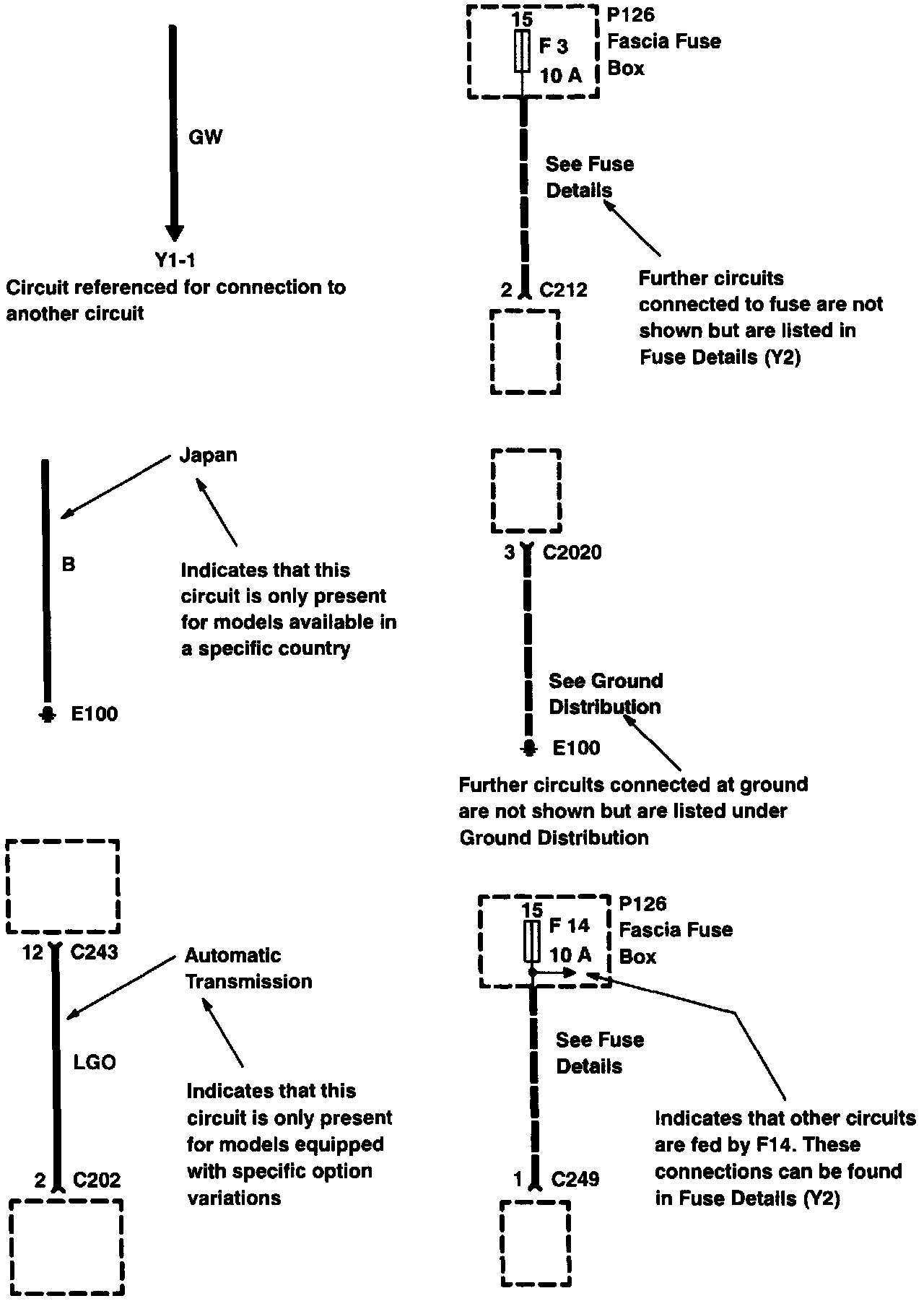

Symbols Part (1 0f 5):

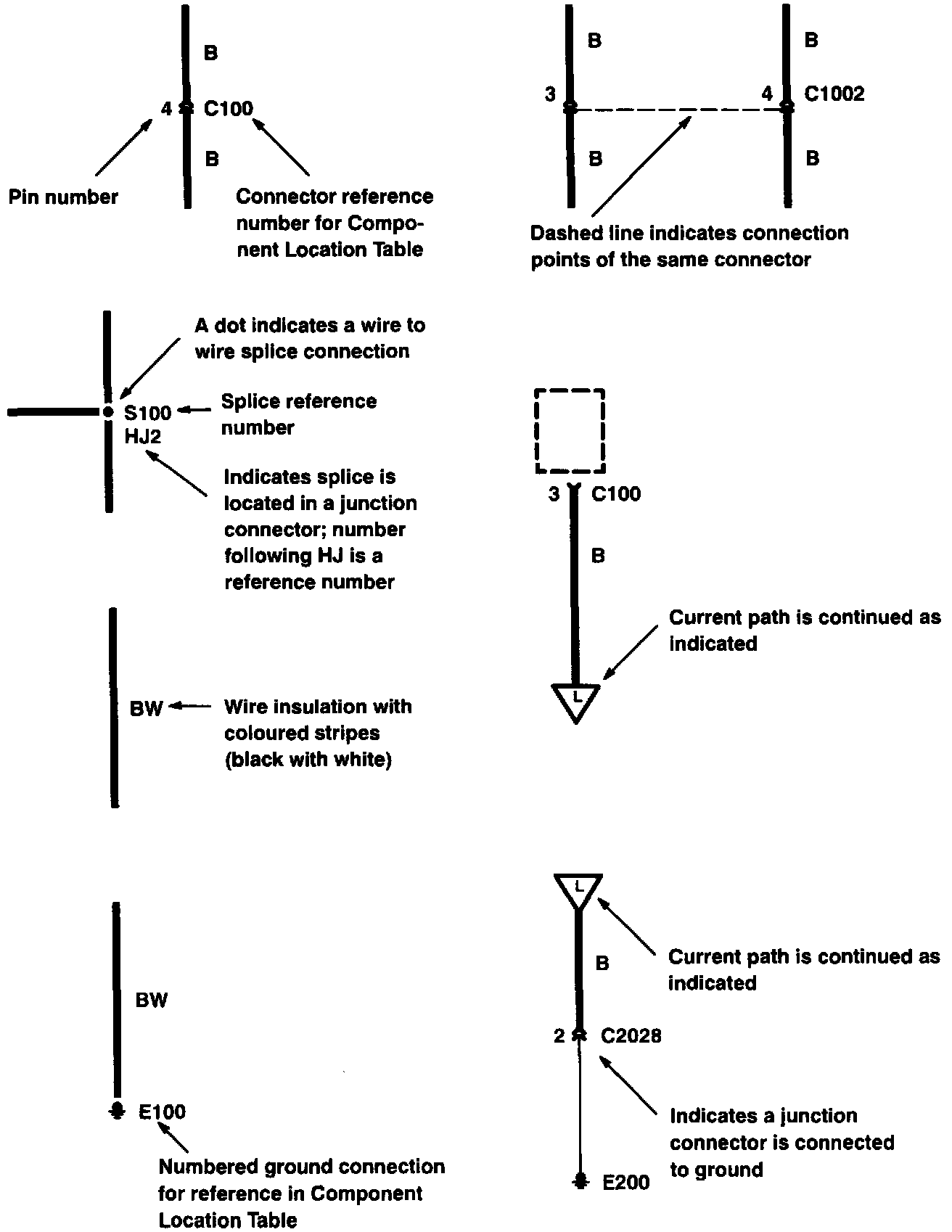

Symbols Part (2 0f 5):

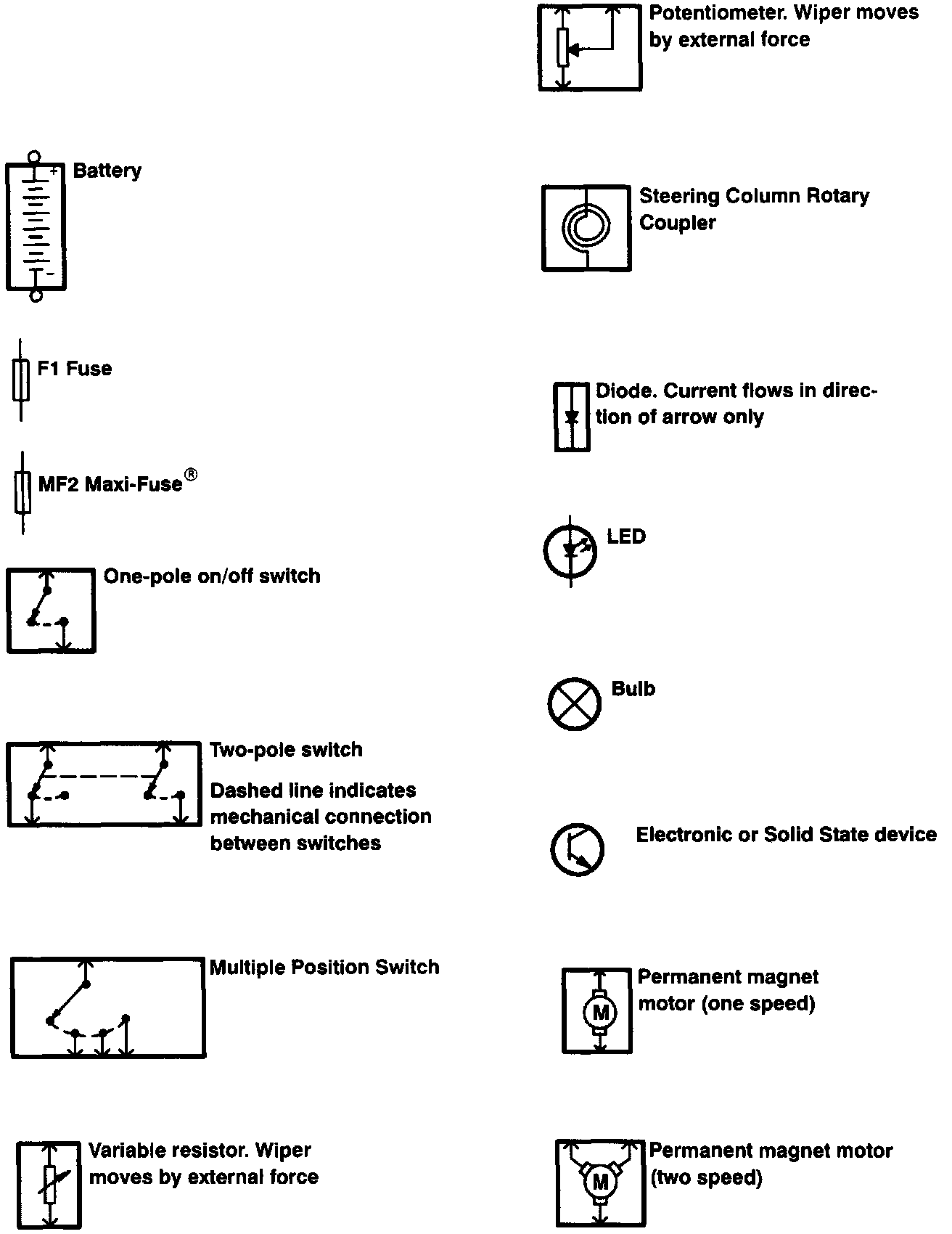

Symbols Part (3 0f 5):

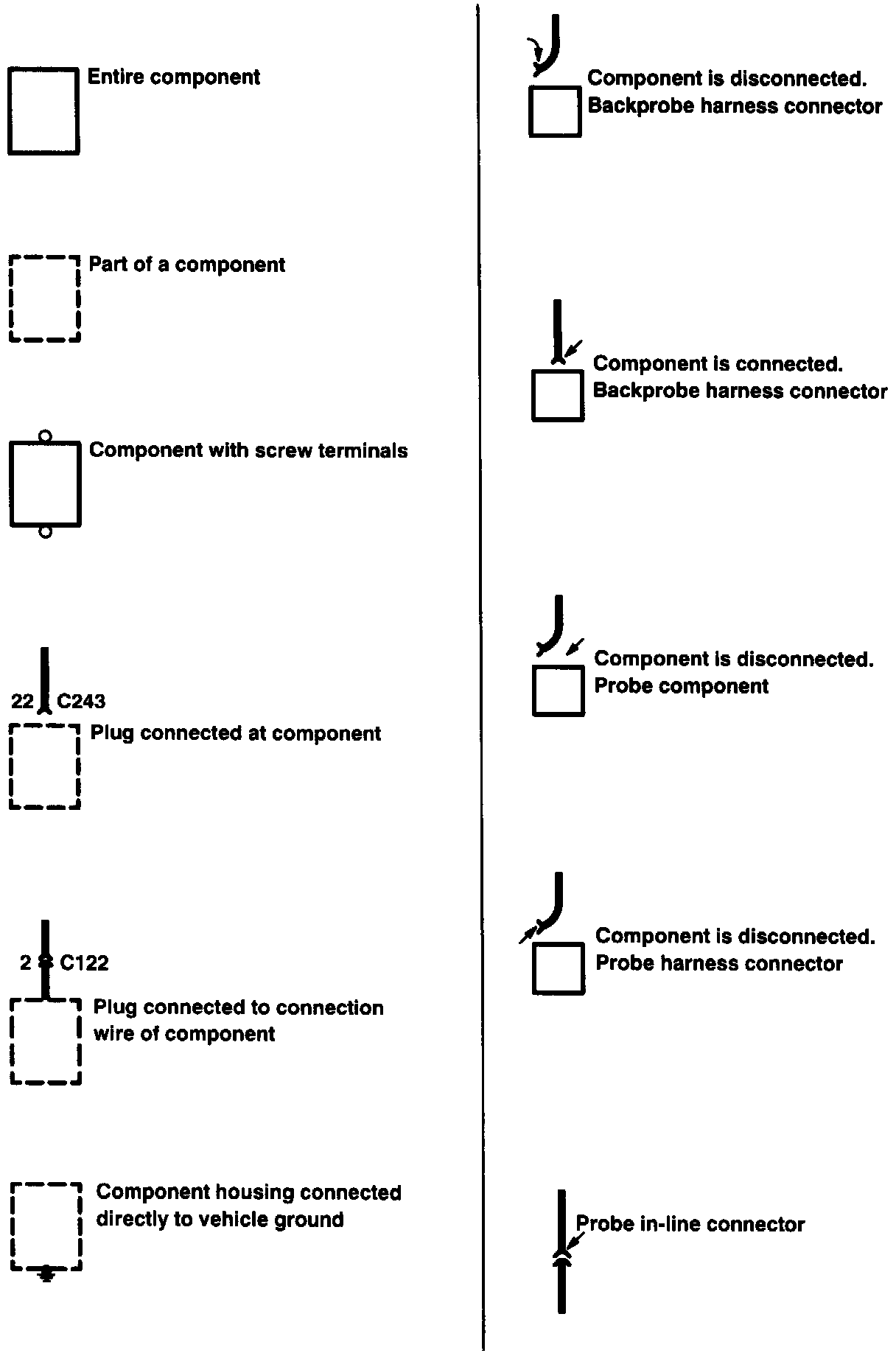

Symbols Part (4 0f 5):

Symbols Part (5 0f 5):

The abbreviation and symbols explained here are used throughout the manual; it is necessary to know what they mean in order to use the diagrams effectively.
