AC control system component layout

WARNING: This page is about a different car, the 2004 Land Rover Discovery, 2003 Land Rover Discovery, and 2002 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.

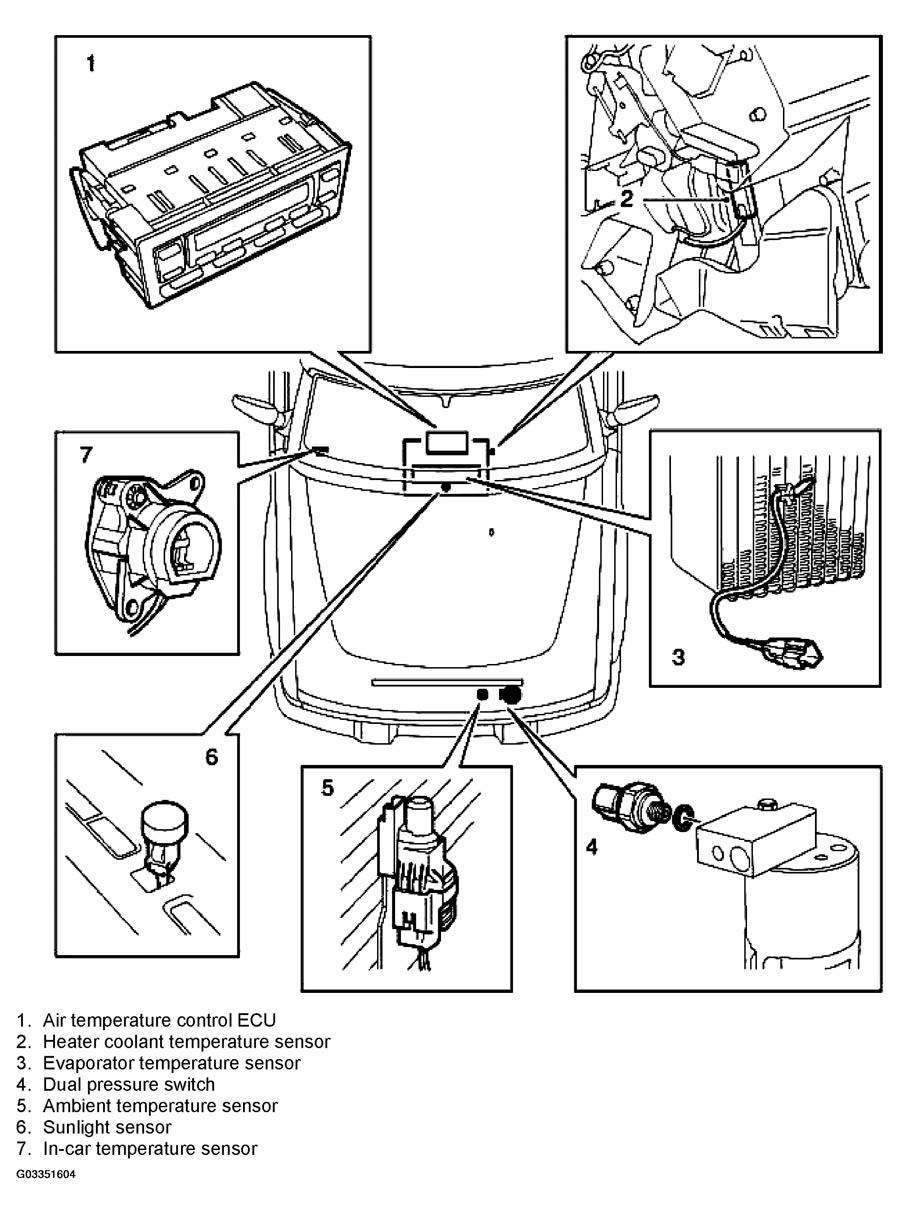

Fig 1: Identifying Components A/C Control System

Courtesy of LAND ROVER NORTH AMERICA, INC.
