Drop Arm - Steering Box: Removal

  1. Remove steering box for V8 models. See POWER STEERING BOX - V8 .
  2. Secure steering box in vice. See Figure.
  3. Release drop arm nut lock washer.
  4. Loosen but do not remove nut securing drop arm.

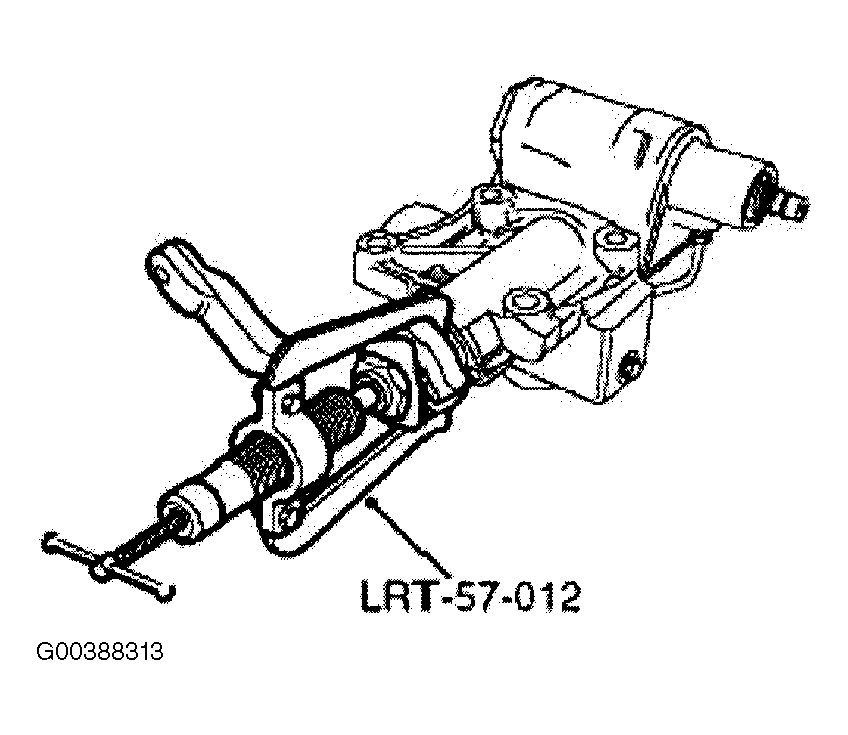

  5. Using LRT-57-012 release drop arm.
  6. Remove nut and lock washer.
  7. Remove drop arm.
