Catalytic Converter: Service and Repair

Catalyst Heat Shields

Service repair no - 17.50.05

Remove
1. Remove exhaust front pipe.

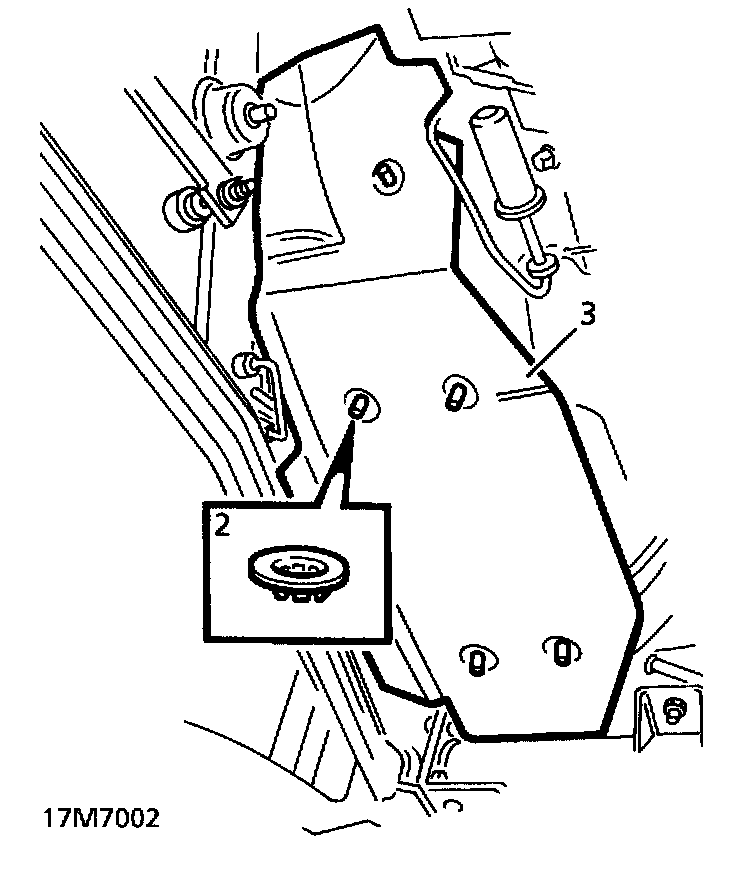

2. Remove 5 retaining washers securing heat shield to floor pan studs.







3. Remove heat shield. Discard retaining washers.

Refit
4. Reverse removal procedure.
