Ignition Cable: Service and Repair

Service repair no - 18.20.11

Remove

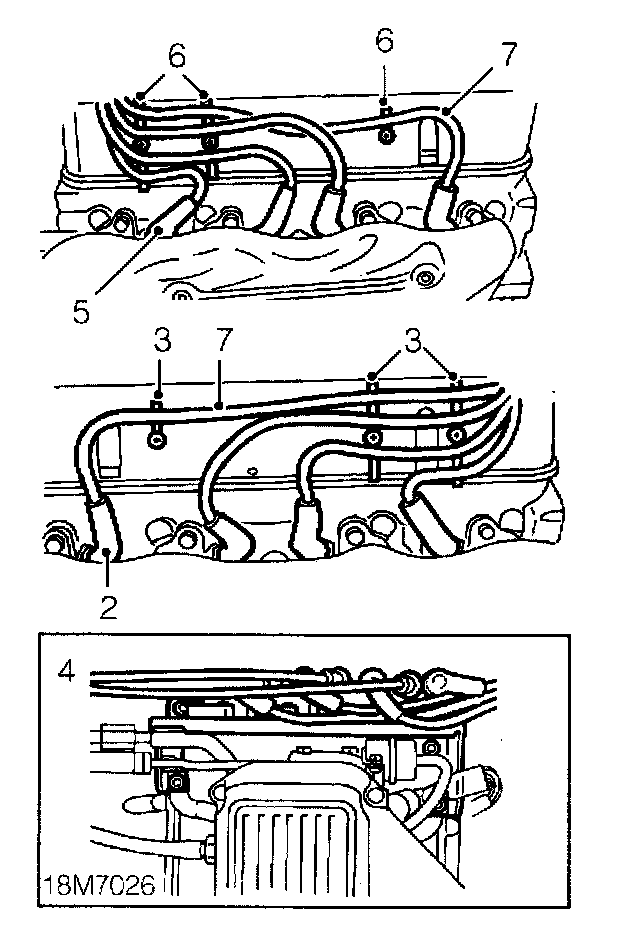

1. Remove air intake hose.







2. Disconnect 4 h.t. leads from LH cylinder head spark plugs.


CAUTION: To avoid damage to h.t. leads, disconnect them by pulling on the rubber boot, NOT the lead.


3. Release h.t. leads from 8 camshaft cover clips.
4. Disconnect 8 h.t. leads from ignition coils.
5. Disconnect 4 h.t. leads from RH cylinder head spark plugs.
6. Release h.t. leads from 8 camshaft cover clips.
7. Remove 8 h.t. leads
8. Remove 4 clips securing h.t. leads to each other.

Refit
9. Position h.t. leads and connect to ignition coils.
10. Connect h.t. leads to spark plugs.
11. Engage h.t. leads to camshaft cover clips.
12. Fit clips securing h.t. leads to each other.
