Technical Data

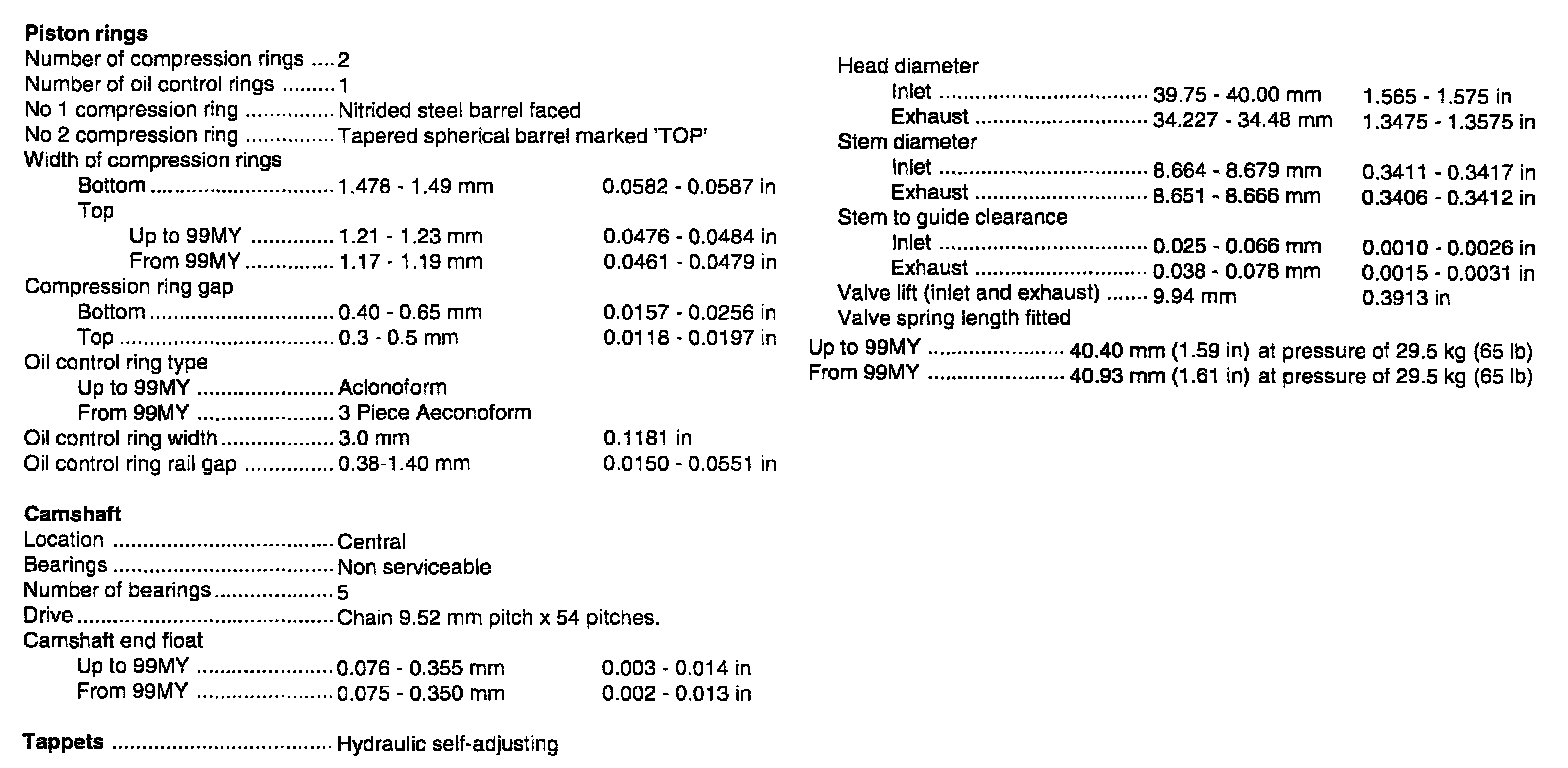

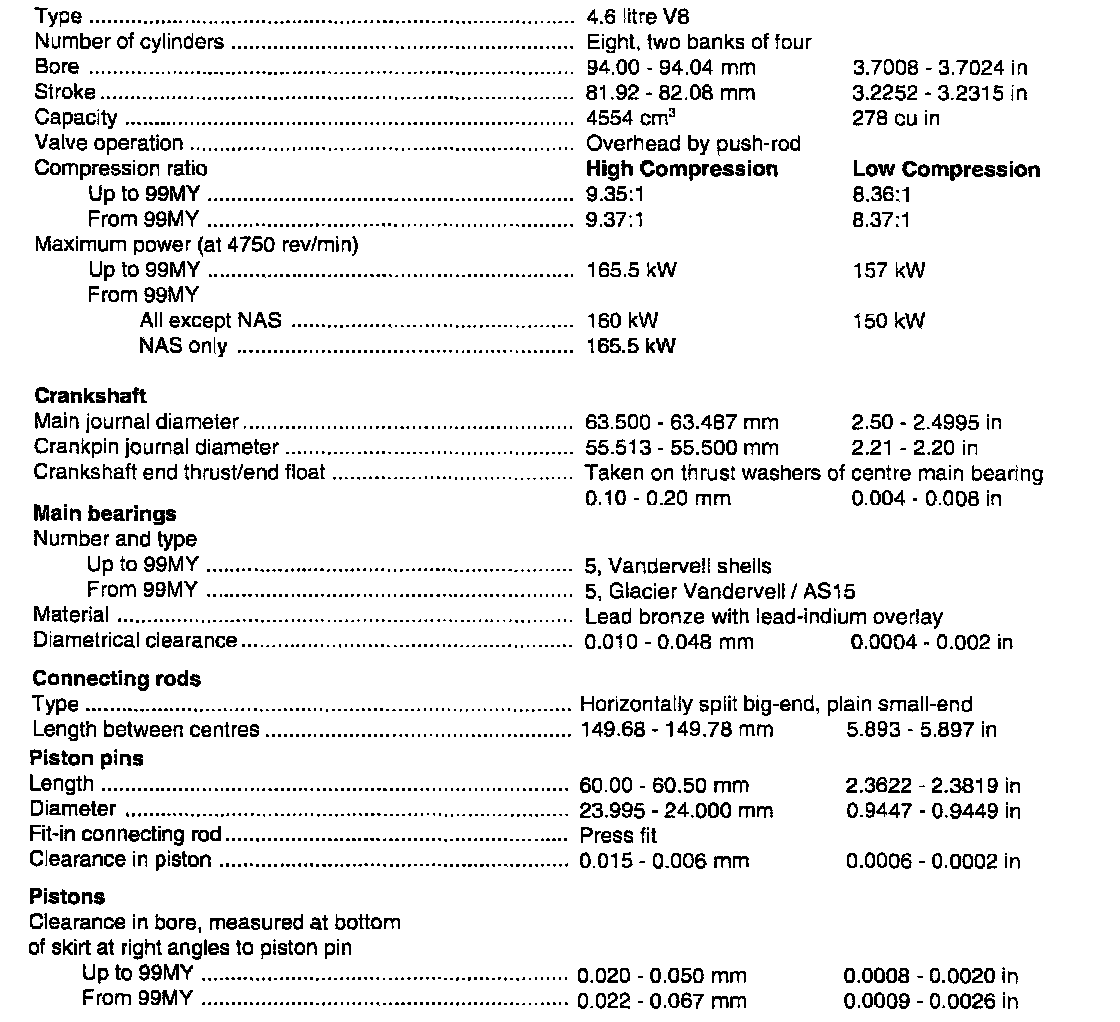

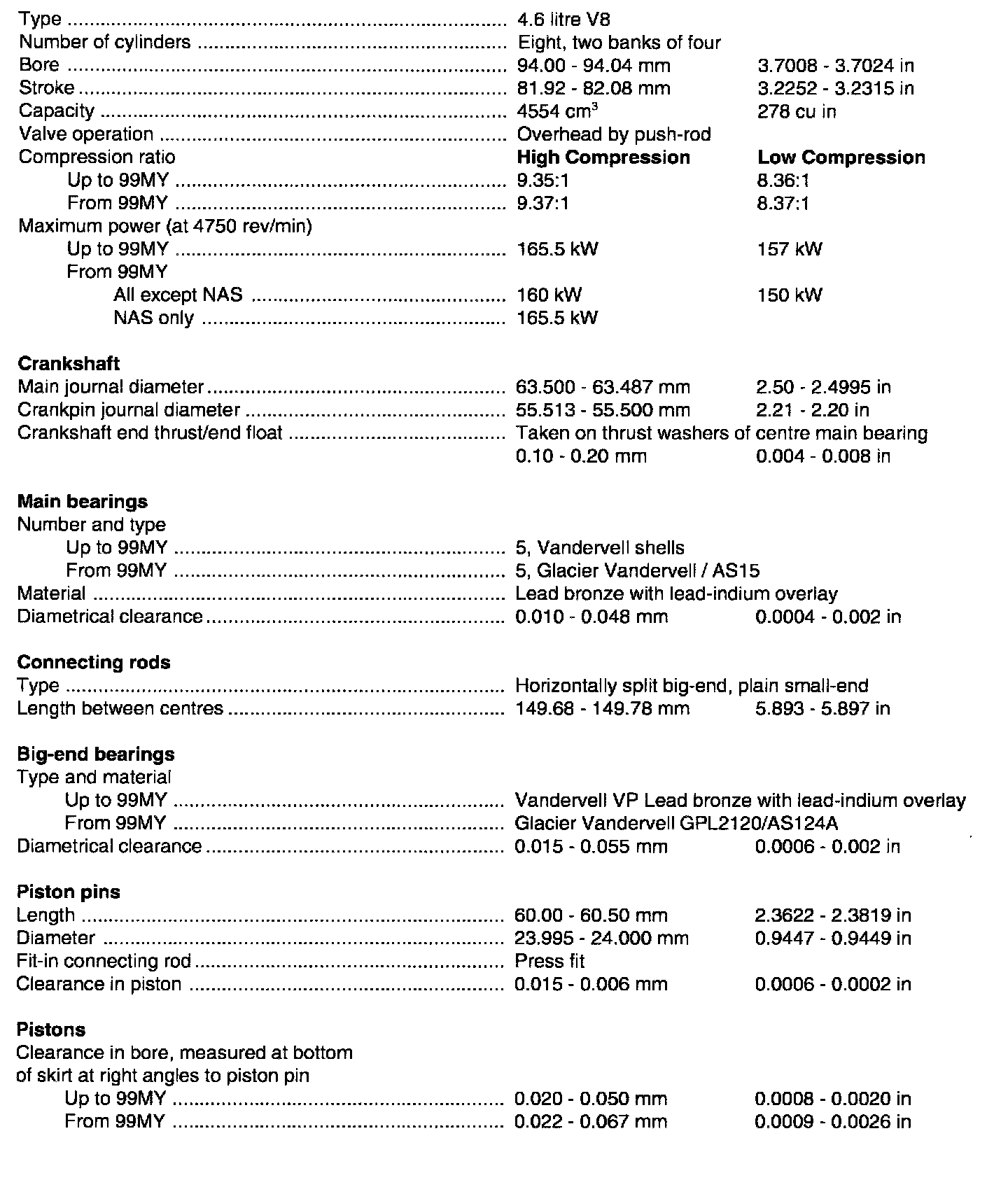

4.6L Engine Technical Data:

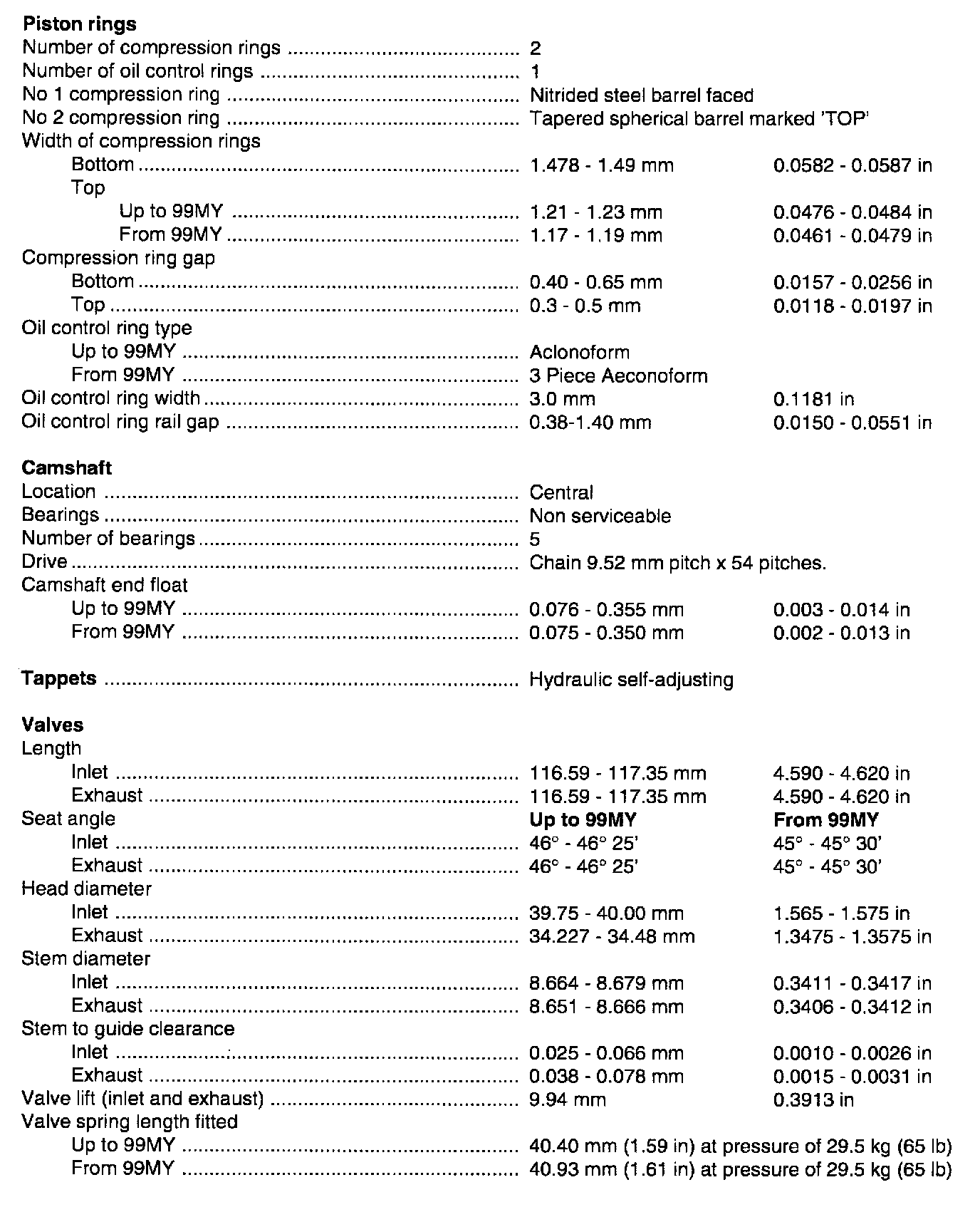

4.6L Engine Technical Data Cont.:



4.6L Engine Technical Data Cont.:

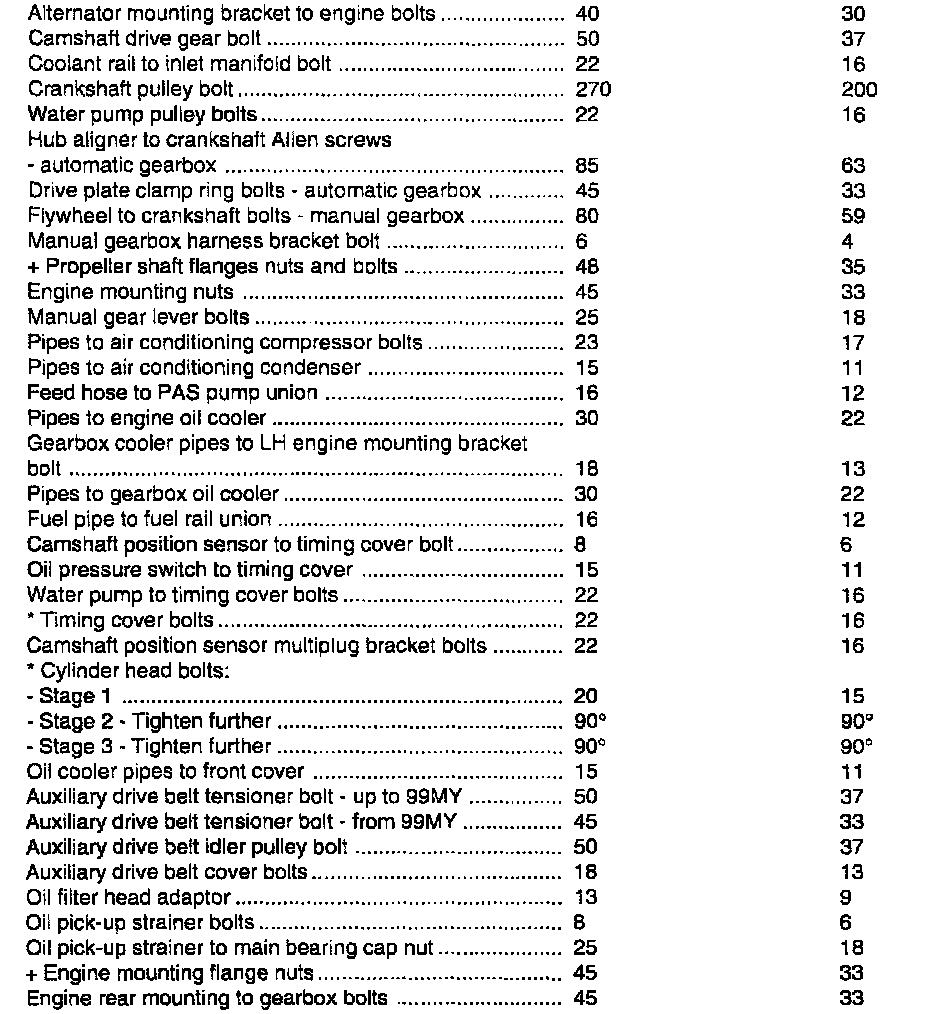

4.6L Engine Tightening Torque:

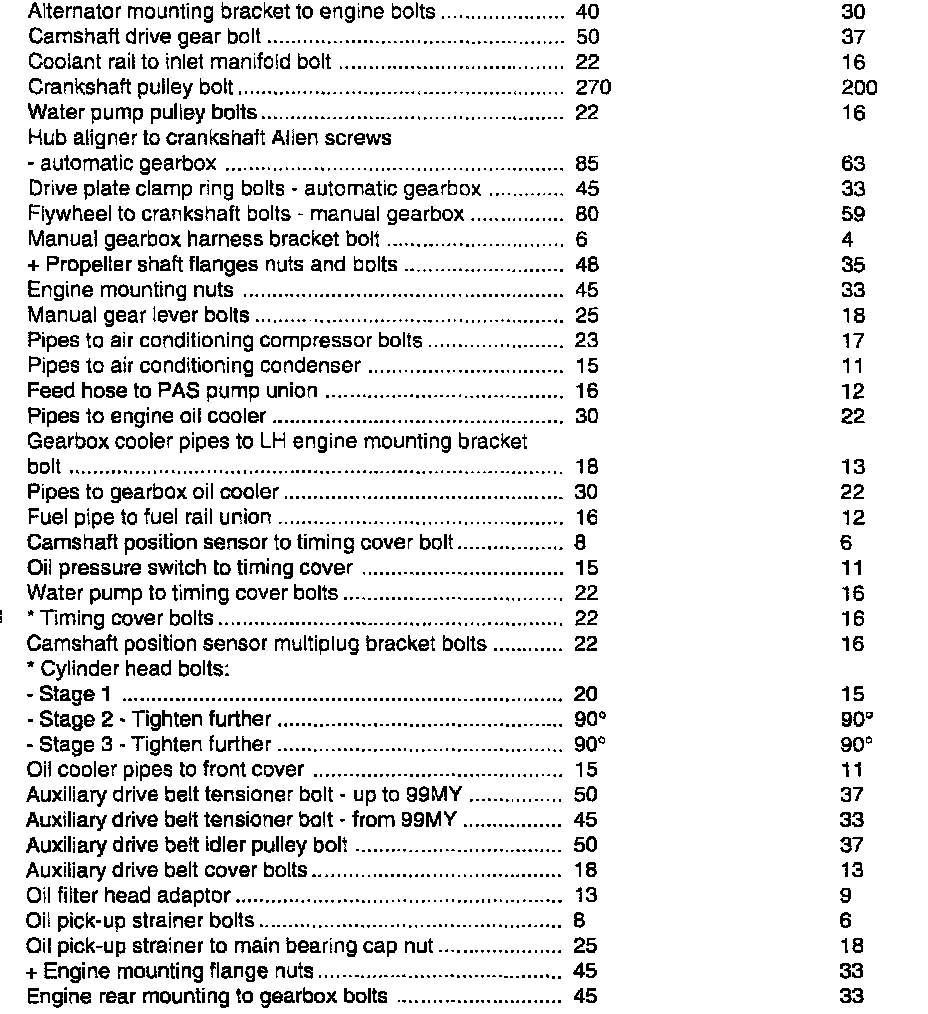

4.6L Engine Tightening Torque Cont.:



V8 Cyl. Head Sequence & Torque:
