Electric Window Switch Pack


Electric Window Switch Pack

Service Repair No - 86.25.08

Remove

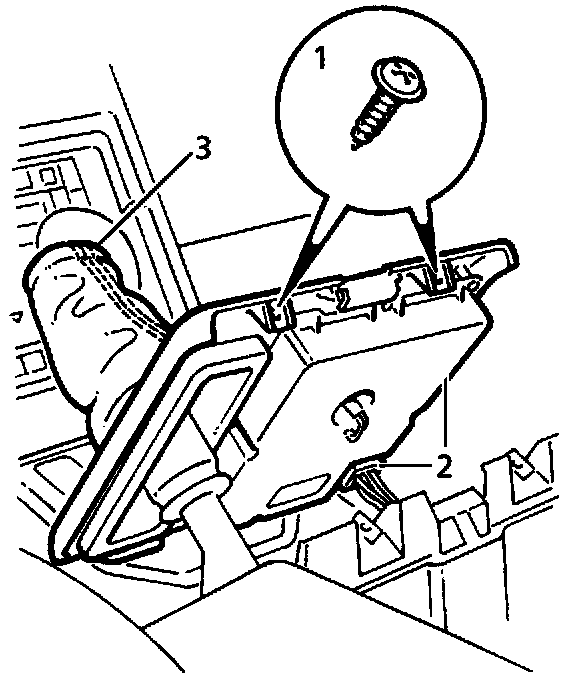

1. Remove 2 screws securing switch pack to center console.
2. Release switch pack. Disconnect multiplug.
3. Withdraw gaiter over handbrake. Remove switch pack.

Refit
4. Reverse removal procedure.
