Fault Code 01: Transmission Relay Control (Relay Sticks, Short Circuit)/Solenoid Valves Power Supply Relay Sticking Open Or Short Circuit

NOTE: For circuit reference, see WIRING DIAGRAMS .

This fault code will cause the transmission to switch to limp home mode in low and high ranges. It will also cause a shift in pressure to maximum and harsh gear shifts/engagement.

For fault code description and diagnostic test procedure, see Fig 1 and Fig 2 . Freeze frame variables are AN6, AN7 and UBATT. See TEST PROCEDURE under SELF-DIAGNOSTIC SYSTEM.

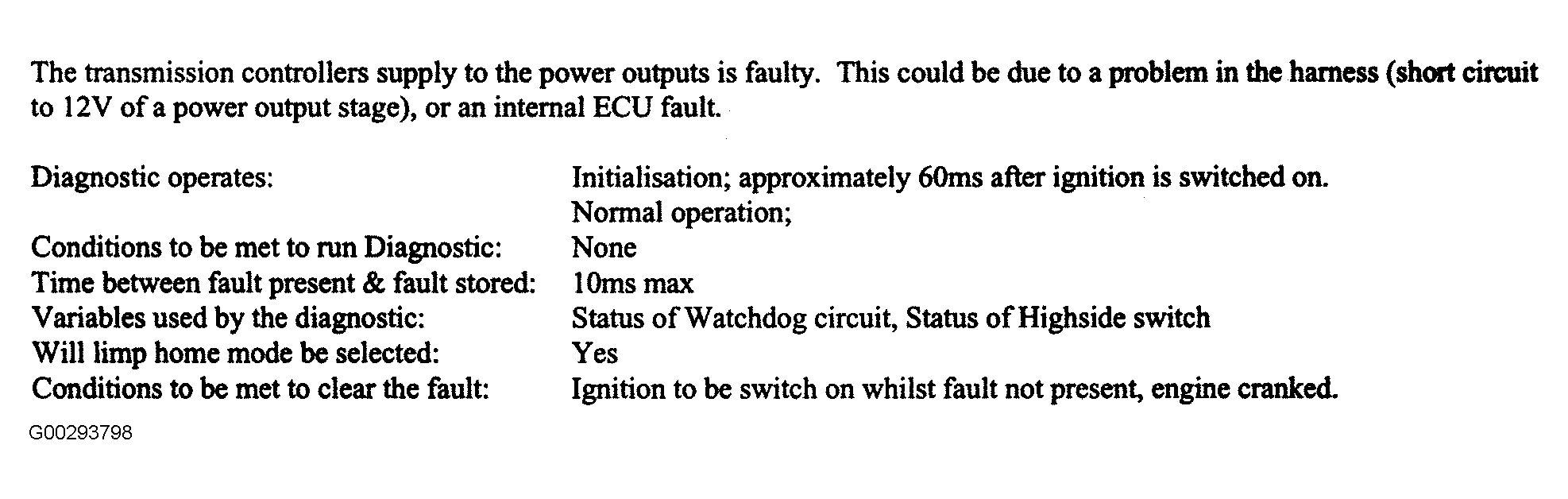

Fig 1: Fault Code 01 Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

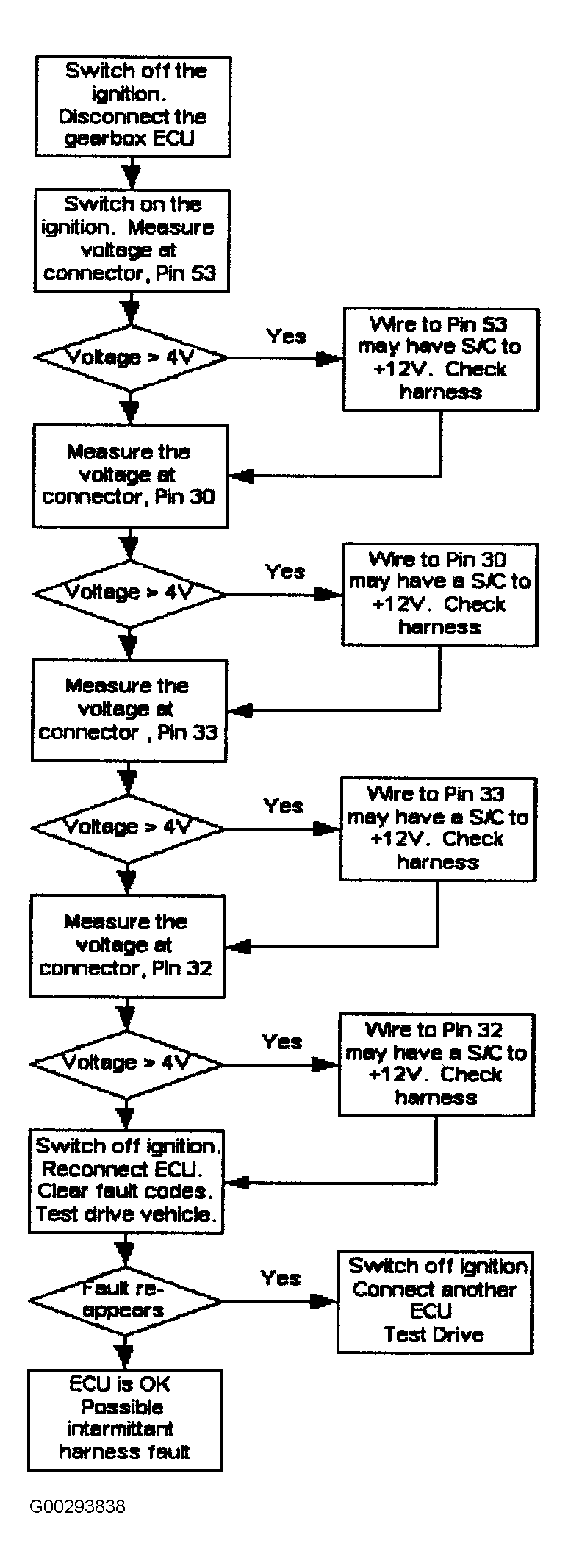

Fig 2: Fault Code 01 Diagnostic Test Procedure

Courtesy of LAND ROVER NORTH AMERICA, INC.
