Multi-Function Display Audio Control Diagram-Up to 2005 MY

WARNING: This page is about a different car, the 2005 Land Rover Range Rover, 2004 Land Rover Range Rover, 2003 Land Rover Range Rover, and 2002 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

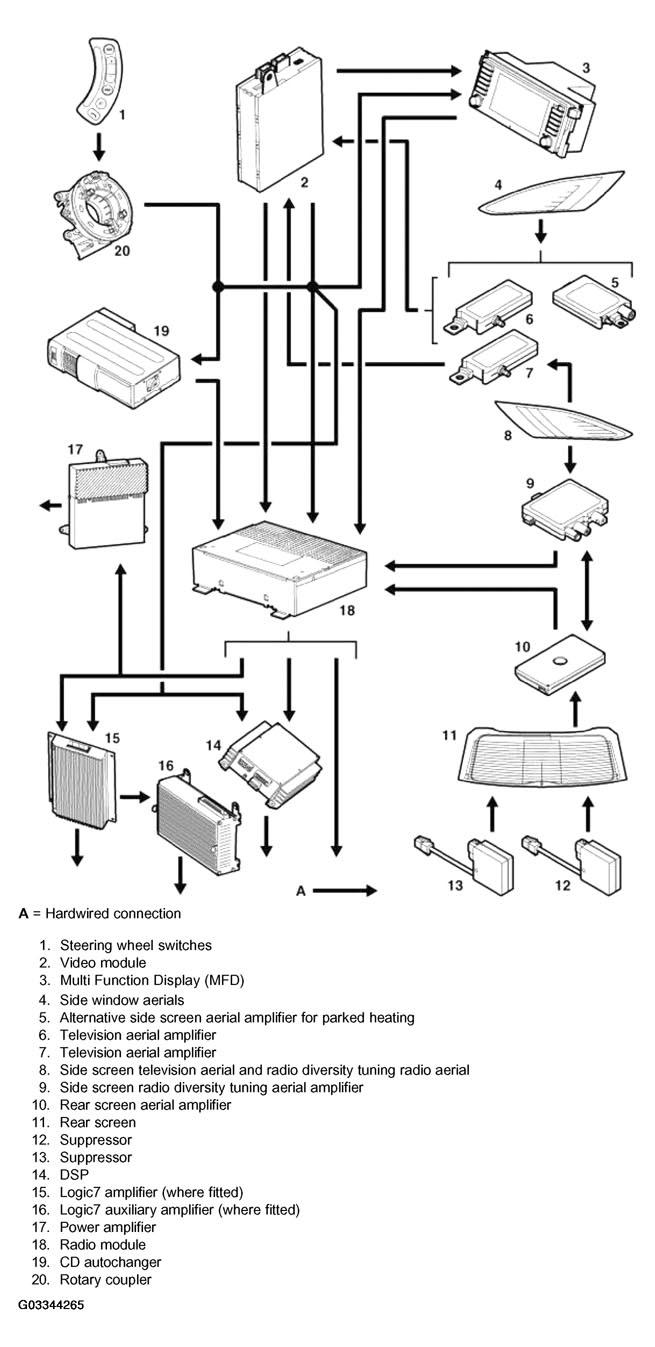

Fig 1: Identifying Multi-Function Display Audio Control Diagram

Courtesy of LAND ROVER NORTH AMERICA, INC.
