Inoperative Cooling Fan Control Unit (26/01/03/NAS)
Publication date: 2003-01-17Reference number: 26/01/03/NAS
INOPERATIVE COOLING FAN CONTROL UNIT
TECHNICAL SERVICE BULLETIN
Reference Number(s): 26/01/03/NAS, Date of Issue:
January 7, 2003
| LAND ROVER: | Freelander (LN) |
| ISSUE: | 1 |
| SECTION: | Cooling System |
| AFFECTED VEHICLES: | Freelander (LN) - 2A360097 to 2A369999, 2A200000 to 3A232272 |
NOTE:
The Freelander VIN series are progressing in a downward direction. This means that 300,000 series vehicles have been manufactured before 200,000 series vehicles.
SITUATION
COOLING FAN CONTROL UNIT NOT OPERATING CORRECTLY
The customer may complain about overheating symptoms, or that cooling fans appear to be operating continuously.
RESOLUTION
VERIFY COOLING FAN CONTROL UNIT OPERATION AND REPLACE IF INDICATED
Conduct the test verification of fan control unit operation outlined in this bulletin. If indicated by those tests, replace the control unit with the Part Number specified in PARTS INFORMATION .
PARTS INFORMATION
NOTE:
Part Number PGW000011 has not yet been added to the "Microcat" electronic parts catalog system. This component is the ONLY part that can be used as a fan controller replacement on North American Specification Freelander vehicles.
PARTS INFORMATION
| Part Number | Description | Qty |
|---|---|---|
| PGW000011 | Fan controller and harness assembly | 1 |
WARRANTY CLAIMS
WARRANTY CLAIMS
| SRO | Description | Time |
|---|---|---|
| 26.90.04 | Determine cooling fan operation | 0.30 hrs. |
| 26.25.43 | Install cooling fan control unit if | 0.30 hrs. |
FAULT CODE: D
Normal warranty policy and procedures apply.
Material allowance is included in labor operation.
REPAIR PROCEDURE

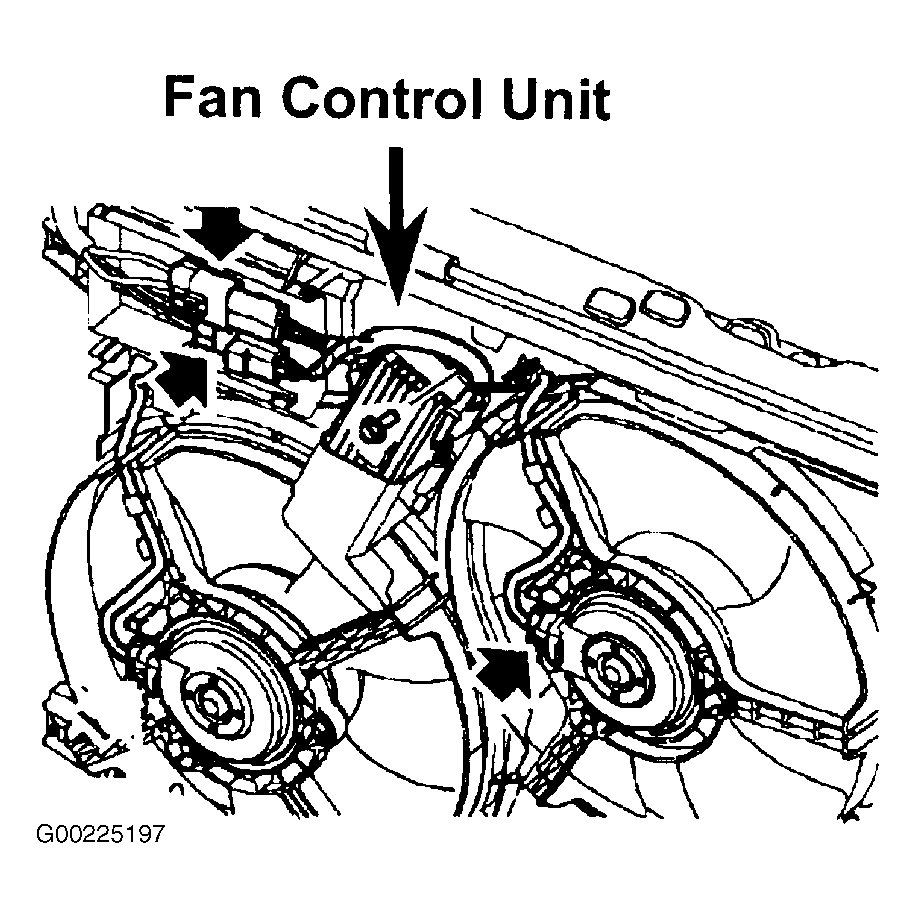

- Disconnect the cooling fan multi-plugs.
- Thoroughly clean the multi-plug connectors.
- Connect the cooling fan multi-plugs.
- Ensure the cooling fans are operating at slow speed by starting the engine and switching on the A/C.
- Connect TestBook/T4 to the vehicle and load disc DRGTL23 or a later version.
- Follow the on screen instructions and select 'System Diagnostic'.
- Follow the on screen instructions and select 'Engine Management'.
- Follow the on screen instructions and select 'Force Output'.
- Follow the on screen instructions and select 'Cooling Fan'.NOTE: Forced fan speed output for NAS specification vehicles are a multiple speed test.
- Follow the 'Force Output' screen prompts.
- If the cooling fans do not operate during any of the tests detailed above, refer to RAVE Workshop Manual section 26.25.43 and replace the fan controller (PGW000011).
