70.35.42 Switch - stop light: Remove

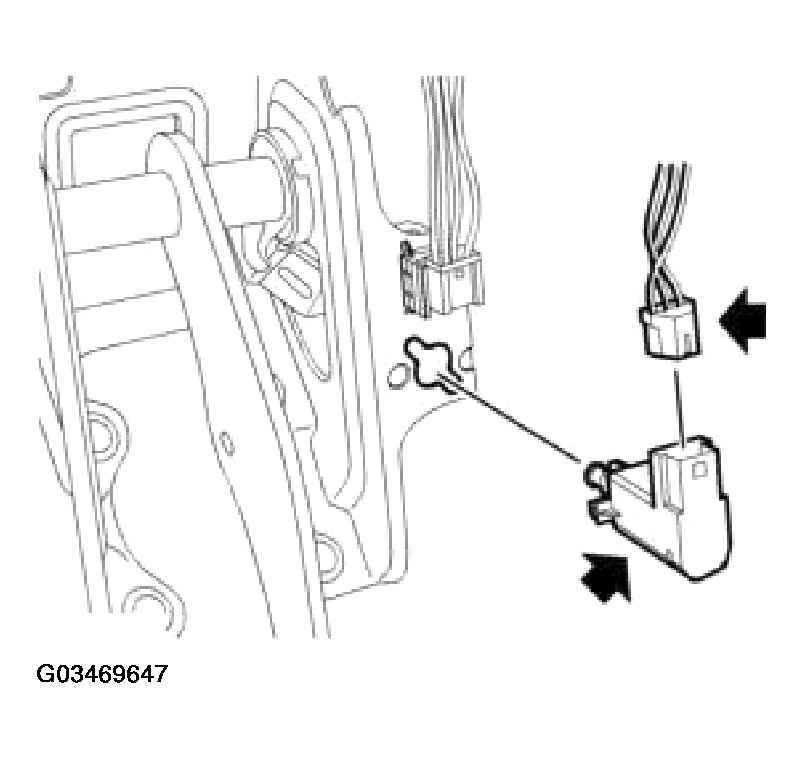

Fig 1: Disconnecting Brake Light Switch Multiplug
G03469647Courtesy of LAND ROVER NORTH AMERICA, INC.
  1. Disconnect brake light switch multiplug.
  2. Release bayonet fitting on brake light switch and remove switch.
